Superior Pump 1/2 HP 120V Electric Pre-Assembled Simplex Sewage Pump Kit, 80 GPM
Online Only
Superior Pump 1/2 HP 120V Electric Pre-Assembled Simplex Sewage Pump Kit, 80 GPM
Item # 1176488
$399.99
or
or
Neighbor’s Club Members earn points with purchases.
Online Only
Superior Pump 1/2 HP 120V Electric Pre-Assembled Simplex Sewage Pump Kit, 80 GPM
Item # 1176488
$399.99
or
or
$34/mo.† suggested payments with 12 Months Financing or earn $19 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Superior Pump builds pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy duty stainless steel jacketed shaft seals, double o-ring seals on motor plate, and electronically controlled split capacitors. Superior Pump model 93015, 1/2 HP cast iron submersible sewage pump kit, with tethered float switch, will move water up to 4800 gal. per hour. The easy to assemble kit includes an 18x30 in. basin, premium structural foam cover, air tight molded reusable PVC seal, 4 inlet with snap-in-hub, 2 in. rubber boot check valve and includes 2 in. PVC pipe. This kit is UL/cu listed and CSA certified and backed by a 1 year warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Pump - rugged cast iron construction, tethered float switch, 2 In. NPT discharge, handles 2 In. solids, non-clogging vortex impeller, 10 Ft. power cord with piggy back plug, continuous duty thermally protected split capacitor motor
- Pumps up to 4800 gal. per hour, pumps water up to 25 vertical feet
- Basin - structural foam construction, corrosion resistant, size 18 In. x 30 In., 4 In. inlet hub, 2 In. discharge and vent, 30 gal. capacity, built-in torque stops
- Premium structural foam cover with 8 bolt configuration, air tight molded reusable PVC seal
- Check valve features, heavy duty rubber boots, stainless steel clamps, full flow design, 2 in. connections
- Snap-in-hub features, high quality rubber construction, fits 4 In. DWV schedule 40/80 pipe, water and vapor tight seal
- Easy to assemble
- 1 Year warranty
- Built in thermal overload protection for safety
- Permanent split capacitor continuous duty motor
- 1 Year Warranty
| Brand | Superior Pump |
|---|---|
| Country of Origin | Imported |
| Amperage | 7.6A |
| Basin Diameter | 18 in. |
| Body Material | Cast iron |
| Compatible Pipe Material | ABS |
| Discharge Connection | Threaded Female |
| Discharge Port Diameter | 2 in. |
| Discharge Rate at 0 ft. | 80 GPM |
| Discharge Rate at 10 ft. | 60 GPM |
| Engine Brand | N/A |
| Engine Displacement | 0 cc |
| Features | Self Priming, Submersible |
| Fuel Capacity | 0 oz. |
| Horsepower | 12 HP |
| Hose Diameter | 0 in. |
| Impeller Material | Thermoplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 2 in. |
| Maximum Flow Rate | 80 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Pressure | 10.8 PSI |
| Maximum Operating Temperature | 120degF |
| Maximum Solids Diameter | 2 in. |
| Maximum Suction Lift | 25 ft. |
| Minimum Operating Pressure | 10.8 PSI |
| Minimum Operating Temperature | 32degF |
| Oil Capacity | 20 oz. |
| Power Cord Length | 10 ft. |
| Power Type | Electric |
| Product Height | 36 in. |
| Product Length | 22 in. |
| Product Weight | 50 lb. |
| Product Width | 22 in. |
| Pump Mechanism | Centrifugal |
| Motor Type | PSC |
| Switch-Off Height | 8 in. |
| Switch-On Height | 16 in. |
| Voltage | 120V |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 93015 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Can this be used for downspout collection and draining yard
20 days ago1 Answer
- A: Howdy neighbor! No, the Superior Pump 1/2 HP Pre-Assembled Simplex Sewage Pump Kit (Model 92911) is not recommended for downspout collection or draining your yard. While its powerful 80 GPM flow rate and ability to pass 2-inch solids seem ideal, sewage pumps are specifically engineered for indoor, low-cycle residential waste applications and will quickly fail in a yard drainage environment.19 days agoHelpful?
Q: Is this a grinder pump
2 months ago1 Answer
- AI-generatedA: No, this is a sewage pump with a non-clogging vortex impeller that handles 2-inch solids, not a grinder pump.2 months agoHelpful?
Q: How far can it pump the discharge
4 months ago1 Answer
- A: The Superior Pump 1/2 HP 120V Electric Pre-Assembled Simplex Sewage Pump Kit has a maximum vertical lift (head) of 25 feet.4 months agoHelpful?
Q: This can be used between house and septic tank wright
5 months ago1 Answer
- A: Yes, the Superior Pump 1/2 HP Simplex Sewage Pump Kit is specifically designed to transport wastewater and sewage from a home to a septic tank or sewer line when gravity flow is not possible.5 months agoHelpful?
Q: Is this unit intended to be installed in a pit?
11 months ago1 Answer
- A: The basin is a pit, it is designed to be set into the floor or ground11 months agoHelpful?
Q: Is it 220 or 110?
2 years ago1 Answer
- A: Hi, This kit is a 110 Volt system. Thanks2 years agoHelpful?
Q: Will it pump kitchen grease
2 years ago1 Answer
- A: Hi, Here is the information we received from the vendor- "The pump in the 93015 kit is a sewage pump. Grease, when mixed with water can become jelly-like and if a lot of grease is poured in the drain, can clog the pump. Small amounts of grease should be OK but we do not recommend it."2 years agoHelpful?
Q: Do you have to run a vent pipe with this unit?
4 years ago1 Answer
- A: According to the manual, a 2" vent pipe would need to be installed.4 years agoHelpful?
Q: Can this pump be used with a traditional leach field system?
4 years ago1 Answer
- A: For additional product support, please contact 1-800-495-9278.4 years agoHelpful?
Q: WHAT is the distance pump can discharge ?
8 years ago1 Answer
- A: The distance depends on many variables including the size of the output pipe, how high you want the pump, types of elbows, and how many elbows are used. For more information, click the performance tab in this link: http://superiorpump.com/products/sewagekits/93015.html8 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Can this be used for downspout collection and draining yard
20 days ago1 Answer
- A: Howdy neighbor! No, the Superior Pump 1/2 HP Pre-Assembled Simplex Sewage Pump Kit (Model 92911) is not recommended for downspout collection or draining your yard. While its powerful 80 GPM flow rate and ability to pass 2-inch solids seem ideal, sewage pumps are specifically engineered for indoor, low-cycle residential waste applications and will quickly fail in a yard drainage environment.19 days agoHelpful?
Q: Is this a grinder pump
2 months ago1 Answer
- AI-generatedA: No, this is a sewage pump with a non-clogging vortex impeller that handles 2-inch solids, not a grinder pump.2 months agoHelpful?
Q: How far can it pump the discharge
4 months ago1 Answer
- A: The Superior Pump 1/2 HP 120V Electric Pre-Assembled Simplex Sewage Pump Kit has a maximum vertical lift (head) of 25 feet.4 months agoHelpful?
Q: This can be used between house and septic tank wright
5 months ago1 Answer
- A: Yes, the Superior Pump 1/2 HP Simplex Sewage Pump Kit is specifically designed to transport wastewater and sewage from a home to a septic tank or sewer line when gravity flow is not possible.5 months agoHelpful?
Q: Is this unit intended to be installed in a pit?
11 months ago1 Answer
- A: The basin is a pit, it is designed to be set into the floor or ground11 months agoHelpful?
Q: Is it 220 or 110?
2 years ago1 Answer
- A: Hi, This kit is a 110 Volt system. Thanks2 years agoHelpful?
Q: Will it pump kitchen grease
2 years ago1 Answer
- A: Hi, Here is the information we received from the vendor- "The pump in the 93015 kit is a sewage pump. Grease, when mixed with water can become jelly-like and if a lot of grease is poured in the drain, can clog the pump. Small amounts of grease should be OK but we do not recommend it."2 years agoHelpful?
Q: Do you have to run a vent pipe with this unit?
4 years ago1 Answer
- A: According to the manual, a 2" vent pipe would need to be installed.4 years agoHelpful?
Q: Can this pump be used with a traditional leach field system?
4 years ago1 Answer
- A: For additional product support, please contact 1-800-495-9278.4 years agoHelpful?
Q: WHAT is the distance pump can discharge ?
8 years ago1 Answer
- A: The distance depends on many variables including the size of the output pipe, how high you want the pump, types of elbows, and how many elbows are used. For more information, click the performance tab in this link: http://superiorpump.com/products/sewagekits/93015.html8 years agoHelpful?
Similar Items
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
Items You May Like
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
-
Customers Also Bought
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
Top Rated
Reviews
- installation
- draining
- quality
- value
- wait time
1 to 4 of 23 Reviews .
1 – 4 of 23 Reviews
Most Recent
Kennesaw Georgia
Review 1
5 out of 5 stars.
Great Value!
6 months ago
Made very well. Easy install.
Yes, I recommend this product.
Response from Pedrollo Group:
6 months ago
Pedrollo Group
Thanks for the nice review.
Review 1
2 out of 5 stars.
Spec said 10 ft long cord. Received 7’4” ;(
a year ago
Spec said 10 ft long cord. Received using with 7’4” long (had to dig somewhere else, not happy)
Yes, I recommend this product.
Response from Pedrollo Group:
a year ago
Pedrollo Group
Hi there,
The cord length is measured from where it connects to the pump. If measuring from the basin lid, 7'4" would be correct for that kit.
Thanks
The cord length is measured from where it connects to the pump. If measuring from the basin lid, 7'4" would be correct for that kit.
Thanks
New Mexico
Review 1
5 out of 5 stars.
Great kit
a year ago
I used the sewage pump kit to build an RV dump station. I needed to go 200 ft and 15 ft of elevation to reach my septic tank. Everything was supplied including a check valve. Not the pipe and external fittings of course. It handles the load with ease in less than 2 minutes. I am very satisfied.
SweepstakesYes
Yes, I recommend this product.
Response from Pedrollo Group:
a year ago
Pedrollo Group
Thanks for the nice review
Pennsylvania
Reviews 2
5 out of 5 stars.

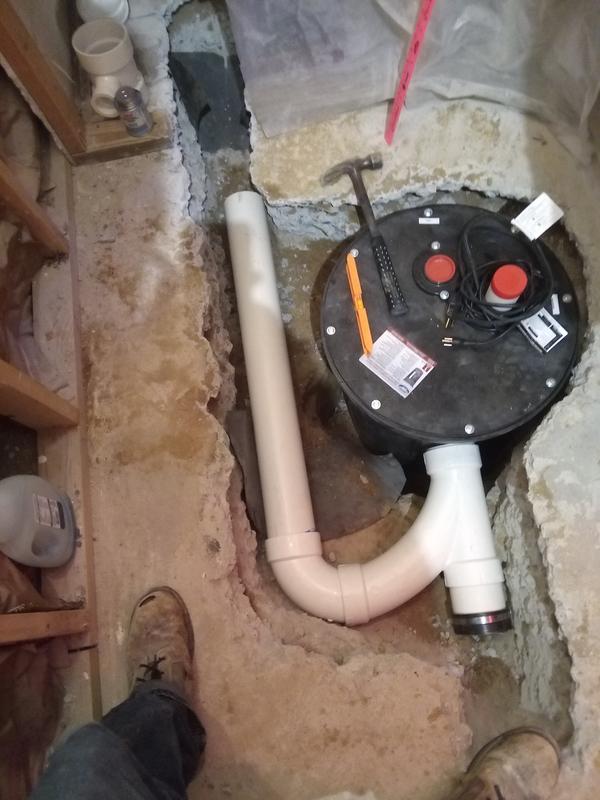

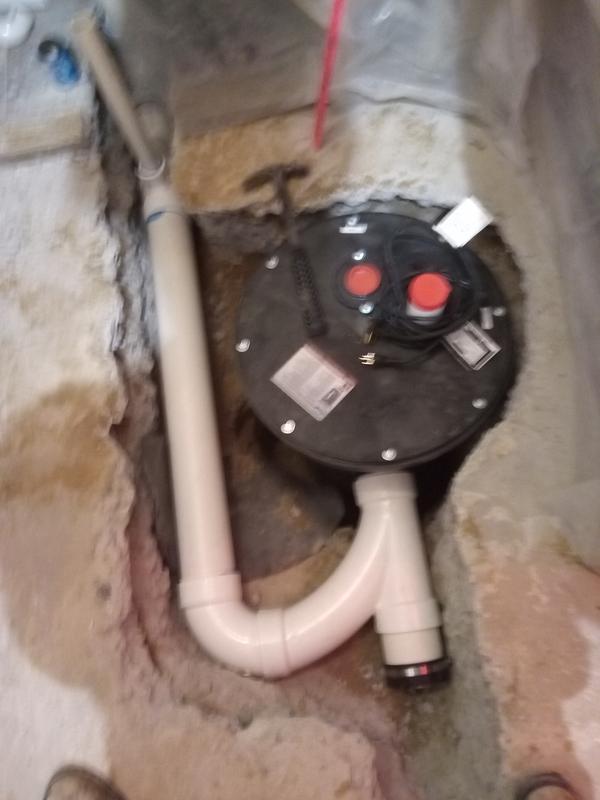

Sewage pump for upflush system in basement
2 years ago
Arrived on time and works as it should. I am pleased with Tractor supply services
SweepstakesYes
Yes, I recommend this product.
Response from Pedrollo Group:
2 years ago
Pedrollo Group
Hi Jim,
Thanks for taking the time to write this review.
Thanks for taking the time to write this review.
