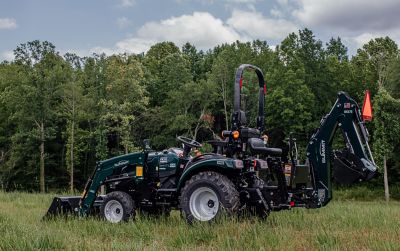

Summit Tractors Summit TX25H Tractor & Loader & Backhoe with Quick Hitch Bundle
New Arrival
Item # 610309399
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 610309399
Valid 5/11/2026 - 7/5/2026
This item is available online only
Out of stock delivering to
37027
Neighbor’s Club Members earn points with purchases.

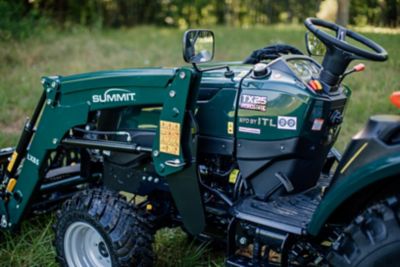

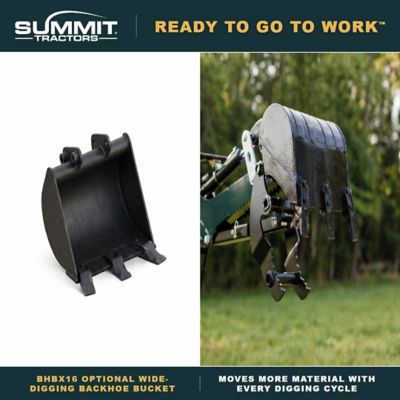

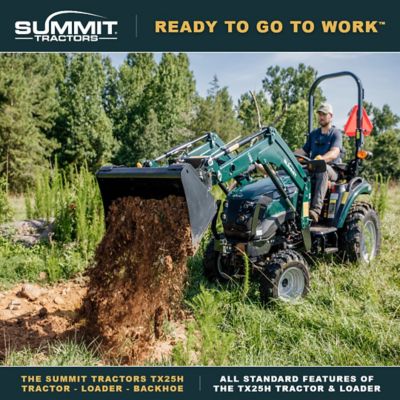

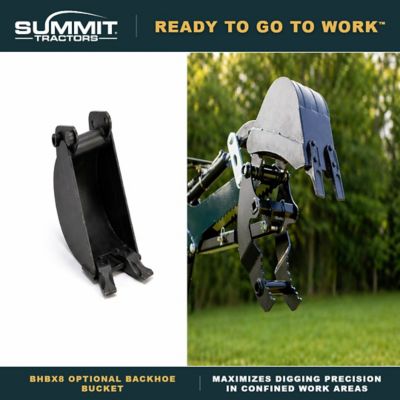

Summit Tractors Tractor-Loader-Backhoe-Quick Hitch bundle. Take a tractor, loader, backhoe and add in a Category 1 Quick Hitch and you have a great package, ready to go to work. The TX25H Tractor & LX85 Loader feature a 24.7HP Mitsubishi diesel engine, 3rd function hydraulics (grapple-ready), rear hydraulic remotes, self-leveling loader, RimGuard Liquid Tire Ballast, Goodyear R14T all-condition tires, Category 1 3-pint hitch with position control, rear work light, toolbox, swinging and cross drawbars, 7-pin trailer connector, projector headlights. The BHX76 Backhoe has an independent operator seat, mechanical thumb, 12" bucket standard, with optional 8", 16" buckets and street pads. The Summit QHX1 Quick Hitch connects to your tractor's Cat 1, 3-point hitch and lets you pick up compatible, quick-hitch-ready implements without leaving the seat. An adjustable top hook and locking lower hooks make attaching implements faster and more consistent. Warranty: TRACTOR: All Aggregates 3-years or 2,000 Hours (Longest in Industry). Limited Powertrain; 7-years or 3,000 Hours. LOADER: 1-Year BACKHOE: 2-years

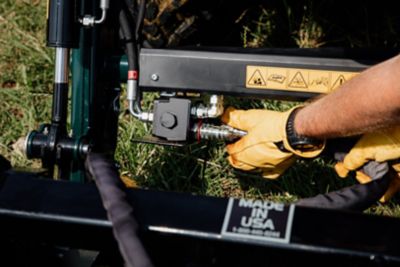

- One Set Rear Hydraulic Remotes
- 3rd Function Hydraulics - Grapple Ready
- Goodyear R14T Tires, With Rear Tires Pre-Ballasted With RimGuard Liquid Tire Ballast
- Category I Three-Point Hitch With Position Control & Transport Lock

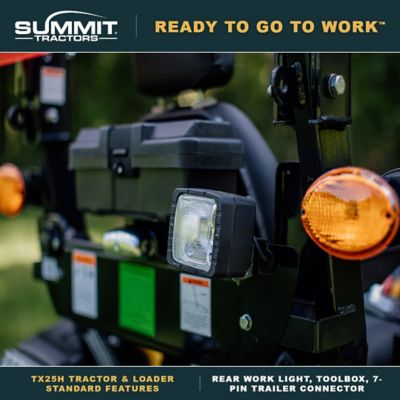

- Self-leveling Loader, Bucket Level Indicator, Side View Mirrors, Rear Work light, 7-pin Trailer Connector
- Projector Headlamps, Swinging and Cross Drawbars, Front Tow Hook, Toolbox
- BACKHOE FEATURES

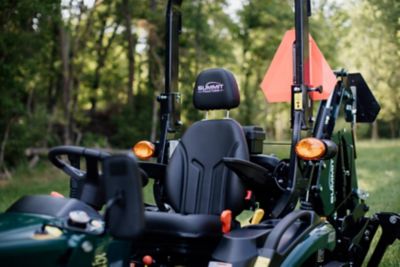

- Independent Operator Seat - No Need to Keep Pivoting the Tractor Seat
- Mechanical Thumb to lift Boulders, Logs and Other Material
- Easy on/off the Tractor Using the Quick Connect System
- BACKHOE MADE IN USA

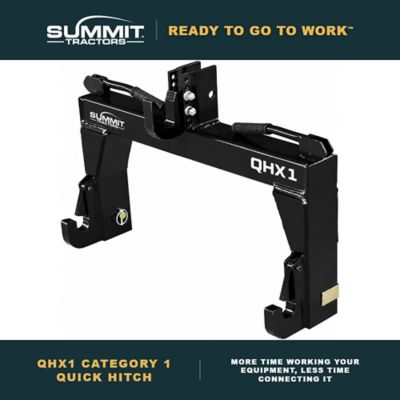

- QHX1 CATEGORY 1 QUICK HITCH FEATURES
- Adjustable Top Hook, Locking Lower Hooks
- Heavy duty Welded Steel, Powder Coat Finish. Black
| Brand | Summit Tractors |
|---|---|
| Country of Origin | Imported |
| Lift capacity of the 3 point hitch, in pounds | 1.322 lbs. |
| Width of the backhoe bucket | 12" |
| Depth that the backhoe can dig to | 78" |
| Drivetrain | Hydrostatic |
| Engine Type | Diesel |
| Width of the front end bucket | 50" |
| Front Tire Size | 23 x 8.5-12 |
| Fuel Capacity | 5.9 gal. |
| Horsepower | 24.7 hp |
| Maximum Speed | 11.32 mph |
| RPM for the mid PTO | 2100 |
| Primary Color | Green |
| Product Height | 92 in. |
| Product Length | 172 in. |
| Product Weight | 4,302 lb. |
| Product Width | 68 in. |
| Horsepower for the PTO system | 18 |
| Diameter of the PTO shaft | 1 3/8" |
| The type of PTO system | Independent |
| RPM for the rear PTO | 540 |
| Rear Tire Size | 12-16.5 |
| Start Type | Key Start |
| Warranty | Tractor: all Aggregates 3-years or 2,00 hours. Limited Powertrain: 7-years or 3,000 hours. Loader: 1-Year Backhoe: 2-years. Quick Hitch: 1-year. |
| Wheel Base | 61.8 in. |
| Manufacturer Part Number | TX25HLX85BHX76-QH |
Q: Are the blades timed on the mower?
16 hours agoQ: what's the lift capacity on the backhoe
3 days ago- A: Hi dana! The Summit BHX76 backhoe on the TX25H package features a bucket cylinder digging force of 2,270 lbs and a dipperstick cylinder digging force of 1,248 lbs. It is not traditionally rated by "lift capacity" (like a crane), but rather by its digging and breakout forces.13 hours agoHelpful?
Q&As
Q: Are the blades timed on the mower?
16 hours agoQ: what's the lift capacity on the backhoe
3 days ago- A: Hi dana! The Summit BHX76 backhoe on the TX25H package features a bucket cylinder digging force of 2,270 lbs and a dipperstick cylinder digging force of 1,248 lbs. It is not traditionally rated by "lift capacity" (like a crane), but rather by its digging and breakout forces.13 hours agoHelpful?
