Summit Tractors Summit TX25H Tractor & Loader & Backhoe wih Grapple Bundle
New Arrival
Item # 610309499
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 610309499
Valid 5/11/2026 - 7/5/2026Apply now
This item is available online only
Out of stock delivering to
37027
Neighbor’s Club Members earn points with purchases.
Summit Tractors - Tractor - Loader - Backhoe - Grapple Bundle. Fully loaded! 24.7HP Mitsubishi diesel engine, 3rd function hydraulics, rear hydraulic remotes, self-leveling loader, RimGuard Liquid Tire Ballast, Goodyear R14T all-condition tires, Category 1 Quick Hitch, rear work light, toolbox, swinging and cross drawbars, 7-pin trailer connector, projector headlights. Summit BHX76 Backhoe with independent operator seat and mechanical thumb standard standard, full sub-frame mount, quick on/off attaching system. Summit GX54 54" SSQA Grapple for all your material handling needs. This tractor, loader, backhoe, & grapple bundle is the ultimate configuration to help you tackle your land management and material handling projects. Warranty: Tractor: All Aggregates 3-years or 2,000 hours (longest full machine warranty in industry). Limited Powertrain: 7-years or 3,000 hours. Loader: 1-year. Backhoe: 2-years. Grapple: 1-year
- 24.7HP Mitsubishi EPA Tier 4, 3-Clylinder Diesel Engine

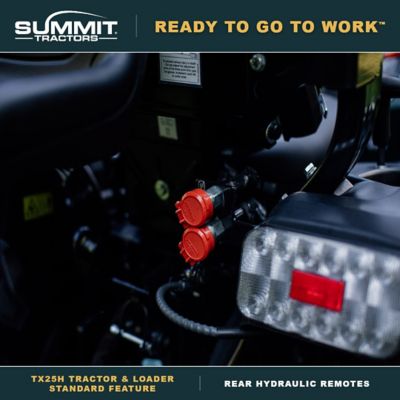

- Rear Hydraulic Remotes
- 3rd Function Hydraulics - Grapple Ready
- Goodyear R14T All-Condition Tires
- Rear Tires Per-Ballasted With RimGuard Liquid Tire Ballast
- 4WD, Differential Lock, Front Tow Hook, Swinging & Cross Drawbars
- Category I Three-Point Hitch With Position Control & Transport Lock

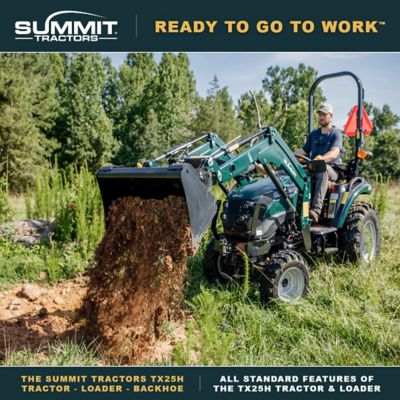

- Self-Leveling Loader with Integrated, Fender Mounted Joystick
- Rear Work Light, USB Connector, 7-pin Trailer Connector, Side-View Mirrors

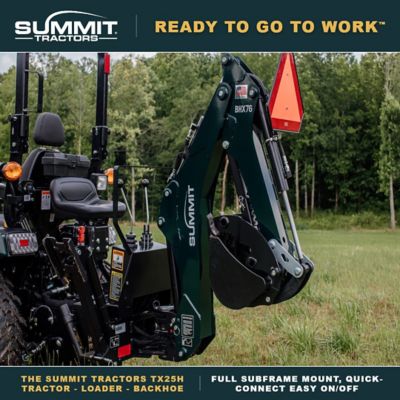

- BACKHOE FEATURES
- Independent Operator Seat
- Mechanical Thumb
- Full Subframe Mount, Quick on/off Attachment System
- GRAPPLE FEATURES

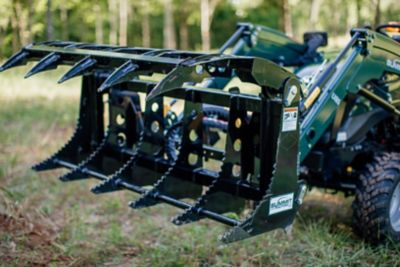

- Skid Steer Quick Attach (SSQA) Two Cylinders, 54" Working Width
- Clamshell Design - Carry More Material
- A50 Steel, Jagged Tines to Cut Through Roots
| Brand | Summit Tractors |
|---|---|
| Country of Origin | Imported |
| Lift capacity of the 3 point hitch, in pounds | 1,322 lbs. |
| Width of the backhoe bucket | 12" |
| Depth that the backhoe can dig to | 78" |
| Drivetrain | Hydrostatic |
| Engine Make | Mitsubishi |
| Engine Type | Diesel |
| Width of the front end bucket | 50" |
| Front Tire Size | 23 x 8.5-12 |
| Fuel Capacity | 5.9 gal. |
| Horsepower | 24.7 hp |
| Maximum Speed | 11.32 mph |
| RPM for the mid PTO | 2100 |
| Primary Color | Green |
| Product Height | 92 in. |
| Product Length | 178 in. |
| Product Weight | 4,302 lb. |
| Product Width | 68 in. |
| Horsepower for the PTO system | 18 |
| Diameter of the PTO shaft | 1 3/8" |
| The type of PTO system | Independent |
| RPM for the rear PTO | 540 |
| Rear Tire Size | 12-16.5 |
| Start Type | Key Start |
| Transmission Type | Hydrostatic |
| Warranty | Warranty: Tractor: All Aggregates 3-years or 2,000 hours (longest full machine warranty in industry). Limited Powertrain: 7-years or 3,000 hours. Loader: 1-year. Backhoe: 2-years. Grapple: 1-year |
| Wheel Base | 61.8 in. |
| Manufacturer Part Number | TX25HLX85BHX76-GR |
