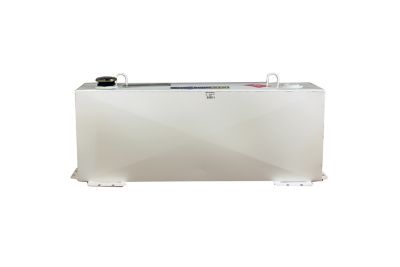

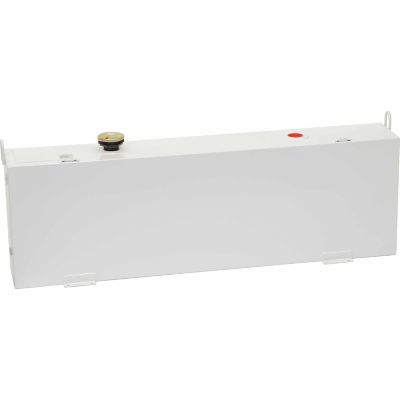

Delta Steel Transfer Tank, 37 gal.

SKU # 18506299
Product price

Save Up To
See Price at Check Out
Why?
Product Rating is 4.1
4.1
(9)

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

The Delta 37-gallon Steel Transfer Tank is a safe and convenient means for transporting non-flammable liquids.

  • Built-in lifting rings to assist with lifting and moving an empty tank
  • Lockable filler cap and coupler prevent excessive pressure build up
  • Heavy-duty brackets to secure tank to the truck bed
  • Safety fill capacity allows space for the contents to expand in warm weather
  • 59-3/4 in. W x 9 in. L x 19 in. H
  • 1 year limited warranty
Note: This tank must be securely mounted to the pickup bed. Do not cut or weld on this tank under any circumstances. Do not pressurize this tank over 8 PSIG. Do not lift this tank with hoisting loops with liquid in the tank. This tank is to be used only as a transfer tank and solely for private use. It must not, under any circumstances, be connected to the vehicle's existing fuel systems as an auxiliary fuel tank. You must use a fuel filter in your pump system. You must use an automatic shut-off nozzle. Remove the pre-vent cap slowly with caution since 2.5 PSI of pressure can accumulate in this tank. Tanks meet D.O.T. requirements for combustible liquids such as fuel oil. They are not designed for flammable liquids such as gasoline. Usage of tanks is regulated by State and sometimes local ordinances. Contact your local fire chief or fire marshal to determine your local restrictions.

Specification Description
Product Width: 59-1/2 in.
Brand: Delta
Safety Fill Capacity: 37 gal.
Product Height: 19 in.
Product Type: Transfer Tanks
Warranty: 1-Year Limited
Maximum Fill Capacity: 42 gal.
Tank Shape: Vertical
Product Length: 9 in.
Product Material: Steel
Manufacturer Part Number DZ-486210
Delta Steel Transfer Tank, 37 gal. is rated 4.1 out of 5 by 9.
Rated 3 out of 5 by from Not 19" height This tank is 21 1/2" height to top of lifting rings, not 19" as stated in the question section of this. I needed a total height of 19" and went to get it, would not fit. I could cut the lifting rings off but the fill/vent is still 21 1/2 so no need.
Date published: 2018-05-19
Rated 4 out of 5 by from Little to wide Though this should get 5 it gets 4 only due to it not being universal. The tank works great and has no functional issues. Other then the item pictured has only one opening. It has two one for a pump. The only issue with that is it does not come with a plug so I had to find one.(2" NPT male plug) I have a 6 1/2 ft bed on my super duty and this causes the tank to set on the radius of the truck bed. I used 2x8s for now but I will need to get plastic pieces made to not hold moisture. The 8 ft beds might not have this issue just a heads up.
Date published: 2018-03-25

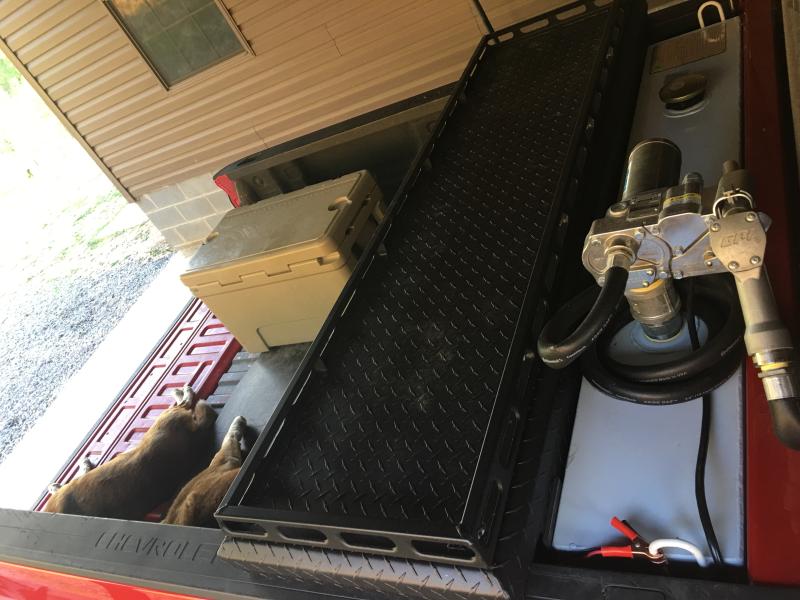

Rated 5 out of 5 by from Solid Tank Tank is built well with thick steel plate, nice welds, and heavy cast bungs with clean threads. Made in USA is a big bonus. Mounted easily in my long bed Silverado. Works perfect with my Fill-Rite pump to transfer diesel to my tractor.
Date published: 2016-11-30

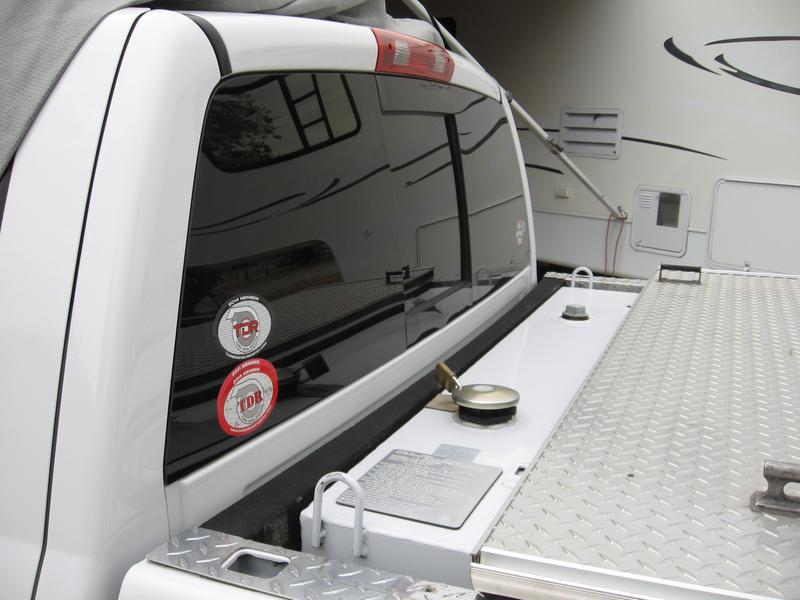

Rated 4 out of 5 by from Owned for 10 years The Good: I bought this transfer tank to make an auxiliary tank for my truck. It holds almost 40 gal if filled to the top, but is labeled for 36 gal to allow air space for expansion without spilling. I drilled a hole in the lower side, welded on a pipe nipple, plumbed in a 1/4 turn valve, and gravity feed to the main tank. The expansion space in the trucks main tank is sufficient for both tanks. This gave me the full extra 40 gal. I also liked that the top of the tank is flush with the bed rails in height and doesn't block my view out of the back window when hitching my 5th wheel. It worked great for 10 years. The Bad: The tank being steel will eventually rust, as mine did, but it's a 'cheaper than aluminum' solution that will last for several years. The gasket on the vented cap swelled and fell apart quickly; I replaced it with a new one and it did the same. I tried making a gasket out of Viton but it didn't last either. I eventually threw the vented cap and adapter away and bought two 2" pipe plug for both top holes. I fabri-cobbled a vent and baffle in one of the plugs and it resolved the leaky cap problem.
Date published: 2016-02-13
  • y_2018, m_7, d_18, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_8
  • loc_en_US, sid_18506299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • REVIEWS, PRODUCT

What needs to be done to this tank to make it a auxiliary diesel fuel tank for a pickup 5th wheel application?

Asked by: etta
Etta, This tank is not designed to be used as an auxiliary fuel tank. Any modification to this tank will void the warranty and could make it unsafe for its intended use.
Answered by: Delta Truck Boxes
Date published: 2018-04-01

what is the weight of the tank (empty)

Asked by: speessen
This tank weights 97 lbs empty.
Answered by: AmandaW
Date published: 2018-04-06

Does this tank have a drain plug?

Asked by: Hiden creek Ranch
The newer version that came out this May does have a drain plug older versions no. The store may still have old versions too in their inventory.
Answered by: Valery
Date published: 2018-04-01

Are the threaded inlet holes the same size as I really want to be able to have the filler hole on the opposite side than what is pictured in the product photo. I know I could just turn the tank around but it is already mounted and no more holes in the bed

Asked by: mnamzloh50
Both sides are 2” NPT. Our tanks have either 1 or 2 baffles inside depending on the size of the tank.
Answered by: Valery
Date published: 2018-04-01

Does this tank have a bung on the lower side so the tank can be used as an auxiliary fuel tank for 5th wheel application?

Asked by: Wootdog
Wootdog, our tanks our designed to be used as a transfer tanks for diesel fuel. Our tanks are not meant to be used as an auxiliary fuel tank.
Answered by: Delta Truck Boxes
Date published: 2018-04-01

What is the absolute highest dimension from the bottom of the tank to the top of the highest point......which I'm guessing is the top of the fuel CAP? I'm trying to figure if the tank will fit under my tonneau top. What defines the 19" spec?

Asked by: Tank height
The 19 in is for the total height of the tank, including the fuel cap.
Answered by: AmandaW
Date published: 2018-04-01

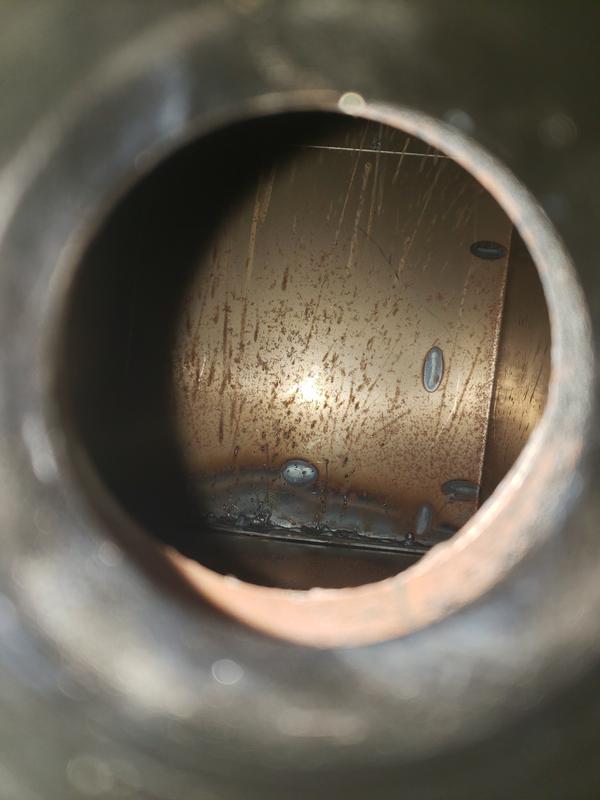

Does the tank have baffles inside to restrict the fuel from moving

Asked by: Hs5870
Our tanks have either 1 or 2 baffles inside depending on the size of the tank
Answered by: KirwinH
Date published: 2018-04-01

What is the particular reason this tank can't be used for gasoline?

Asked by: DesertRunner
Hi DesertRunner, these tanks are designed for combustible fuels and not flammable fuels. There are many regulations regarding transportation and storage of flammable fuels so we design our tanks for combustible only.
Answered by: Delta Truck Boxes
Date published: 2018-07-03
