OEM Technologies 2,400 PSI at 2.0 GPM Pressure Washer Axial Cam Pump Kit
$109.99
OEM Technologies 2,400 PSI at 2.0 GPM Pressure Washer Axial Cam Pump Kit
OEM Technologies 2,400 PSI at 2.0 GPM Pressure Washer Axial Cam Pump Kit
Item # 130787699
$109.99
Buy Any Pressure Washer, Get 20% Off Pressure Washer Accessories
Neighbor’s Club Members earn points with purchases.
OEM Technologies 2,400 PSI at 2.0 GPM Pressure Washer Axial Cam Pump Kit
Item # 130787699
Buy Any Pressure Washer, Get 20% Off Pressure Washer Accessories
$109.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Designed for performance, the 90025 OEM Technologies Axial Cam Pump is highly efficient and minimizes engine load. This easy-to-install pump replacement kit is for gas pressure washers* with a vertical engine and a 7/8 diameter shaft. This pump can produce up to 2400 PSI at 2.0 GPM. The 90025 has stainless steel pistons for improved seal life and features a stainless steel integrated unloader with our easy-start system. Images shown may vary from the actual unit
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on pressure washers? Check out our guide on how to maintain a pressure washer in the product documents section.
- Extend the Life of Your Pressure Washer: Save money by replacing your pump instead of buying a whole new power washer. This easy-to-install kit is great for power washers that can support 2400 PSI at 2.0 GPM to wash walls, fences, sidewalks, vehicles, and more.

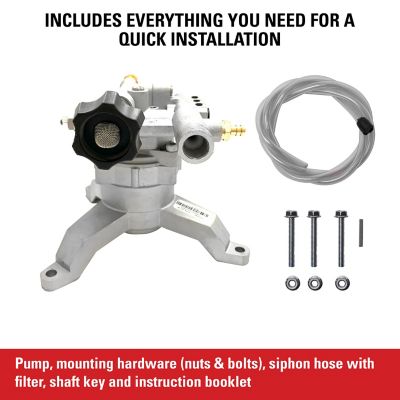

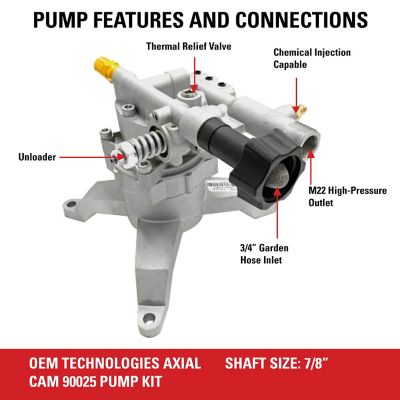

- Easy Installation: This replacement pump features a garden hose inlet and threaded M22 connection high pressure hose outlet. The SAE standard bolt pattern that fits most* gas-powered pressure washers. Each kit includes a siphon tube with filter, mounting bolts, shaft key, and instruction booklet to get your machine back in action as quickly as possible.

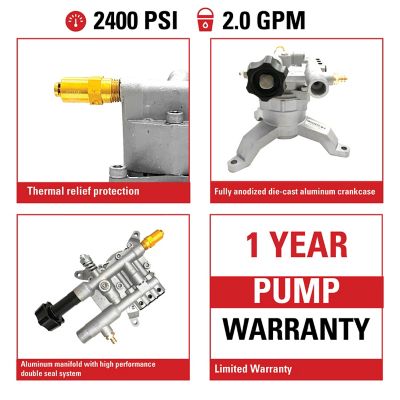

- Skip the Oil Change: This pump features a maintenance-free crankcase so you never have to change the oil. It is manufactured from fully anodized die-cast aluminum for protection against corrosion.
- Extended Durability: A Thermal Relief Valve (TRV) protects the pump from overheating while in bypass mode. The TRV releases small amounts of hot water and intakes cooler water to prevent overheating and extend the life of the pump.
- Get the Right Pump for Your Machine: This pump is designed for gas-powered pressure washers with vertical engines. Its SAE bolt pattern, hardware, and standard connections make it a great fit for many brands and models of power washers.
- 1 Year Limited Warranty
| Brand | OEM Technologies |
|---|---|
| Country of Origin | Imported |
| Compatibility | Universal |
| Compatible Hose Diameter | 0 N/A |
| Connection Size | 0 N/A |
| Connection Type | Coupler |
| Features | None |
| Handle Length | 0 N/A |
| Handle Material | N/A |
| Maximum Flow Rate | 2 GPM |
| Maximum Operating Pressure | 2,400 PSI |
| Minimum Operating Pressure | 0 N/A |
| Number of Spray Patterns | 0 N/A |
| Number of Tips Included | 0 N/A |
| Package Quantity | 1 |
| Primary Material | Aluminum |
| Product Height | 8.5 in. |
| Product Length | 6.5 in. |
| Product Weight | 6 lb. |
| Product Width | 9 in. |
| Spray Pattern | 0 N/A |
| Product Type | Pumps |
| Warranty | 0 N/A |
| Manufacturer Part Number | 90025 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 28 Questions
Newest questions
Q: will this pump work with a campbell hausfel pressure washer
4 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.4 years agoHelpful?
Q: will this work on a craftsman 580750400
4 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.4 years agoHelpful?
Q: Will this fit a craftsman 580754951
4 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.4 years agoHelpful?
Q: Will this work on a generac model g24 2400 2.2 gpm pressure washer?
5 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.5 years agoHelpful?
Q: Will this pump compatible with a Honda GCV 160 model?
5 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.5 years agoHelpful?
Q: Will this work as a replacement pump for a craftsman 580.752340?
5 years ago1 Answer
- A: Yes this will work as a replacement for the 580.7523405 years agoHelpful?
Q: Will this replacement pump fit a MI-T-M 2400 psi power washer? Model# CV-2400-4MHC
5 years ago1 Answer
- A: Yes.5 years agoHelpful?
Q: Will this work with a TroyBilt 020337-1 which has the Annovi Reverberi RMW2.2G24 pump?
5 years ago1 Answer
- A: Yes the vertical pump used in the 90025 pump kit will work as a replacement for a Annovi Reverberi RMW2.2G24 pump5 years agoHelpful?
Q: What is the bolt pattern on this mine is from middle of bolt to middle bolt it 6.5' ,6.5',and 8 '
5 years ago1 Answer

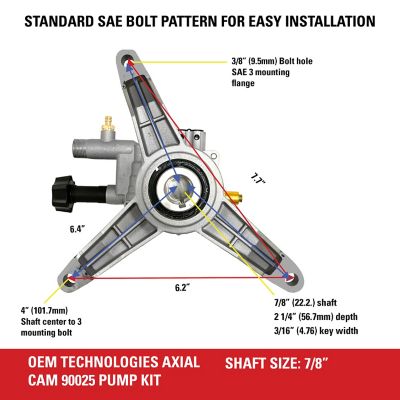

- A: We manufacture to the following bolt pattern in production: Flange/Bolt Pattern.................... SAE J-609D Garden Style5 years agoHelpful?
Q: Will this pump work on a Craftsman 580 752030? Thank you!
5 years ago1 Answer
- A: Designed to work at 3400 RPM when coupled to a gasoline engine. The 7/8"(22.2_mm) hollow shaft and universal mounting flange provides connection to most 7/8" (22.2_mm) shaft, vertical engines.5 years agoHelpful?
1 - 10 of 28 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 28 Questions
Newest questions
Q: will this pump work with a campbell hausfel pressure washer
4 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.4 years agoHelpful?
Q: will this work on a craftsman 580750400
4 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.4 years agoHelpful?
Q: Will this fit a craftsman 580754951
4 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.4 years agoHelpful?
Q: Will this work on a generac model g24 2400 2.2 gpm pressure washer?
5 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.5 years agoHelpful?
Q: Will this pump compatible with a Honda GCV 160 model?
5 years ago1 Answer
- A: Please reach out to the manufacturer at 1-877-362-4271.5 years agoHelpful?
Q: Will this work as a replacement pump for a craftsman 580.752340?
5 years ago1 Answer
- A: Yes this will work as a replacement for the 580.7523405 years agoHelpful?
Q: Will this replacement pump fit a MI-T-M 2400 psi power washer? Model# CV-2400-4MHC
5 years ago1 Answer
- A: Yes.5 years agoHelpful?
Q: Will this work with a TroyBilt 020337-1 which has the Annovi Reverberi RMW2.2G24 pump?
5 years ago1 Answer
- A: Yes the vertical pump used in the 90025 pump kit will work as a replacement for a Annovi Reverberi RMW2.2G24 pump5 years agoHelpful?
Q: What is the bolt pattern on this mine is from middle of bolt to middle bolt it 6.5' ,6.5',and 8 '
5 years ago1 Answer
- A: We manufacture to the following bolt pattern in production: Flange/Bolt Pattern.................... SAE J-609D Garden Style5 years agoHelpful?
Q: Will this pump work on a Craftsman 580 752030? Thank you!
5 years ago1 Answer
- A: Designed to work at 3400 RPM when coupled to a gasoline engine. The 7/8"(22.2_mm) hollow shaft and universal mounting flange provides connection to most 7/8" (22.2_mm) shaft, vertical engines.5 years agoHelpful?
1 - 10 of 28 Questions
Similar Items
Items You May Like
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
Reviews
- purchase
- installation
- mounting
- oem
- cleaning
- starting
- price
- cleaning
1 to 4 of 34 Reviews .
1 – 4 of 34 Reviews
Most Recent
Cape Coral, Florida
Review 1
5 out of 5 stars.
Presser washer pump.
a year ago

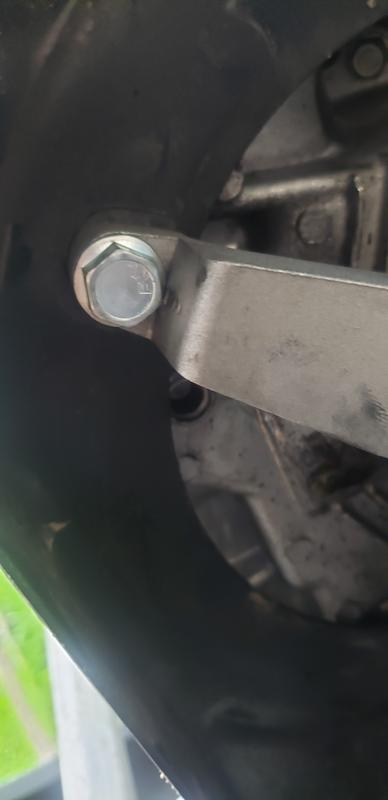

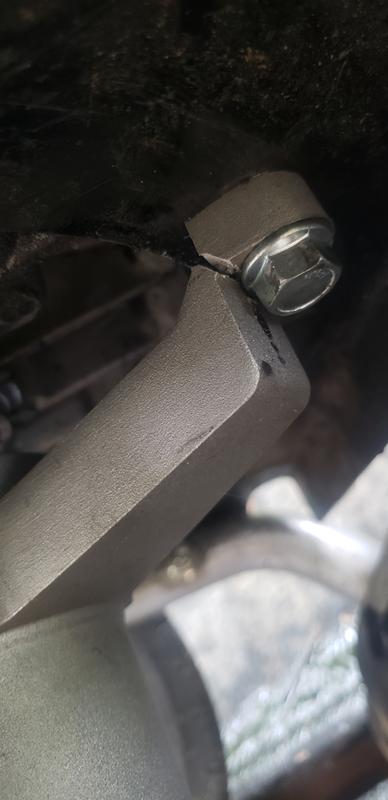

Had to modify the legs for mounting, interference with crankcase casting. Works great after addressing that issue. Would purchase again if needed.
SweepstakesYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
Pressure Washer Water Pump for Troy Bilt #020245
4 years ago
although this is the proper replacement water pump on paper...the design of the legs were not the same as the original and would not line up with the frame and bolt accordingly
PA
Reviews 2
5 out of 5 stars.
OEM Technologies 2,400 PSI
5 years ago

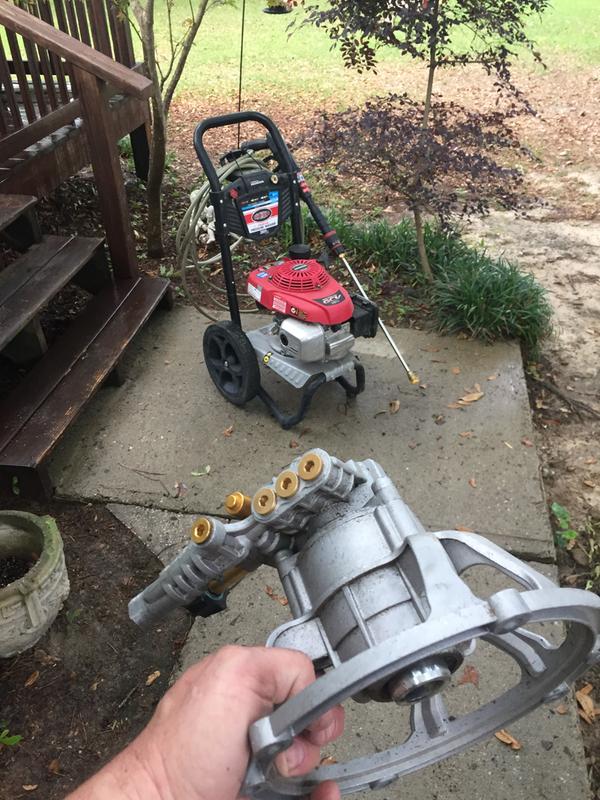

replaced original pump, it was easy to change. Filled up gas and started right up
Sweepstakes EntryNo
Yes, I recommend this product.
DELPHOS, OHIO
Review 1
5 out of 5 stars.
GOOD REPLACEMENT PUMP
5 years ago
100% CORRECT REPLACEMENT FOR A WORN OUT PRESSURE WASHER PUMP. CAME WITH NEW MOUNTING BOLTS AND ENGINE SHAFT KEY IN THE BOX. WORKS PERFECTLY.
Sweepstakes EntryYes
Yes, I recommend this product.
