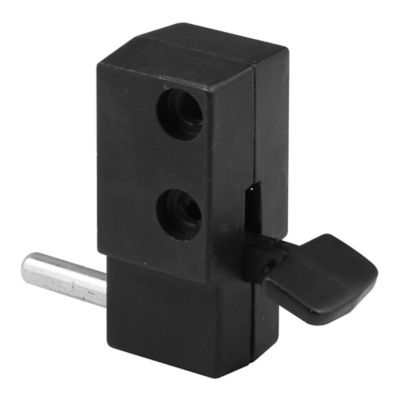

Prime-Line Black Diecast Step-On Patio Door Lock, S 4041
$10.99
This is a patio door lock featuring a hardened steel bolt. It mounts on the back of sliding patio door and is conveniently foot activated. Used to secure sliding patio door in closed or ventilating position.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Used to secure a sliding patio door in the closed or ventilating position as a foot operated lock
- Mounts to the back of the active patio door, and mounting holes go all the way through the body of this item
- Mounting holes are 5/8 inch on center
- Diecast construction in a black finish with a hardened steel bolt
- All the necessary mounting hardware is included

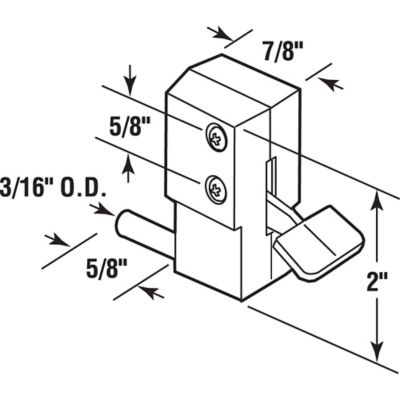

- Please refer to the line art drawing and compare with your original item before purchasing
| Brand | Prime-Line |
|---|---|
| Country of Origin | Imported |
| Bore Hole Diameter | 0.1875 in. |
| Cross Bore Diameter | 0 in. |
| Cylinder Style | N/A |
| Features | N./A |
| Finish | Black |
| Indoor/Outdoor | Indoor |
| Maximum Door Thickness | 2.375 in. |
| Minimum Door Thickness | 0.5 in. |
| Number of Keys Included | 0 |
| Number Of Pins | 1 |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Zinc alloy |
| Product Height | 2 in. |
| Product Length | 0.875 in. |
| Product Weight | 0.19 lb. |
| Product Width | 0.625 in. |
| Projection | 0.625 in. |
| Strike Height | 0 in. |
| Strike Style | Other |
| Strike Width | 0 ni. |
| Throw Length | 0.625 in. |
| Warranty | 1 year limited |
| Manufacturer Part Number | S 4041 |
