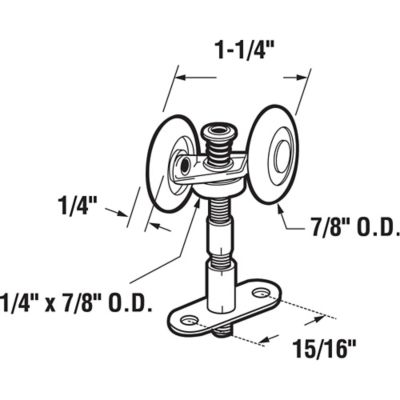

This is a top, center mounted, adjustable, tandem roller assembly. The 7/8 in. round edged or convex nylon rollers are attached to a stamped steel tandem housing and sits offset on top of a 5/16 in. threaded steel rod. The unique positioning of the rollers allow one roller to ride in one track while the other rides in the opposite track. Used on Acme series 2600, 1-3/8 in. thick closet. The horizontal roller located on the threaded rod can be adjusted up or down 5/8 inch by design and provides guidance as the roller assembly passes between the 2 opposite J-tracks.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
