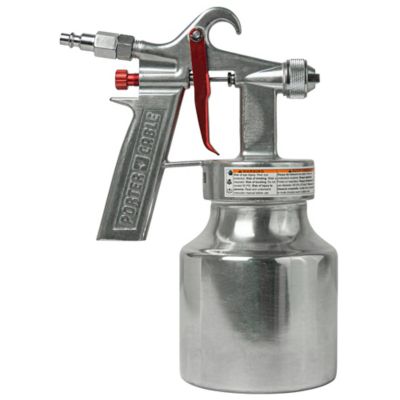

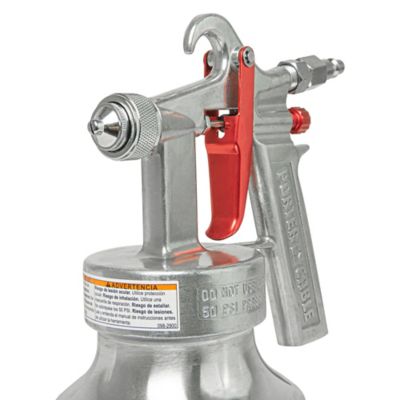

PORTER-CABLE 1 qt. 50 PSI Air LVLP Pressure Feed Bleeder Spray Gun
PORTER-CABLE 1 qt. 50 PSI Air LVLP Pressure Feed Bleeder Spray Gun
Item # 1228264
$49.99
Neighbor’s Club Members earn points with purchases.
PORTER-CABLE 1 qt. 50 PSI Air LVLP Pressure Feed Bleeder Spray Gun
Item # 1228264
$49.99
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.

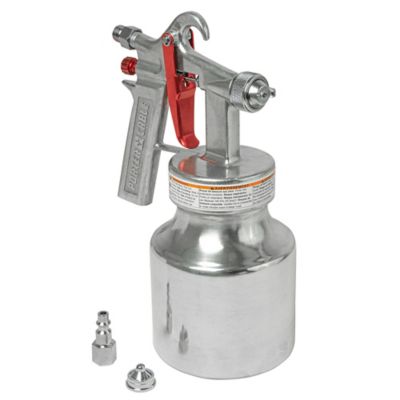

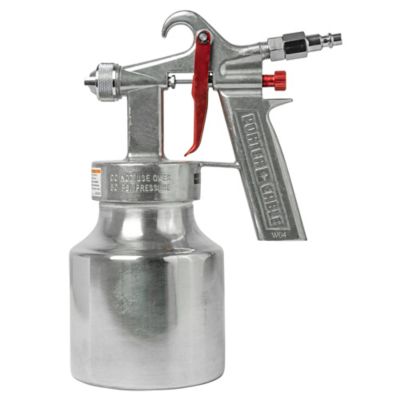

The PORTER-CABLE 1 qt. 50 PSI Air LVLP Pressure Feed Bleeder Spray Gun is a pressure feed spray gun that comes with fluid adjustment and internal mix spray nozzle for use in applying latex. The spray gun also includes an external mix nozzle for using primer. This bleeder type basic spray gun can be used with a tankless compressor. This spray gun is not recommended for auto finishing. Backed by a 1 year limited warranty.1 year limited warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Perfect for spraying latex, primer, lacquer, stain, enamel
- Spray gun functions two ways: Internal mix/pressure feed for applying latex, and an external mix/pressure feed for applying stain
- Adjustable and easy to read red fluid control with laser etching to show increase/decrease
- Adjustable horizontal vertical spray pattern
- Anodized knob and trigger on the spray gun for applying a long lasting professional finish
- Internal and external mix spray nozzles included with the PORTER-CABLE basic spray gun
- Laser etching on the basic spray gun will not rub off
- Can be used with a tankless compressor
- 1 qt. capacity
- Not recommended for auto finishing
- MAX PSI 50
| Brand | PORTER-CABLE |
|---|---|
| Country of Origin | Imported |
| Compatible Paint Types | Latex-based paints |
| Features | Sprays latex, primer, stain, enamel, and lacquer |
| Housing Material | Aluminum |
| Maximum Operating Pressure | 50 PSI |
| Maximum Tip Size | 1.6mm |
| Number Of Spray Settings | 2 |
| Paint Sprayer Type | LVLP Paint Sprayer |
| Product Height | 4 in. |
| Product Length | 10 in. |
| Product Weight | 1.8 lb. |
| Product Width | 6.5 in. |
| Reservoir Capacity | 1 qt. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | PXCM010-0012 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Where do you find parts for this spray gun? Gaskets, needles, nozzle etc..
a year ago1 Answer
- A: Hello, thank you for your question. We would recommend reaching out to PORTER-CABLE directly for these replacement parts. https://www.portercable.com/submit-requesta year agoHelpful?
Q: Would this work with Rubber coating materials?
a year ago1 Answer
- A: Hi, This sprayer is perfect for spraying latex, primer, lacquer, stain, enamel.a year agoHelpful?
Q: Will this work well spraying polyurethane finish without drips from the sprayer?
4 years ago1 Answer
- A: The Porter Cable Basic Spray Gun is designed and tested to spray latex, oil based paints, fast-drying laquers and enamels. There are many different paints, all having different viscosity levels. The owner's manual states mix material according to the manufacturer’s instructions, adding thinner if needed. Mixture should be smooth and easily pourable. Lumps or foreign objects should be removed by straining through a suitable paint filter or cheesecloth.4 years agoHelpful?
Q: Will this work with a 6 gallon compresor ?
4 years ago1 Answer
- A: This spray gun requires 2.4 SCFM @ 40 PSI to operate. If the air delivery of the 6 gallon compressor is above this, you will be able to accomplish the task.4 years agoHelpful?
Q: Do you have a diagram the o-ring fell out and not for sure where they go
5 years ago1 Answer
- A: I am not too sure what o-ring you are referring to, because I never got one. I did end up using an o-ring between the quick connect air fitting and the 1/4 npt threads on the gun, from my own supply. The supplied quick connect didn't seem very tight. That is why I used an o-ring. Does it fit over the 1/4 npt threads on the gun?5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Where do you find parts for this spray gun? Gaskets, needles, nozzle etc..
a year ago1 Answer
- A: Hello, thank you for your question. We would recommend reaching out to PORTER-CABLE directly for these replacement parts. https://www.portercable.com/submit-requesta year agoHelpful?
Q: Would this work with Rubber coating materials?
a year ago1 Answer
- A: Hi, This sprayer is perfect for spraying latex, primer, lacquer, stain, enamel.a year agoHelpful?
Q: Will this work well spraying polyurethane finish without drips from the sprayer?
4 years ago1 Answer
- A: The Porter Cable Basic Spray Gun is designed and tested to spray latex, oil based paints, fast-drying laquers and enamels. There are many different paints, all having different viscosity levels. The owner's manual states mix material according to the manufacturer’s instructions, adding thinner if needed. Mixture should be smooth and easily pourable. Lumps or foreign objects should be removed by straining through a suitable paint filter or cheesecloth.4 years agoHelpful?
Q: Will this work with a 6 gallon compresor ?
4 years ago1 Answer
- A: This spray gun requires 2.4 SCFM @ 40 PSI to operate. If the air delivery of the 6 gallon compressor is above this, you will be able to accomplish the task.4 years agoHelpful?
Q: Do you have a diagram the o-ring fell out and not for sure where they go
5 years ago1 Answer
- A: I am not too sure what o-ring you are referring to, because I never got one. I did end up using an o-ring between the quick connect air fitting and the 1/4 npt threads on the gun, from my own supply. The supplied quick connect didn't seem very tight. That is why I used an o-ring. Does it fit over the 1/4 npt threads on the gun?5 years agoHelpful?
Similar Items
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Items You May Like
Reviews
Customer Images and Videos
1 to 4 of 9 Reviews .
1 – 4 of 9 Reviews
Most Recent
Hackett, AR
Review 1
1 out of 5 stars.
Beyond Poor Product
a year ago

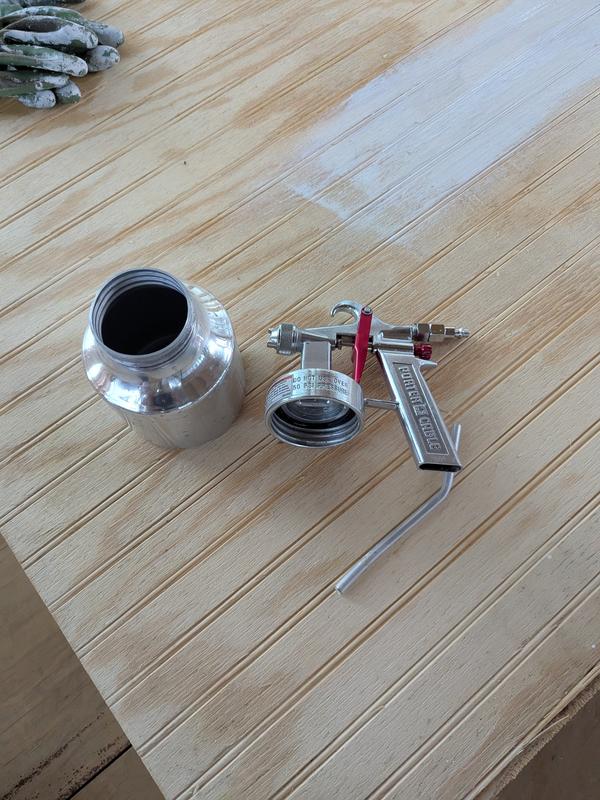

Just like most 1 star rating, this is probably THE biggest piece of junk I have ever bought. I have had this for less than 5 hours First attempt, it splatters despite making all kinds of adjustments (the amount of liquid adjustment, to pressure regulation adjustment). Also had a difficult time puitting the tank on. Cleaned it up and set it aside. Tried for the second time, the tank would not seat what-so -ever all of a sudden. Thought it seated, created a HUGE mess. Come to find out the tube for it was too long as it had snapped off when putting the tank on the second time.
No, I do not recommend this product.
Review 1
1 out of 5 stars.
Garbage
2 years ago
This sprayer is garbage. It's won't even spray right with paint it splatters. That's with a regulator.
No, I do not recommend this product.
Anonymous
Parkersburg, W.Va.
Review 1
5 out of 5 stars.
Excellent time saver with high quality outcome.
3 years ago
Needed to stain my deck, but didn’t want the laborious task of using a brush and sponge. What had taken two full days in the past with said tools I choose the Porter Gable sprayer. Four hours later my deck was stained flawlessly.
Sweepstakes EntryYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
tiny stream
4 years ago
Worked fair the first use. The second use, had trouble controlling paint spray trying to paint my bathroom ceiling. Would have taken many hours to do a ceiling,
Response from The Porter Cable Team:
4 years ago
The Porter Cable Team
We appreciate your feedback and are sorry to see that this PORTER CABLE Basic Spray Gun did not entirely meet your expectations.
This spray gun does need to stay fairly level to siphon the paint into the nozzle properly. It may be difficult to spray a ceiling with this gun for that reason. If it is not level, the siphon tube will not pull the paint upwards into the nozzle.
Please contact Product Services at 1-888-895-4549 if you are having any other issues with your air spray gun.
This spray gun does need to stay fairly level to siphon the paint into the nozzle properly. It may be difficult to spray a ceiling with this gun for that reason. If it is not level, the siphon tube will not pull the paint upwards into the nozzle.
Please contact Product Services at 1-888-895-4549 if you are having any other issues with your air spray gun.
