Palmgren 1-Ton Arbor Press, 9661101
Online Only
Palmgren 1-Ton Arbor Press, 9661101
Item # 1180876
$174.99
Neighbor’s Club Members earn points with purchases.
$174.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Palmgren 1-Ton Arbor Press delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications. This arbor press has a depth stop that securely clamps to the ram while withstanding full pressure. A lockable fine adjustment screw accurately limits the depth of the arbor press's ram stroke, and the ram on this 1-ton arbor press is reversible with one end solid and the other end with a hole and magnet to hold bits and tools. Backed by a lifetime limited warranty.Note: This product may require up to 2 additional days for order processing prior to shipping
- 1-ton arbor press made from cast-iron delivers strength
- Rugged steel ram is driven by a machined pinion
- Arbor press base is drilled for mounting on a bench or pedestal and holds a three bit set
- Punches or tools may be added to the end of the ram with the aid of a magnetic insert
- Lockable fine adjustment screw helps control the ram stroke depth
- Depth stop securely clamps to the ram on the arbor press
- Arbor press has 4 slot positions for accurate work support
- Includes three piece bit set - 1 pointed, 1 round and 1 square end bit, and a removable steel anvil
- Lifetime limited warranty
| Brand | Palmgren |
|---|---|
| Country of Origin | Imported |
| Primary Material | Cast Iron |
| Product Height | 11 in. |
| Product Length | 3.25 in. |
| Product Weight | 35.2 lb. |
| Product Width | 5.75 in. |
| Warranty | Lifetime Limited Warranty |
| Manufacturer Part Number | 9661101 |
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: What size is the ram? 1" x 1" square?
7 years ago1 Answer
- A: Yes, it is a 1 x1 square. Also the ram can be flipped around and the 1x1 square will have a hole in the middle that holds one of three punch shapes.7 years agoHelpful?
Q: I want to use it for stamping jewelry. Will it hold my Square and round metal stamps (3mm-6mm)? Is it magnetic or do they screw In?
8 years ago1 Answer
- A: This item is magnetic and holds round stamps starting at 12mm.8 years agoHelpful?
Q: How wide is the jaw opening? Can I use it to press the U-joints out of my 6 inch diameter drive shaft?
8 years ago1 Answer
- A: There are 4 different slots in the table arbor. The sizes are listed below, along with the dimension of the base slot. The arbor sizes are…. 9/16” ¾” 1-1/16” 1-1/4” The base slot width is, 1-11/16”. This press would work perfectly for pressing out u-joints.8 years agoHelpful?
Q: Is the base drilled to be bolted to a bench?
9 years ago1 Answer
- A: •Base drilled for mounting on a bench or pedestal9 years agoHelpful?
Q: how much force? .5 , 1.0 , 2.0 or 5.0 ton?
Anonymous9 years ago1 Answer
- A: The unit has a 1.0 ton force.9 years agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: What size is the ram? 1" x 1" square?
7 years ago1 Answer
- A: Yes, it is a 1 x1 square. Also the ram can be flipped around and the 1x1 square will have a hole in the middle that holds one of three punch shapes.7 years agoHelpful?
Q: I want to use it for stamping jewelry. Will it hold my Square and round metal stamps (3mm-6mm)? Is it magnetic or do they screw In?
8 years ago1 Answer
- A: This item is magnetic and holds round stamps starting at 12mm.8 years agoHelpful?
Q: How wide is the jaw opening? Can I use it to press the U-joints out of my 6 inch diameter drive shaft?
8 years ago1 Answer
- A: There are 4 different slots in the table arbor. The sizes are listed below, along with the dimension of the base slot. The arbor sizes are…. 9/16” ¾” 1-1/16” 1-1/4” The base slot width is, 1-11/16”. This press would work perfectly for pressing out u-joints.8 years agoHelpful?
Q: Is the base drilled to be bolted to a bench?
9 years ago1 Answer
- A: •Base drilled for mounting on a bench or pedestal9 years agoHelpful?
Q: how much force? .5 , 1.0 , 2.0 or 5.0 ton?
Anonymous9 years ago1 Answer
- A: The unit has a 1.0 ton force.9 years agoHelpful?
Similar Items
Items You May Like
Customers Also Bought
Reviews
- portable
- price
- purchase
- quality
- satisfaction
- sturdy
1 to 3 of 3 Reviews .
1 – 3 of 3 Reviews
Most Recent
New Bern, NC
Review 1
5 out of 5 stars.
Very nice addition to my work bench.
7 years ago

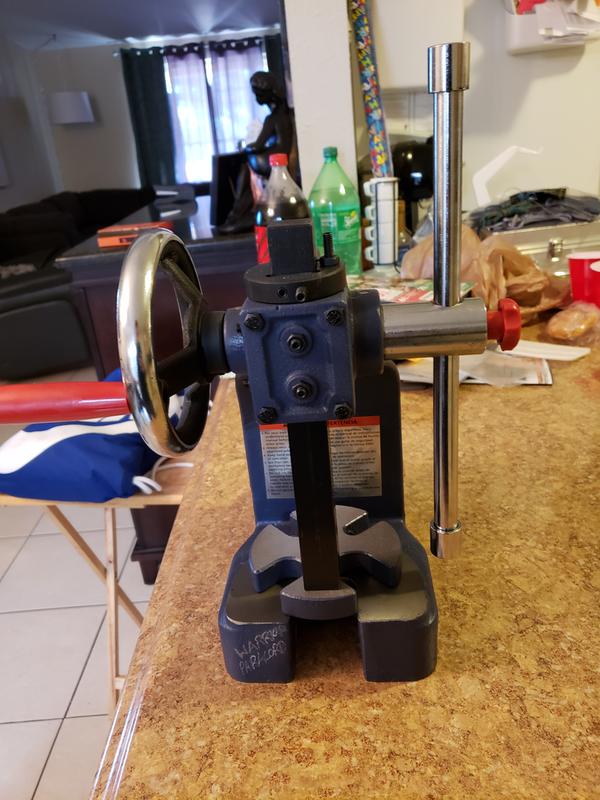

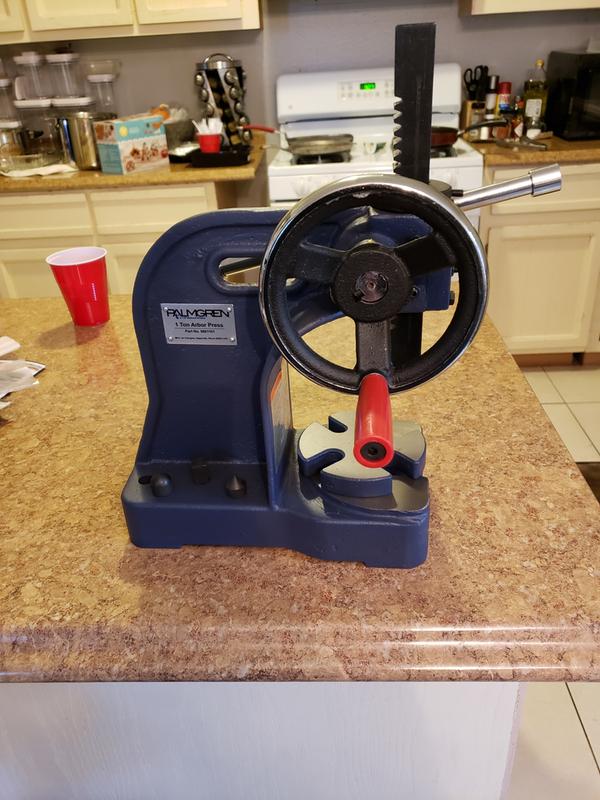

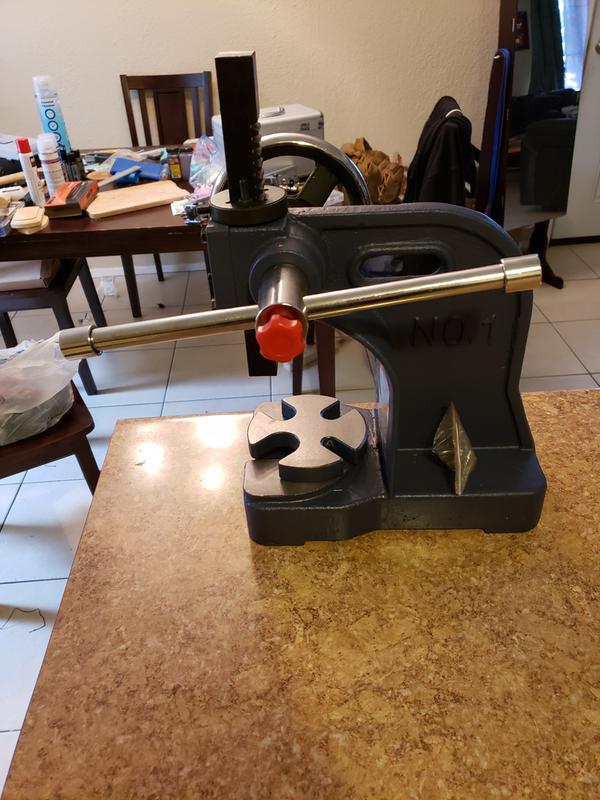

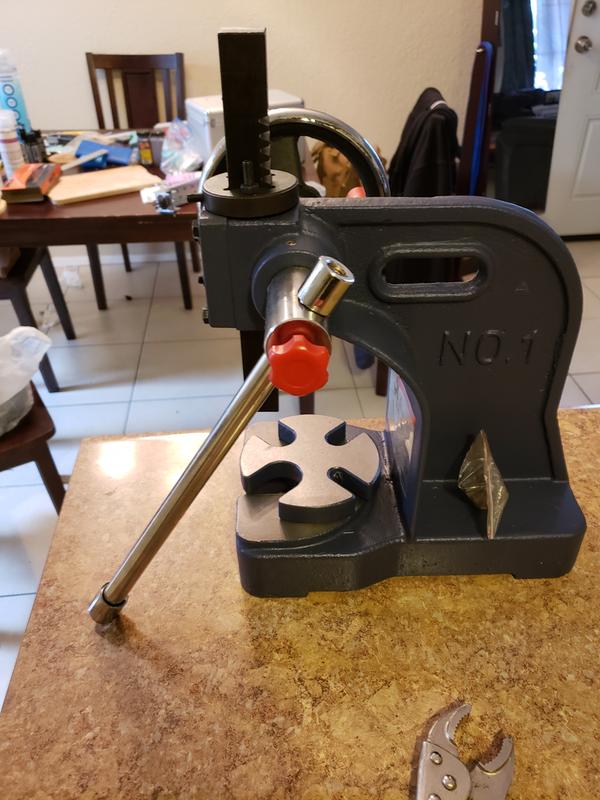

The Palmgren Arbor Press is going to be a huge helper with big and little pressing jobs in the garage.I've been wanting an arbor press for a long time. This one is absolutly the best bang for the buck. Im going to use for pressing hollow ground rivets on a 1930 Chrysler grill.
SweepstakesYes
Yes, I recommend this product.
Arizona
Review 1
5 out of 5 stars.
Overall quality
7 years ago
I bought this for my business. Over all it works pretty great the only issue is the magnet on the inside of the presses real cheap and it broke right Away the 1st time I used it. I just wanna head and bought a sturdier magnet included up in there and it works great. As far as price goes there are some presses out there a bit cheaper but not many gor a one ton. The biggest difference with this press is that you have the choice between the wheel or the bar handle. The bar handle can be tightened to a fixed position or loosened so it can slide to give you more leverage. You would have have pay twice as much to find one of the same quality and with both options somewhere else. I would say over all it's definitely well worth the price. I'm extremely happy with this purchase.
Yes, I recommend this product.
Anonymous
Arizona, United States
Review 1
4 out of 5 stars.
Portable. Choice of style of tips. Works perfect.
9 years ago
Does the job i needed done. Take it where i need it. Prefect piece of equipment.
Yes, I recommend this product.
