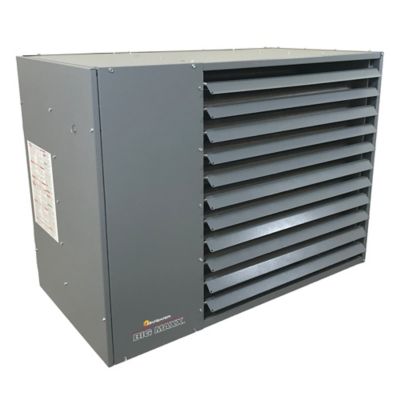

Mr. Heater Natural Gas Big Maxx Unit Heater, 2,667 sq. ft., 80,000 BTU
Mr. Heater Natural Gas Big Maxx Unit Heater, 2,667 sq. ft., 80,000 BTU
Item # 129225599
$749.99
or
or
Neighbor’s Club Members earn points with purchases.
Mr. Heater Natural Gas Big Maxx Unit Heater, 2,667 sq. ft., 80,000 BTU
Item # 129225599
$749.99
or
or
$63/mo.† suggested payments with 12 Months Financing or earn $37 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
If you are looking to turn your garage or barn into a work space you can use all year-round, you will have to find a safe quiet and reliable heat source. This Mr. Heater 80,000 BTU Big Maxx Natural Gas Unit Heater is the way to go. The natural gas heater uses a built-in electric high-velocity fan to pull cool air into the rear of the unit, across a heat exchanger, then forcing warm air into the surrounding areas. These natural gas unit heaters only require 115V AC power and can be vented vertically or horizontally (please check local codes and restrictions). With a mounting clearance of only 1 in., supplied brackets, external access to power and thermostat connections, installation is a cinch. With the Durable Spark ignition and robust factory-standard self-diagnostic control module, we can offer a 3-year factory warranty on all parts and burners and a 10-year warranty on any defects in the heat exchanger. This heater offers the operating versatility and safety that you have come to expect from Mr. Heater.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on heaters? Check out our guide on heaters in the product documents section.
- Mr. Heater gas heater runs on 115V AC power and can be vented vertically or horizontally
- Offers 80,000 BTU per hour and heats up to 2,000 sq. ft.
- Spark ignition features self-diagnostic control module
- Includes 2 angle brackets for ceiling mount
- Low-profile design means it can be installed in low-ceiling buildings (minimum 8 ft. clearance from floor to base of heater required)
- Natural Gas to Liquid Propane conversion kit included
- Category 1 vertical and category 3 horizontal venting
- 1/2 in. gas connection
- 3-year limited warranty on the parts and burner, and a 10-year limited warranty on the heat exchanger
| Brand | Mr. Heater |
|---|---|
| Country of Origin | Imported |
| Assembly Required | Partial |
| Cabinet or Housing Material | Metal |
| Finish | Powder-Coated |
| Fuel Type | Natural gas |
| Heater Area Heated | 2667 Sq ft |
| Heater Control | Thermostat |
| Heater Features | N/A |
| Installation Type | Portable |
| Heater Maximum BTU Heat Output Range | 80,000 - 100,000 |
| Heater Style | Compact |
| Heater Type | Forced Air |
| Ignition Type | Electronic |
| Indoor/Outdoor | Indoor |
| Intended Use Grade | Standard |
| Maximum BTU Heat Output | 80,000 BTU |
| Number Of Heat Settings | 1 |
| Power Type | Natural gas |
| Product Height | 17-1/8 in. |
| Product Length | 25-3/8 in. |
| Product Weight | 78.85 lb. |
| Product Width | 24-7/16 in. |
| Run Time | 27 hours |
| Warranty | 3 Year limited warranty on the parts and burner, and a 10 Year limited warranty on the heat exchanger |
| Manufacturer Part Number | F260560 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Does the unit come with the Category 3 horizontal venting?
3 years ago1 Answer
- A: Thank you for your inquiry. Any venting will need to be purchased separately.3 years agoHelpful?
Q: I have a preowned unit how can you tell if it’s lp or ng
3 years ago1 Answer
- A: Thank you for your inquiry. For technical questions, please reach out to Mr Heater directly at 1-855-663-0660.3 years agoHelpful?
Q: I'd like to heat a 1200 Sq ft garage quickly in the cold of winter in Michigan. Is there any down side to going bigger with the 80,000 btu instead of the recommended 50,000 btu?
3 years ago1 Answer
- A: Thank you for your inquiry. The MHU80 will burn more propane as it runs, but otherwise functions the same as the MHU50.3 years agoHelpful?
Q: Will this unit heat a 1500 sq ft garage with 17 foot walls?
3 years ago1 Answer
- A: Thank you for your inquiry. This heater can comfortably heat up to 2,500 square feet. With higher ceilings like you have, you may benefit from extra air circulation, which would help to spread the hot air this heater is producing to the lower areas of the space.3 years agoHelpful?
Q: Will this heat 1000 sq ft garage with with a 12 ft walls
6 years ago1 Answer
- A: Yes, this unit will heat the garage, but it might be a bit too big. 80,000 BTU unit will heat approx. 2,667 sq. feet. We recommend a 50,000 BTU Natural Gas Unit instead (SKU# 1292254). 50,000 BTU unit will heat up to approx.1,667 sq ft.6 years agoHelpful?
Q: What size supply line is required for LP? When operating and all burners on what is the amount of LP used?
6 years ago1 Answer
- A: Thank you for your inquiry. The Big Maxx heaters 80,000 BTU use a 3/8" connection hard piped to the fuel line of the heater. A low pressure regulator is place on the line. 11-14 WC or 1/2 PSI6 years agoHelpful?
Q: Does this come with the lp conversion kit?
Anonymous6 years ago1 Answer
- A: We appreciate you reaching out this unit does come with a LP conversion kit. Thanks6 years agoHelpful?
Q: Can this unit run off a thermostate
6 years ago1 Answer
- A: Thank you for your inquiry. The Big Maxx unit heaters are run and initiated by a 24V thermostat.6 years agoHelpful?
Q: does this come with the LP conversion kit?
6 years ago1 Answer
- A: This unit does come with a Conversion kit Thanks6 years agoHelpful?
Q: Is this unit air tight
6 years ago1 Answer
- A: Good Morning This unit doesn't need any kind of air intake, it uses the air around it. Thanks6 years agoHelpful?
1 - 10 of 16 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Does the unit come with the Category 3 horizontal venting?
3 years ago1 Answer
- A: Thank you for your inquiry. Any venting will need to be purchased separately.3 years agoHelpful?
Q: I have a preowned unit how can you tell if it’s lp or ng
3 years ago1 Answer
- A: Thank you for your inquiry. For technical questions, please reach out to Mr Heater directly at 1-855-663-0660.3 years agoHelpful?
Q: I'd like to heat a 1200 Sq ft garage quickly in the cold of winter in Michigan. Is there any down side to going bigger with the 80,000 btu instead of the recommended 50,000 btu?
3 years ago1 Answer
- A: Thank you for your inquiry. The MHU80 will burn more propane as it runs, but otherwise functions the same as the MHU50.3 years agoHelpful?
Q: Will this unit heat a 1500 sq ft garage with 17 foot walls?
3 years ago1 Answer
- A: Thank you for your inquiry. This heater can comfortably heat up to 2,500 square feet. With higher ceilings like you have, you may benefit from extra air circulation, which would help to spread the hot air this heater is producing to the lower areas of the space.3 years agoHelpful?
Q: Will this heat 1000 sq ft garage with with a 12 ft walls
6 years ago1 Answer
- A: Yes, this unit will heat the garage, but it might be a bit too big. 80,000 BTU unit will heat approx. 2,667 sq. feet. We recommend a 50,000 BTU Natural Gas Unit instead (SKU# 1292254). 50,000 BTU unit will heat up to approx.1,667 sq ft.6 years agoHelpful?
Q: What size supply line is required for LP? When operating and all burners on what is the amount of LP used?
6 years ago1 Answer
- A: Thank you for your inquiry. The Big Maxx heaters 80,000 BTU use a 3/8" connection hard piped to the fuel line of the heater. A low pressure regulator is place on the line. 11-14 WC or 1/2 PSI6 years agoHelpful?
Q: Does this come with the lp conversion kit?
Anonymous6 years ago1 Answer
- A: We appreciate you reaching out this unit does come with a LP conversion kit. Thanks6 years agoHelpful?
Q: Can this unit run off a thermostate
6 years ago1 Answer
- A: Thank you for your inquiry. The Big Maxx unit heaters are run and initiated by a 24V thermostat.6 years agoHelpful?
Q: does this come with the LP conversion kit?
6 years ago1 Answer
- A: This unit does come with a Conversion kit Thanks6 years agoHelpful?
Q: Is this unit air tight
6 years ago1 Answer
- A: Good Morning This unit doesn't need any kind of air intake, it uses the air around it. Thanks6 years agoHelpful?
1 - 10 of 16 Questions
Similar Items
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Items You May Like
-
-
-
-
-
Top Rated
-
Customers Also Bought
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
-
Reviews
- closing
- closing
- door
- for hot weather
- for hot weather
- large
- mounting
- mounting
1 to 4 of 8 Reviews .
1 – 4 of 8 Reviews
Most Recent
Bay City Mi
Review 1
1 out of 5 stars.
Runs non stop compared to Reznor
3 years ago
I like the ease of installation however the Reznor I replaced that was supposed to be of equal BTU that lasted 20 years ran for a few minutes and entire 40x40 garage with 18ft ceilings and is insulated with R34 on the inside walls plus drywall and 8x12x1” foil faced on the outside under the siding would be warm. 20ft garage door opens closes in minus 10 Reznor ran for few minutes instant 60”F. This heater runs NON STOP to keep same space at 60. It might shut off for ten minutes then starts up again. The Reznor with 3 guys wrenching and sweating and breathing would run 4 times every 3-4 hours. Big Max runs NON STOP. have had multiple friends ask me if because it’s mounted horizontal to ceiling if that’s the problem. Reznor was mounted vertical closer to floor. Might change way it’s mounted n summer. Vents are set to blow down as much as they can be. Have even thought of making a cover so it blows downward more.
No, I do not recommend this product.
Response from Mr. Heater Product Expert:
3 years ago
Mr. Heater Product Expert
Thank you for your review and feedback. We'd like to speak to you about your experience with this unit. Please give us a call at 1-855-663-0660.
norCal
Review 1
1 out of 5 stars.
Poor output compared to my old one.
3 years ago
Pretty disappointed honestly. I removed an older unit that was rated at 60,000btu and installed this one of 80,000btu thinking it would put out more heat... the new one doesn't work anywhere close to as well as the older "smaller" one when it worked!! It was dented (cosmetic) when received also. Otherwise it functions ok
No, I do not recommend this product.
Response from Mr. Heater Product Expert:
3 years ago
Mr. Heater Product Expert
Thank you for your review and feedback. We'd like to speak to you about your experience with this heater. Please give us a call at 1-855-663-0660.
sumas wa
Review 1
1 out of 5 stars.
tarsem
5 years ago
i buy oct 11 2019 heater not working power not come fuse is kick out
No, I do not recommend this product.
Response from Mr. Heater Product Expert:
3 years ago
Mr. Heater Product Expert
Thank you for your review and feedback. We'd like to speak to you about your experience with this unit. Please give us a call at 1-855-663-0660.
Ohio
Review 1
5 out of 5 stars.
Works great
6 years ago
Great product easy to set up heats well thermostat needed upgraded but otherwise really happy
Yes, I recommend this product.
