Zeeline by Milton Premium Series Non-Preset Meter with Rigid Auto Tip
Zeeline by Milton Premium Series Non-Preset Meter with Rigid Auto Tip
Item # 2517245
$404.99
Zeeline by Milton Premium Series Non-Preset Meter with Rigid Auto Tip
Item # 2517245
$404.99

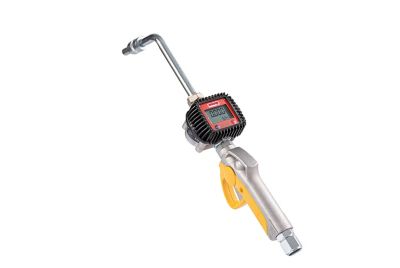

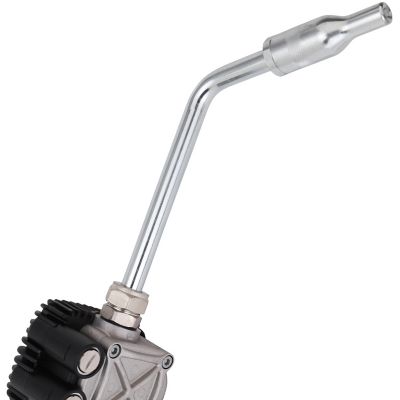

This digital control valve was built with professionals in mind and was designed for use with motor oils, gear oils, synthetic hydraulic oils, and transmission fluids. This control valve features an LCD screen that is clear and easy to read, allowing the user to clearly identify the amount of fluid dispensed into their application from the valve. The ZE2505P features an auto-nozzle with rigid outlet, can be used with 1/2 in. NPT hoses and runs on a 3-volt battery.

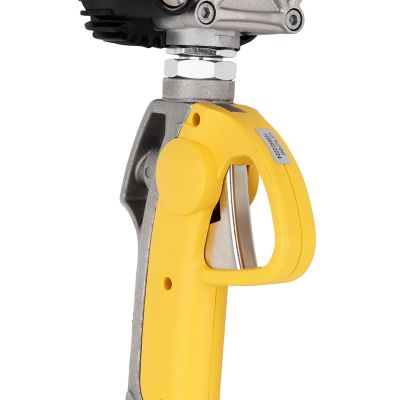

- Comfort Handle: Built in ergonomic rubber grip that protects the operator from sudden impact shocks.

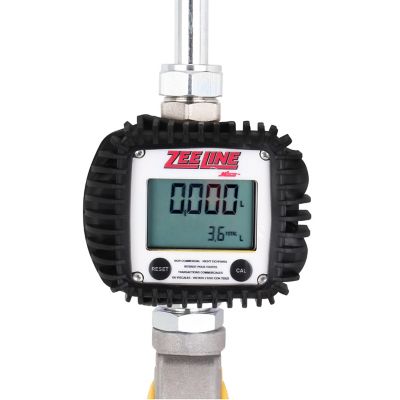

- Precise Oil Measurement: Accuracy rating of +/- 0.5% with a clear view LCD.
- Fast and Efficient delivery: 1-8 GPM delivery rate with a maximum working pressure of 1015 PSI.
- Built to Last: Crafted with aircraft grade aluminum components and enclosed in a polypropylene shell for protection against sudden impacts.
- Use with a variety of applications: For use with motor oils, gear oils, synthetic hydraulic oils, transmission oils.
- Temperature range: -14 degrees F to 122 degrees F. ( -10 C to 50 C)
- Pressure rating: 5-1015. (0.35-70 BAR)
- Flow Rate: 1-8 GPM. (1-30 LPM)
- Thread size: 1/2 in. NPT. (female)
- Made in Italy.
| Brand | Zeeline by Milton |
|---|---|
| Country of Origin | Imported |
| Body Materials | Aluminum |
| Compatible Fluids | Motor Oils, Hydraulic Oils, Gear Oil |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.5 in. |
| Duty Cycle | 0 in. |
| Features | Use with a variety of applications: For use with motor oils, gear oils, synthetic hydraulic oils, transmission oils. |
| Hose Diameter | 0.5 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.5 in. |
| Intended Use Grade | Commercial, Residential, Standard, Industrial |
| Maximum Flow Rate | 8 GPM |
| Maximum Head Lift | 0 in. |
| Maximum Operating Pressure | 1,015 PSI |
| Maximum Operating Temperature | 122 degrees F |
| Minimum Operating Pressure | 5 PSI |
| Minimum Operating Temperature | -14 degrees F |
| Power Type | Air operated |
| Product Height | 13.8 in. |
| Product Length | 6.3 in. |
| Product Weight | 3 lb. |
| Product Width | 5.3 in. |
| Warranty | 2-year |
| Manufacturer Part Number | ZE2505P |
