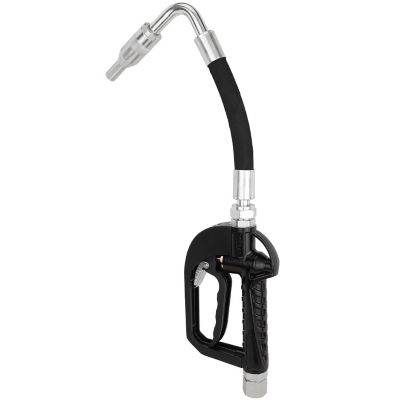

Zeeline by Milton Premium Series Control Valve with Flex Auto Tip
Zeeline by Milton Premium Series Control Valve with Flex Auto Tip
Item # 2517247
$179.99
Zeeline by Milton Premium Series Control Valve with Flex Auto Tip
Item # 2517247
$179.99
This control valve was built with professionals in mind and was designed for use with motor oils, gear oils, synthetic hydraulic oils, and transmission fluids. This control valve features a durable body with a comfort grip to allow the operator to use with comfort without sacrificing durability from daily operation. The ZE2511P features an auto-nozzle with flexible outlet and can be used with 1/2 in. NPT hoses.
- Comfort Handle: Built in ergonomic rubber grip that protects the operator from sudden impact shocks.
- Built for various Industries: Can be used in auto shops, fleet service facilities, industrial settings, and more!
- Fast and Efficient delivery: 1-10 GPM delivery rate with a maximum working pressure of 1000 PSI.
- Built to Last: Crafted with aircraft grade aluminum components and enclosed in a polypropylene shell for protection against sudden impacts.
- Use with a variety of applications: For use with motor oils, gear oils, synthetic hydraulic oils, transmission oils.
- Temperature range: -14 deg. F to 122 deg. F. ( -10 deg.C to 50 deg. C)
- Pressure rating: 7-1000 PSI. (0.5-50 BAR)
- Flow Rate: 10 GPM. (35 LPM)
- Thread size: 1/2 in. NPT. (female)
- Made in Italy.
| Brand | Zeeline by Milton |
|---|---|
| Country of Origin | Imported |
| Body Materials | Aluminum |
| Compatible Fluids | Hydraulic Oils, Motor Oils, Gear Oil |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.5 in. |
| Duty Cycle | 0 in. |
| Features | Use with a variety of applications: For use with motor oils, gear oils, synthetic hydraulic oils, transmission oils. |
| Hose Diameter | 0.5 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.5 in. |
| Intended Use Grade | Commercial, Residential, Standard, Industrial |
| Maximum Flow Rate | 10 GPM |
| Maximum Head Lift | 0 in. |
| Maximum Operating Pressure | 1,000 PSI |
| Maximum Operating Temperature | 140 deg. F |
| Minimum Operating Pressure | 7 PSI |
| Minimum Operating Temperature | -14 deg. F |
| Power Type | Air operated |
| Product Height | 12.36 in. |
| Product Length | 2.28 in. |
| Product Weight | 2.31 lb. |
| Product Width | 8.11 in. |
| Warranty | 2-year |
| Manufacturer Part Number | ZE2511P |
