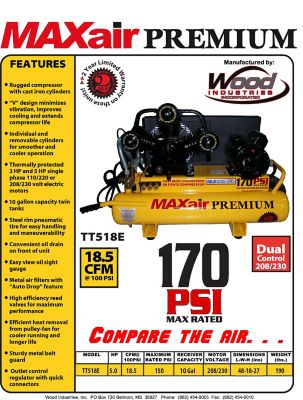

MAXair 10 gal. 5HP Wheelbarrow Style Compressor
Item # 6012379
The MAXair wheelbarrow 5hp 220 volt compressor is paired with a cast iron "V" style three cylinder 170 psi pump that produces 18.5 CFM's of air. The low RPM compressor head reduces heat & friction by runing slower therefore increasing the life of this unit vereses most of the competitiors. Features like extend oil drains, liquid filled gauges, extended tank drains, and automotive style air filters takes the hassle out service and maintentance on the unit. With more than enough air to operate high demand air tools, this unit will support 6 to 8 pnuematic nail guns. This portable unit is perfect for jobsites with limited power supply. It's dual mode STOP/START or CONTINUOUS run feature makes it ideal for temporary job site power or use with a generator. ThIs model loaded with ready to use features like triple quick connects, a built in regulator and an industry leading 10 gallon tank. Our "Premium Promise" gives you an unrivaled 2 year warranty even for commerical applications
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 18.5 CFM @ 100 PSI
- Built In Regulator
- Liquid Filled Gauges
- Triple Automotive Style Filters
- Dual Mode Option-Continuous Run or Stop/Start Controls
- Premium Promise' 2 year warranty, even for commercial applications
| Brand | MAXair |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 18.5 CFM |
| Air Outlet Size | 0.25 in. |
| Amperage | 22 Amp |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 150 PSI |
| Compressor Tank Capacity | 10 gal |
| Compressor Voltage | 220V |
| Drain System | Manual |
| Drive Type | Belt |
| Features | Single Phase 5HP Elec Motor, Cast Iron Cylinders, Easy View Oil Sight Gauge, Metal Air Filters, Sturdy Metal Belt Guard |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 27 in. |
| Product Length | 45 in. |
| Product Weight | 190 lb. |
| Product Width | 18 in. |
| Pump Material | Cast iron |
| Tank Style | Wheelbarrow |
| Warranty | 2 year limited |
| Manufacturer Part Number | TT518E-MAP |
