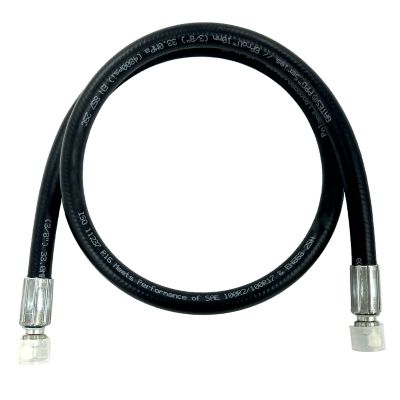

Magister Hydraulics Hydraulic Hose Assembly 3/8 ID x 18in. Length, JIC Swivel Female
Item # 612691899
Spend $49.99 to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 612691899
Spend $49.99 to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
This 18 inches-inch Length Hydraulic Hose Assembly features durable two-wire steel braid reinforcement and 3/8" ID JIC swivel female fittings, providing a reliable connection between hydraulic components in high-pressure systems.
Hose Brand: Premium rubber hoses by Gates PRO™
Designed for flexibility and durability, this hose assembly easily routes around corners and tight spaces while maintaining excellent performance under demanding hydraulic conditions.
Made in Europe
1-Year Warranty
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
If you need assistance, do not hesitate to contact us:
973-344-5313Hydraulic Hose Assembly 3/8" ID x 18" Length, JIC Swivel Female ends and two-wire steel braid reinforcement. Rated for 3500 PSI. Flexible, durable and ideal for hydraulic systems. Built with Gates PRO™ hose. Same Day Shipping. Made in Europe.
- Length: 18 inches inches
- Fittings: 3/8" ID JIC swivel female fittings
- Reinforcement: Two-Wire Steel Braid
- Hose standards: Meets or exceeds the performance requirements of SAE 100R2, EN 857 2SC, and EN 853 2SN. Satisfies SAE 100R16 and SAE 100R17 dimensional and performance-cycle requirements for these hose sizes
- Hose Working Pressure: 4,800 PSI
- Minimum Hose Burst Pressure: 19,200 PSI
- Minimum Hose Bend Radius: 2.5"
- Temperature Range (hose): -40F to +212F
- MSHA: Flame-resistant hose
- Made in Europe
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| End 1 Diameter | 3/8" JIC Female |
| End 2 Diameter | 3/8" JIC Female |
| Features | 3/8" JIC swivel female fittings; 18 in. hose length; Two-wire steel braid reinforcement; SAE 100 R17; 4,800 PSI working pressure; Gates PRO hose |
| Hose Type | Hydraulic Hose |
| Maximum Operating Pressure | 4,800 PSI |
| Maximum Temperature | 212 deg. F |
| Minimum Temperature | -40 deg. F |
| Model Compatibility | Universal |
| Primary Material | Rubber |
| Product Height | 2 in. |
| Product Length | 18 in. |
| Product Weight | 2 lb. |
| Product Width | 12 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | HHA-D06-06-FJS-18 |
