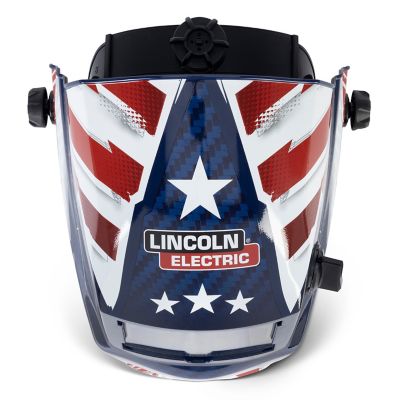

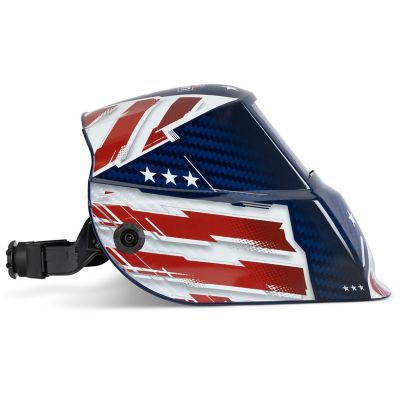

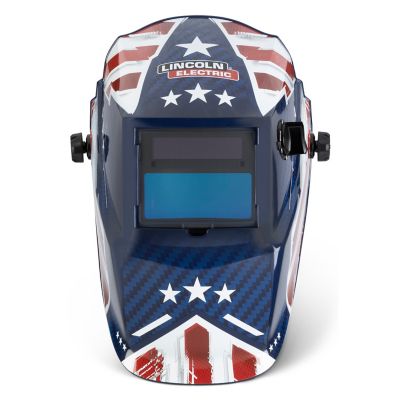

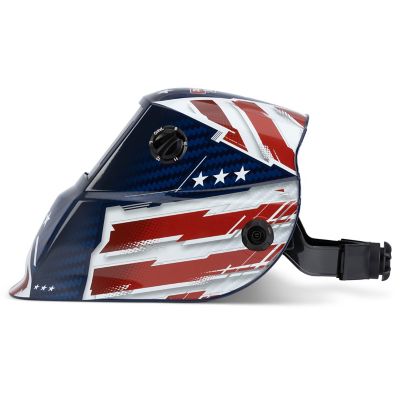

Lincoln Electric Patriot Welding Helmet
Lincoln Electric Patriot Welding Helmet
Item # 247235399
Stocked & Ready
$99.99
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
$99.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 9/20/26.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Lincoln Electric K5617-2 Patriot variable shade auto-darkening welding helmet is a rugged lightweight helmet with comfortable headgear and an oversized absorbent sweatband for those long days under the helmet. Includes 2 extra inside and outside impact resistant clear lenses. The Variable shade feature allows you to choose from shades 9-13. The helmet also features an additional grind mode shade. It can be used in Stick, TIG, Pulsed TIG, MIG, Pulsed MIG, Flux-Cored, Gouging welding processes.
- WELD PROTECTION: Lincoln Electric K5617-2 Patriot Welding Helmet is an auto-darkening hood for safety and protection thats solar powered
- COMFORTABLE FIT Adjustable ratchet headgear provides the perfect fit for men and women; Its rugged but lightweight with an oversized absorbent sweatband for extended wear and comfort
- EXTRA LENSES: Includes 2 extra inside and outside impact resistant clear lenses; The variable shade feature allows you to choose from shades 9-13; The helmet also has an additional grind mode shade
- DURABLE & VERSATILE: Suitable for a wide range of projects and can be used in Stick, TIG, Pulsed TIG, MIG, Pulsed MIG, Flux Core, and Gouging welding processes; Tig Rating = 10 amps
- Optical Clarity 1/2/1/3
- Two independent arc sensors to help avoid blind spots
- Grind Mode Capability
- Lightweight - 17.5 oz.
- Continuous variable external control for shades 9-13
- Light to dark switching time - 0.00001 seconds (1/10,000 seconds)
| Brand | Lincoln Electric |
|---|---|
| Country of Origin | Imported |
| Features | The Lincoln Electric K5617-2 Patriot variable shade auto-darkening welding helmet is a rugged lightweight helmet with comfortable headgear and an oversized absorbent sweatband for those long days under the helmet. |
| Lens Height | 1.73 in. |
| Lens Width | 3.82 in. |
| Liner Material | Polycarbonate |
| Primary Color | Multicolor |
| Product Height | 9.6 in. |
| Product Length | 9 in. |
| Product Weight | 2.1 lb. |
| Product Width | 9 in. |
| Shade Designation | 10-13 |
| Shell Material | Nylon |
| Warranty | 2 Years |
| Welding Helmet Type | Auto-Darkening |
| Size | One size fits all |
| Manufacturer Part Number | K5617-2 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Does this helmet have the ability to have magnifying lenses installed in it. And if so where do I order them from????D
6 days ago1 Answer
- A: Hi Doug: This item is compatible with a Cheater lens and the lens can be ordered via the manuafacturer site, https://www.lincolnelectric.com/en/3 days agoHelpful?
Q: Does it have a battery back up?
14 days ago1 Answer
- A: No, many of our shade 7-13 helmets have battery backup.12 days agoHelpful?
Q: what is the size of the front cover clear lens?
2 months ago1 Answer
- A: Hi, the ADF viewing area is 3.82" x 1.73" (97mm x 44mm).2 months agoHelpful?
Q: What is the viewing area of the lenses?
2 months ago1 Answer
- A: The viewing area is 1.73 x 3.82 in.2 months agoHelpful?
Q: What is the lens reaction/transition time? And - WHY do i have to ASK? The time it takes the shaded lens to transition to the desired level should be FOREMOST in the "details" and DEFINITELY in the "specifications"
a year ago1 Answer
- A: The light to dark switching time is 0.00001 or 1/10,000 seconds.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Does this helmet have the ability to have magnifying lenses installed in it. And if so where do I order them from????D
6 days ago1 Answer
- A: Hi Doug: This item is compatible with a Cheater lens and the lens can be ordered via the manuafacturer site, https://www.lincolnelectric.com/en/3 days agoHelpful?
Q: Does it have a battery back up?
14 days ago1 Answer
- A: No, many of our shade 7-13 helmets have battery backup.12 days agoHelpful?
Q: what is the size of the front cover clear lens?
2 months ago1 Answer
- A: Hi, the ADF viewing area is 3.82" x 1.73" (97mm x 44mm).2 months agoHelpful?
Q: What is the viewing area of the lenses?
2 months ago1 Answer
- A: The viewing area is 1.73 x 3.82 in.2 months agoHelpful?
Q: What is the lens reaction/transition time? And - WHY do i have to ASK? The time it takes the shaded lens to transition to the desired level should be FOREMOST in the "details" and DEFINITELY in the "specifications"
a year ago1 Answer
- A: The light to dark switching time is 0.00001 or 1/10,000 seconds.a year agoHelpful?
