Lazer Star Lights 4 in. 5W Dominator LED Cube Spot Light Kit
Sale
Was$89.99
Save $9.00
Lazer Star Lights 4 in. 5W Dominator LED Cube Spot Light Kit
Limited Time Deal
Item # 121290899
Sale
Was$89.99
Save $9.00
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Item # 121290899
Sale
Was$89.99
Save $9.00
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

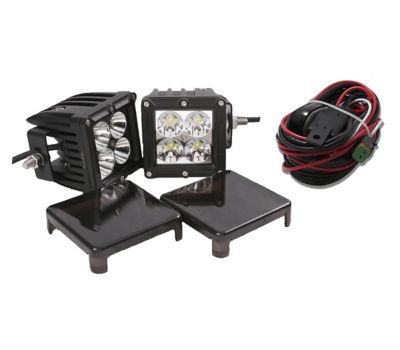

The Lazer Star Lights Dominator LED 4 in. 5W Spot Cube Light Kit includes a pair of light cubes, wire harness with surface mount switch, covers and bottom mount. This spot light boasts an impact-resistant lens and high-strength construction that's protected against water damage. The LEDs produce a light beam of 1824 lumens to help you see when and where you need to. Get the right vehicle lights for your setup today.
Looking for more information on car and truck lighting? Check out our guide on lighting types in the product documents section.
- Durable high-strength construction withstands harsh use
- Impact-resistant polycarbonate lens for increased durability
- Water intrusion protection helps prevent water damage
- Cree LED with optimized reflector system
- Rugged aluminum extrusion housing
- Long 50,000 hour life rating
- Bottom mounting options
- Stainless-steel hardware keeps everything secure
- Beam Pattern: Spot
- Spot cube light dimensions: 3.10 in. H x 3.20 in. D x 3.90 in. W
- Produces 1824 lumens of bright light
- Total A Draw @ 14.2V: 1.66
- IP67 rated construction ensures long-lasting use
- X-Series Cree LED
- Operating Temp: 104°F ~ +122°F
- Input Voltage 12-30V
| Brand | Lazer Star Lights |
|---|---|
| Country of Origin | Imported |
| Average Life | 30,000 hr. |
| Battery Size | N/A |
| Beam Angle | 10 deg. |
| Beam Patterns | Spot |
| Bulb Base Type | Multi-purpose |
| Bulb Count | 4 |
| Bulb Type | LED |
| Compatibility | Universal |
| Coverage Area | 10 deg. |
| Cover Included | Yes |
| Features | 5-Watt LED 4000 Total Lumen |
| Finish | Powder-Coated |
| Housing Color | Black |
| Housing Material | Aluminum |
| Indoor/Outdoor | Outdoor |
| Light Color | White |
| Light Type | Spot Lights |
| Lumen Rating | 1,824 Lumen |
| Mounting Location | Vehicle Mounted |
| Mounting Position | Adjustable |
| Mounting Type | Bolt-On |
| Package Quantity | 2 |
| Power Type | 12 Volt |
| Primary Material | Aluminum |
| Product Height | 3-1/8 in. |
| Product Length | 3-7/8 in. |
| Product Weight | 3.9 lb. |
| Product Width | 3-1/4 in. |
| Shape | Square |
| Voltage | 9-36 V |
| Warranty | 3 Year |
| Wattage | 5W |
| Wire Length | 1 m |
| Manufacturer Part Number | 77250401 |
Q: Can you combine multiple light kits, or just the two?
3 years ago- A: Hello, These lights are individually powered, so they cannot be combined with multiple light kits. Thank you for your question.3 years agoHelpful?
Q: Can I use these on a bulldozer with a 24 volt system. I checked voltage at the wires at the current light and it has 26v. I put range is listed as 12-30v. Will this work? Will 24v decrease the life of your product? Thank you.
4 years ago- A: Product has an Input Voltage of 12-30V so the bulldozer stated voltage should be fine. The LED will work efficiently at this voltage and will have a typical life.4 years agoHelpful?
Similar Items
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
-
-
-
Items You May Like
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Customers Also Bought
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
Reviews
ATV additional lighting
Yes, I recommend this product.
