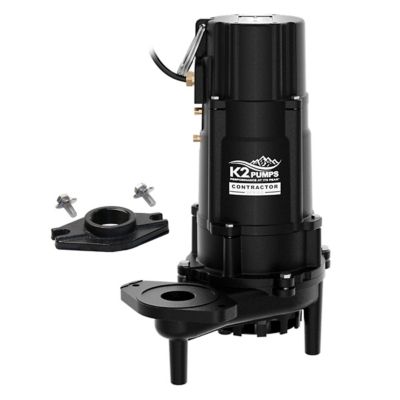

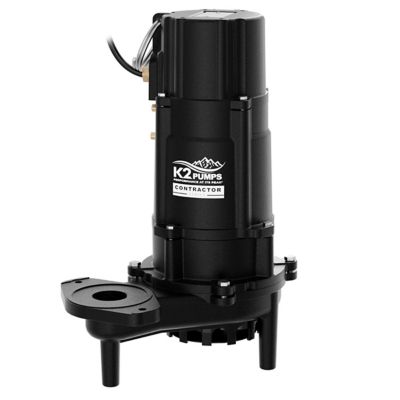

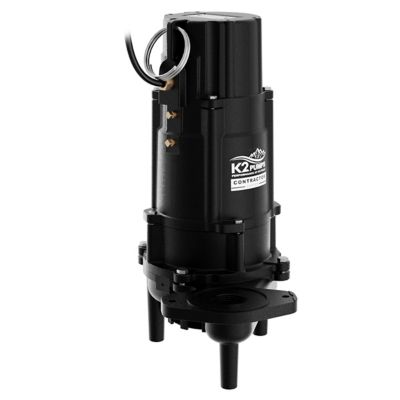

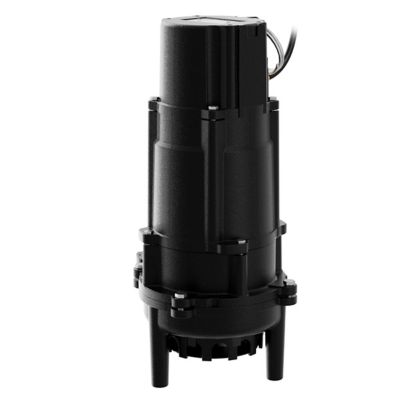

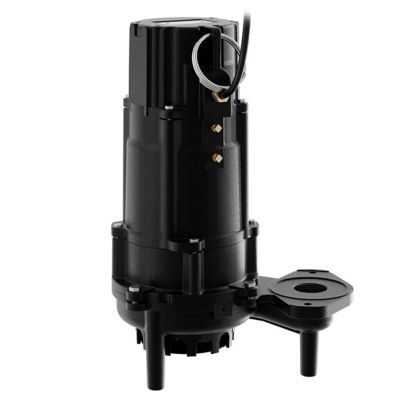

K2 Pumps 1/2 HP Contractor Series Cast Iron Effluent Pump, 115 Volt, SWF05004K
K2 Pumps 1/2 HP Contractor Series Cast Iron Effluent Pump, 115 Volt, SWF05004K
Item # 2235285
$516.90
K2 Pumps 1/2 HP Contractor Series Cast Iron Effluent Pump, 115 Volt, SWF05004K
Item # 2235285
The K2 Pumps CONTRACTOR SERIES 1/2 HP Effluent Pump is designed for residential and light commercial dewatering. Handles 3/4 inch spherical solids with nonpcog vortex impeller. Manual operation. Typical applications include Onsite or Septic Tank applications, Enhanced Flow STEP systems, Dewatering and Low pressure pipe (LPP).
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Excellent for residential and light commercial dewatering
- Rugged cast iron pump housing, pump base, motor housing and impeller
- Ceramic and graphite mechanical shaft seals, stainless steel motor shaft
- Discharge flow 60 GPM at 10 ft. of head
- Maximum head 70 ft.
- 115V PSC motor, oil-cooled, 60 Hz, 3450 RPM
- 1-1/2 in. NPT Discharge with 2 in. flange
- Comes with a 20 ft. power cord
- 3 Year Warranty
| Brand | K2 Pumps |
|---|---|
| Country of Origin | Imported |
| Amperage | 15 Amp |
| Basin Diameter | 0 N/A |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Discharge Connection | Threaded Female |
| Discharge Port Diameter | 1-1/2 in. |
| Discharge Rate at 0 ft. | 61.7 GPM |
| Discharge Rate at 10 ft. | 60 GPM |
| Engine Displacement | 0 N/A |
| Features | Non clog vortex impeller, Operates up to 130 degrees |
| Horsepower | 1/2 HP |
| Hose Diameter | 1-1/2 in. |
| Impeller Material | Cast iron |
| Inlet Connection | None |
| Inlet Diameter | 7.9 in. |
| Maximum Flow Rate | 61.7 GPM |
| Maximum Head Lift | 70 ft. |
| Maximum Operating Pressure | 0 N/A |
| Maximum Operating Temperature | 130 deg. |
| Maximum Solids Diameter | 3/4 in. |
| Maximum Suction Lift | 70 ft. |
| Minimum Operating Pressure | 0 N/A |
| Minimum Operating Temperature | 32 deg. |
| Power Cord Length | 20 ft. |
| Power Type | Electric |
| Product Height | 19.49 in. |
| Product Length | 9.25 in. |
| Product Weight | 77.2 lb. |
| Product Width | 13.58 in. |
| Pump Mechanism | Centrifugal |
| Motor Type | Permanent Split Capacitor (PSC) |
| Switch-Off Height | 0 N/A |
| Switch-On Height | 0 N/A |
| Voltage | 115 V |
| Warranty | 3 Years |
| Manufacturer Part Number | SWF05004K |
