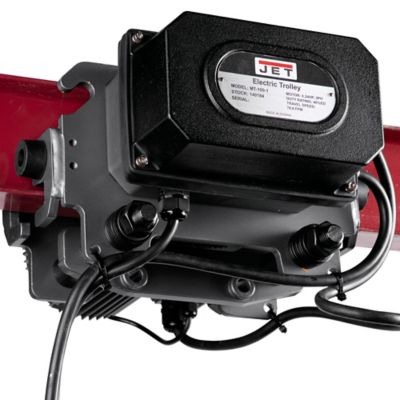

JET 3-Ton 15 ft. Lift 3-Phase TS Series Electric Hoist with 2-Speed Trolley, 460V
Limited Time Deal
Online Only
Item # 1893996
Sale
Was$13679.99
Save $1368.00
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Online Only
Item # 1893996
Sale
Was$13679.99
Save $1368.00
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The JET TS Series 3-Ton Electric Hoist with 15 ft. Lift and 2-Speed Trolley is designed and built for safety, durability and efficient operation in the toughest industrial applications. Designed with 2 speeds, this durable electric hoist can move materials quickly and safely. The electric hoist allows your material to then slow down to be placed exactly where you need it without the excessive bump firing. Equipped with a 5-pocket chain sprocket, this hoist reduces vibration and chain wear during long lowering or lifting of loads and offers smoother operation. The pendant control is also impact-resistant, fully waterproof, insulated and IP65 rated for durability.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2-in-1 design of the mechanical brake and overload protection ensure operator safety and extended product life
- DC motor brake actuates instantly in the event of a power failure to ensure operator safety
- Two speed motor ensures the correct speed for the job with a click of a button
- Electric hoist has an IP55 TEFC motor with Class F insulation for working in harsh environments
- 5-pocket chain sprocket provides reduced vibration, smoother operation and reduced chain wear during long lifting or lowering of loads
- Pendant control is IP65 rated and is fully water-proof, insulated and impact-resistant for years of service
- Built-in heat protection will not allow lifting if internal temperatures exceed 285 degrees F (+/-40 degrees); load will be allowed to be lowered until unit cools; this saves internal components and extends the life of the product
- Electric hoist comes with a 10 ft. power supply cord
- Available from 1/2 ton to 5 ton capacities
- Safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Amperage | 16.8A |
| Chain Length | 15 ft. |
| Chain Width | 0 in. |
| Features | Comes with 10ft power supply cord |
| Full Load Lifting Speed | 33 FPM |
| Full Load Lowering Speed | 5FPM |
| Hoist Mount Type | Hook mount |
| Number Of Speeds | 2 |
| Horsepower | 5 HP |
| Lift Assist Ratio | 0 |
| Lift Height | 15 ft. |
| Lift Mechanism | Other |
| Maximum Pull Length | 15 ft. |
| Maximum Weight Capacity | 6,600 lb. |
| Phase | Triple |
| Primary Material | Steel |
| Product Height | 23.622 in. |
| Product Length | 37.008 in. |
| Product Weight | 366.0 lb. |
| Product Width | 27.165 in. |
| Voltage | 460V |
| Warranty | 2 Year |
| Manufacturer Part Number | 140117K |
