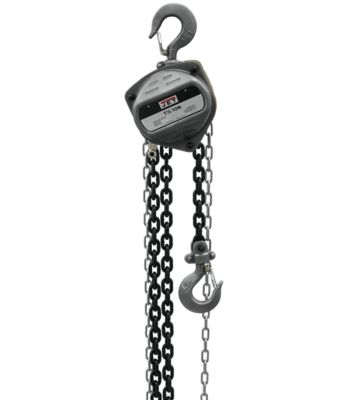

JET 1.5-Ton 30 ft. Lift S90 Series Hand Chain Hoist
Item # 1893709
Sale
Was$664.99
Save $66.50
Sale
Was$664.99
Save $66.50
The JET S90 Series 1.5-Ton Hand Chain Hoist with 30 ft. Lift is designed with all steel construction and ensures reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the hand chain hoist is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20 and 30 feet (custom lifts available). The chain hoist is the ideal contractor grade hoist. This allows the hoist to handle harsh environments with ease. Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations. See what you can accomplish with this JET hoist today.
- Grade 80 black oxide coated load chain for added durability
- Chain hoist has heat treated load plates for long-lasting use
- Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive-resistant internal parts extend the life of the hoist
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- Smaller body and lightweight design are ideal for confined areas and low headroom applications
- Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
- Chain hoist is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20 and 30 feet (custom lifts available)
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Chain Length | 30 ft. |
| Chain Pull To Lift Rated Load | 84 lb. |
| Chain Width | 0.936 in. |
| Features | Black oxide coated load chain |
| Hoist Mount Type | Hook mount |
| Lift Assist Ratio | 39:1 |
| Lift Height | 30 ft. |
| Lift Mechanism | Hand crank |
| Maximum Pull Length | 30 ft. |
| Maximum Weight Capacity | 3,300 lb. |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 8.5 in. |
| Product Length | 15 in. |
| Product Weight | 68.0 lb. |
| Product Width | 11.0 in. |
| Warranty | Lifetime |
| Manufacturer Part Number | 101923 |
