JET 5-Ton 10 ft. Lift 3-Phase SCC Series Electric Hoist, 230/460V (Pre-Wired 460V)
Item # 189394099
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 189394099
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

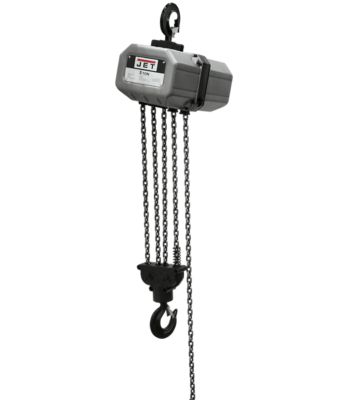

The JET SCC Series 5-Ton Electric Hoist with 10 ft. Lift combines safety and durability to operate in commercial and industrial applications. The durable electric hoist incorporates a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. The electric hoist is available in single or 3-phase configurations to suit your electrical needs. The upper and lower limiting switches help to increase safety, preventing the load chain from over traveling. Made with steel, a durable powder coat finish and Grade 80 oxide coated load chain, this hoist is ready to handle tough jobs.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Electric hoist has all steel construction for durability
- NEMA 4X compliant push button control pendants
- Electric hoist has a durable powder coat finish for long-lasting use
- Grade 80 black oxide coated load chain for durability
- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- Slip clutch design prevents the hoist from lifting damaging loads above its rated capacity
- Push button controller with cable strain relief system for durability and reliability
- Safety switch protects the hoist from incorrect wiring of the power supply
- Not rated or designed for outdoor use or wet environments
- Available in 1/2 ton to 5 ton capacities with standard lifts of 10, 15 and 20 ft. (custom lifts available)
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Amperage | 30A |
| Chain Length | 0 in. |
| Chain Width | 24mm |
| Features | Black oxide coated load chain |
| Full Load Lifting Speed | 4.9FPM |
| Full Load Lowering Speed | 4.9FPM |
| Hoist Mount Type | Hook mount |
| Number Of Speeds | 1 |
| Horsepower | 2-1/7 HP |
| Lift Assist Ratio | 0 |
| Lift Height | 10 ft. |
| Lift Mechanism | Other |
| Maximum Pull Length | 15 ft. |
| Maximum Weight Capacity | 11,200 lb. |
| Phase | Triple |
| Primary Material | Steel |
| Product Height | 21.65 in. |
| Product Length | 20.87 in. |
| Product Weight | 227.0 lb. |
| Product Width | 24.8 in. |
| Voltage | 460V |
| Warranty | 2 Year |
| Manufacturer Part Number | 531500 |
