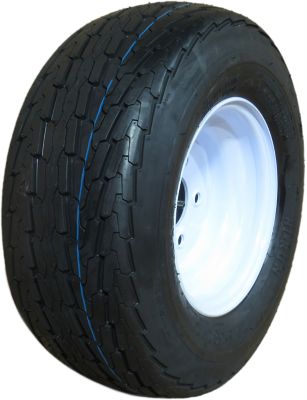

Hi-Run ASB1048 Replacement Wheel, 20.5x8.00-10

SKU # 110132299
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
Product Rating is 4.7
4.7
(35)

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options for

This item will ship within 0 days.

Item Information

This Hi-Run ASB1048 Replacement Wheel is a reliable part that will get you back on task.

  • 20.5x8.00-10
  • Maximum Load Capacity: 1,535 lb.
  • High-intensity matrix design, self-cleaning nature, wear-resistant
  • Good capability of defense against side slip
  • Applicable to all road and any weather conditions
  • Low profile tires designed to improve handling and enhance the ride characteristics of the towed vehicle
  • Mounted on a 10x6 5 lug white wheel
  • Limited warranty
  • 10 Ply

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Bolt Circle: 5-4.5 mm
Brand: Hi-Run
Lug Holes: 5
Tread Type: SU03
Tread Depth: Trailer Assembly
Product Type: Trailer Tires
Maximum Inflation Pressure: 90 PSI
Manufacturer Part Number ASB1048
Hi-Run ASB1048 Replacement Wheel, 20.5x8.00-10 is rated 4.7 out of 5 by 35.
Rated 5 out of 5 by from perfect great tire and rim combo. it fit the hub and away i went
Date published: 2019-03-01
Rated 5 out of 5 by from Fast Service from Tractor Supply This tire fits our pontoon boat and it is what we needed. Very fast delivery from Tractor Supply
Date published: 2019-02-28
Rated 1 out of 5 by from Tire loading NOT ideal - tire exploded We installed the tire on a four place open deck snowmobile trailer on Sunday evening. My mid day on tuesday (130 miles) the tire blew. The tire was replaced with a second TSC new tire. It was also getting hot, so it was replaced with a competitor load range E tire. I would stay away from this tire.
Date published: 2019-01-16
Rated 5 out of 5 by from Worked perfect I was afraid the rims may not match , but everything matched perfectly
Date published: 2018-10-31
  • y_2019, m_3, d_16, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_30
  • loc_en_US, sid_110132299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

Are these tires balance

Asked by: penut
The Hi-Run ASB1048 Replacement Wheel, 20.5x8.00-10 will be sold with the balancing already done.
Answered by: HI-RUN Product Expert
Date published: 2018-02-22

What is the bolt pattern? 5 on 5.5?

Asked by: Bfra1208
For the Hi-Run ASB1048 Replacement Wheel, 20.5x8.00-10, the bolt pattern is 5 on 4.5.
Answered by: HI-RUN Product Expert
Date published: 2019-02-04

what is the ply? what is the width?

Asked by: Redneck Ron
The HI-Run ASB1048 Replacement Wheel, 20.5X8.00-10 has a width of 8 inches and is a 10 ply.
Answered by: HI-RUN Product Expert
Date published: 2018-10-29

what is the Temperature rating on these tires? Looking for a "E" ranting

Asked by: clance
The Hi-Run ASB1048 (20.5/8-10 10PR MOUNTED ON 10X6 5-4.5 WHITE WHEEL) is a Boat Trailer tire/wheel assembly. It is designed for high speed trailers with speed up to "L" (75 miles/hour), and max loading 1535 Lbs@90 PSI. Tires usually only have speed rating and load index on the sidewall, while no temperature information marked.
Answered by: HI-RUN Product Expert
Date published: 2018-09-28

What is the diameter of the 5 bolt circle?  Also, what is the wheel offset dimension?

Asked by: TSC dude
The Hi-Run ASB1048 Replacement Wheel, 20.5x8.00-10 has a diamerter of 4.5". The wheel offset dimension is-2.5mm.
Answered by: HI-RUN Product Expert
Date published: 2018-02-26

I'm building a quad trailer it runs a 175/80D13 any ways I want to run these Hi run 20 inch tire and a 10 inch rim 5 lug on my tandem axle trailer witch It has 4 tandem axles and if I'm able to run those 20 inch tires my deck will be above the tires

Asked by: mitchellsolum
The Hi-Run ASB1048 boat trailer tire/wheel combo specs are: tire overall diameter 20.5", tire section width 8.1"; rim diameter 10", rim width 6", bolt PCD 5-4.5; max loading 1535Lbs@90PSI. The Hi-Run LZ1003 tire specs: overall diameter 23.9", section width 6.5", max loading 1360 Lbs@50PSI; and rim requirements 13" diameter, 5" rim width. So, ASB1048 tire is shorter, wider, and has a shorter but wider rim.
Answered by: HI-RUN Product Expert
Date published: 2019-03-13

Is this tire "radial" or "bias"?

Asked by: Jzebo
The Hi-Run ASB1048 Replacement Wheel, 20.5X8.00-10 is a bias Tire.
Answered by: HI-RUN Product Expert
Date published: 2017-09-15

I am from out of town and need this r replacement asap. How long does it take (shipping/delivery) to store? What is the quickest method of shipping?

Asked by: Sticksbmc
The Hi-Run ASB1048 Replacement Wheel, 20.5X8.00-10 usually takes 3 - 5 days by 'Ground' shipment to arrive at the store. The quickest method of shipping will be 'Overnight AM'.
Answered by: HI-RUN Product Expert
Date published: 2017-06-27
