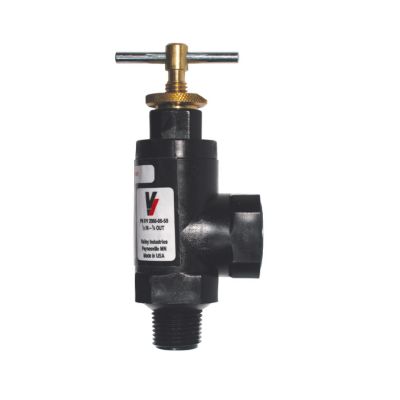

Hamilton Pressure Regulating Bypass Valve, 3/4 in. MNPT Inlet x 3/4 in. FNPT, Nylon
$39.99
Hamilton Pressure Regulating Bypass Valve, 3/4 in. MNPT Inlet x 3/4 in. FNPT, Nylon
Hamilton Pressure Regulating Bypass Valve, 3/4 in. MNPT Inlet x 3/4 in. FNPT, Nylon
Item # 2106721
$39.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Hamilton Pressure Regulating Bypass Valve, 3/4 in. MNPT Inlet x 3/4 in. FNPT, Nylon
Item # 2106721
$39.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Hamilton Pressure Regulating Bypass Valve controls the pressure for agricultural sprayers. Designed as a universal replacement, this regulating bypass valve is made of polypropylene and brass for durability. Use the bypass valve for water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Controls pressure for agricultural sprayers
- Universal replacement pressure regulating bypass valve
- 400 PSI maximum pressure rating; maximum of 15 GPM
- 3/4 in. MNPT inlet; 3/4 in. FNPT bypass valve outlet
- Backed by a 1 year warranty against manufacturer's defects
- Made of polypropylene and brass for durability
- Operating temperature of up to 120 deg. F
- Ideal bypass valve for herbicides, insecticides and pesticides
- Bypasses excess liquid while maintaining control of fluid flow
- Use for water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications
- Positive Viton seals for smooth operation and sealed connections
- T-handle adjustment screw for convenience
| Brand | Hamilton |
|---|---|
| Country of Origin | Imported |
| Compatibility | Master Manufacturing, Valley Industries, Fimco, Countyline, Workhorse, Greenleaf and Hamilton |
| Discharge Connection | Threaded Female |
| Discharge Port Diameter | 0.75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 3/4 in. |
| Maximum Flow Rate | 15 GPM |
| Maximum Operating Pressure | 250 PSI |
| Maximum Operating Temperature | 120 deg. F |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Polypropylene |
| Product Height | 2.25 in. |
| Product Length | 6.75 in. |
| Product Weight | 0.34 lb. |
| Product Width | 5 in. |
| Pump/Repair Product Type | Valves |
| Warranty | 12 Month |
| Manufacturer Part Number | RV2066-05-58-CSK |
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: which in creases pressure screwed in or out
10 months ago1 Answer
- A: Hi Neighbor- You need to rotate the T-handle clockwise10 months agoHelpful?
Q: Does changing pressure change how far it sprays
3 years ago1 Answer
- A: Please call the manufacturer at 269-781-3100 for assistance with your inquiry.3 years agoHelpful?
Q: Can I use this as a direct pressure regulator
3 years ago1 Answer
- A: This is intended as a Universal replacement for a pressure regulating bypass valve. For any other uses or recommendations, we advise you reach out to the manufacturer for guidance: 269-781-31003 years agoHelpful?
Q: What's the minimum bypass pressure
3 years ago1 Answer
- A: RV2066-05-58 will operate between 0-250 PSI.3 years agoHelpful?
Q: hOW DO YOU ADJUST TIS MODEL 2066-05-58 NYLON PRESSURE REGULATING ZALVE BEFORE I START 31/2 HP. GAS ENGINE TO START THE SPRAY WAND ????????
4 years ago1 Answer
- A: For additional product support, please contact 269.781.3100.4 years agoHelpful?
Q: What is the lowest pressure this product will regulate?
5 years ago1 Answer
- A: RV2066-05-58 will operate between 0-250 PSI.5 years agoHelpful?
Q: water safe? does that mean anything really? is this potable water safe is my question.
6 years ago1 Answer
- A: Please call the manufacturer at 269-781-3100 for assistance with your inquiry.6 years agoHelpful?
Q: Is the a "piston style" regulator
9 years ago1 Answer
- A: There is a piston in the cap that pushes down on the spring.9 years agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: which in creases pressure screwed in or out
10 months ago1 Answer
- A: Hi Neighbor- You need to rotate the T-handle clockwise10 months agoHelpful?
Q: Does changing pressure change how far it sprays
3 years ago1 Answer
- A: Please call the manufacturer at 269-781-3100 for assistance with your inquiry.3 years agoHelpful?
Q: Can I use this as a direct pressure regulator
3 years ago1 Answer
- A: This is intended as a Universal replacement for a pressure regulating bypass valve. For any other uses or recommendations, we advise you reach out to the manufacturer for guidance: 269-781-31003 years agoHelpful?
Q: What's the minimum bypass pressure
3 years ago1 Answer
- A: RV2066-05-58 will operate between 0-250 PSI.3 years agoHelpful?
Q: hOW DO YOU ADJUST TIS MODEL 2066-05-58 NYLON PRESSURE REGULATING ZALVE BEFORE I START 31/2 HP. GAS ENGINE TO START THE SPRAY WAND ????????
4 years ago1 Answer
- A: For additional product support, please contact 269.781.3100.4 years agoHelpful?
Q: What is the lowest pressure this product will regulate?
5 years ago1 Answer
- A: RV2066-05-58 will operate between 0-250 PSI.5 years agoHelpful?
Q: water safe? does that mean anything really? is this potable water safe is my question.
6 years ago1 Answer
- A: Please call the manufacturer at 269-781-3100 for assistance with your inquiry.6 years agoHelpful?
Q: Is the a "piston style" regulator
9 years ago1 Answer
- A: There is a piston in the cap that pushes down on the spring.9 years agoHelpful?
