Gate Builders 16 ft. x 6 ft. Southern Belle Curve Gate
Gate Builders 16 ft. x 6 ft. Southern Belle Curve Gate
Item # 122830399
$3399.99
or
or
Neighbor’s Club Members earn points with purchases.
$3399.99
or
or
$72/mo.† for 48 months at 0% APR or earn $169 in Rewards+ on this purchase.
Valid 5/11/2026 - 7/5/2026
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.
Add curb appeal and functionality to your home by installing the Gate Builders 16 ft. x 6 ft. Southern Belle Curve Gate. The sleek steel construction of the gate kit is protected by a powder coat finish for long-lasting durability. The convenient design of the fence kit contains everything you might need for easy installation. Setup is simple with no welding required.
Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Fence kit includes posts, adjustable hinges, hardware and gate panels for complete installation
- Finished with a heavy-gauge, zinc-primed, black powder coat for a long-lasting and low-maintenance finish
- Sleek and sturdy steel design helps boost curb appeal
- No welding required for simple setup

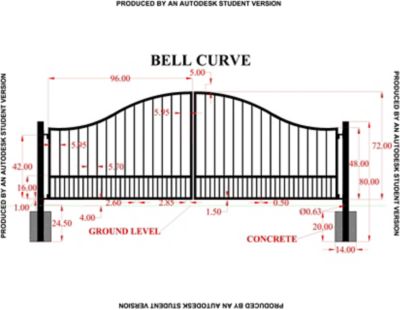

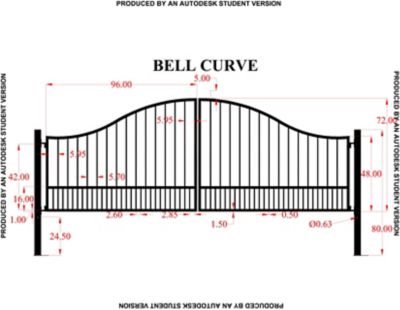

- Width of the gate kit is 16 ft. 11 in. from post to post
- Post dimensions are 4 in. x 4 in.
- Leaf dimensions are 96 in. x 72 in.
- Lifetime limited warranty on decorative metal gates
| Brand | Gate Builders |
|---|---|
| Country of Origin | Made in USA |
| Design | Decorative |
| Features | UV Resistant, Hardware Included, Stainable/Paintable |
| Finish | Powder-Coated |
| Gate Length Range | 13 - 16 ft |
| Leaf Height | 72 in. |

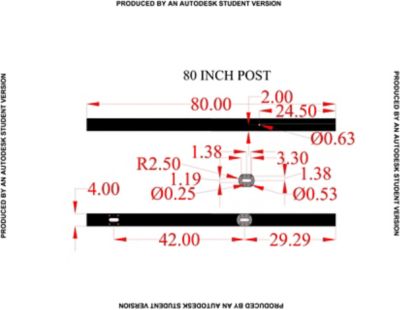

| Post Height | 80 in. |
| Post Width | 4 in. |
| Primary Material | Steel |
| Product Height | 6 ft. |
| Product Length | 16 ft. |
| Product Thickness | 11 gauge |
| Product Weight | 380 lb. |
| Warranty | Lifetime Limited |
| Manufacturer Part Number | SBC-16 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Need 20 foot gate
7 months ago1 Answer
- A: Hi Neighbor! Please contact the manufacturer. We only carry a 16ft in this style.7 months agoHelpful?
Q: Can you get this in white powder coat?
5 years ago1 Answer
- A: That option is not available on the TSC website.5 years agoHelpful?
Q: What is the combined length of the gates with hinges attached? What is the overall opening space between the 2 hinge posts when installed?
5 years ago1 Answer
- A: Please contact the vendor at 256.892.1600.5 years agoHelpful?
Q: The grease fitting threads are full of powder coat material. They should have been plugged before powder coating. What is the thread size for the grease fitting. I will have to run a tap in each hole
5 years ago1 Answer
- A: The thread is 1/4 – 28 to tap holes5 years agoHelpful?
Q: Can you tell me the weight of each leaf? I would like to know which gate opener is required. Also what is the spacing dimensions on the bottom row (width and height of rungs) and upper row rung spacing? I want to make sure the dogs cannot get out of it.
5 years ago1 Answer
- A: Each leaf is approx 250 - 300 lbs, I used the heavy duty mighty mule opener, it seams like the correct one, it works great. The upper rung spacing is 6-1/2” the lower 3-1/4”. Height on lower is 13”.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Need 20 foot gate
7 months ago1 Answer
- A: Hi Neighbor! Please contact the manufacturer. We only carry a 16ft in this style.7 months agoHelpful?
Q: Can you get this in white powder coat?
5 years ago1 Answer
- A: That option is not available on the TSC website.5 years agoHelpful?
Q: What is the combined length of the gates with hinges attached? What is the overall opening space between the 2 hinge posts when installed?
5 years ago1 Answer
- A: Please contact the vendor at 256.892.1600.5 years agoHelpful?
Q: The grease fitting threads are full of powder coat material. They should have been plugged before powder coating. What is the thread size for the grease fitting. I will have to run a tap in each hole
5 years ago1 Answer
- A: The thread is 1/4 – 28 to tap holes5 years agoHelpful?
Q: Can you tell me the weight of each leaf? I would like to know which gate opener is required. Also what is the spacing dimensions on the bottom row (width and height of rungs) and upper row rung spacing? I want to make sure the dogs cannot get out of it.
5 years ago1 Answer
- A: Each leaf is approx 250 - 300 lbs, I used the heavy duty mighty mule opener, it seams like the correct one, it works great. The upper rung spacing is 6-1/2” the lower 3-1/4”. Height on lower is 13”.5 years agoHelpful?
Similar Items
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
Customers Also Bought
-
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Reviews
- purchase
1 to 2 of 10 Reviews .
1 – 2 of 10 Reviews
Most Recent
Virginia
Review 1
3 out of 5 stars.
Poor shipping. Never received the item.
2 years ago
I never received the gate. Called customer services after days of missed delivery date and was told it would be there on Friday. I called on Tuesday and still nothing. Tracking system showed XPO delayed picking it up from supplier. I will never order from tractor supply again knowing they use XPO.
California
Review 1
5 out of 5 stars.
Nice gate
5 years ago

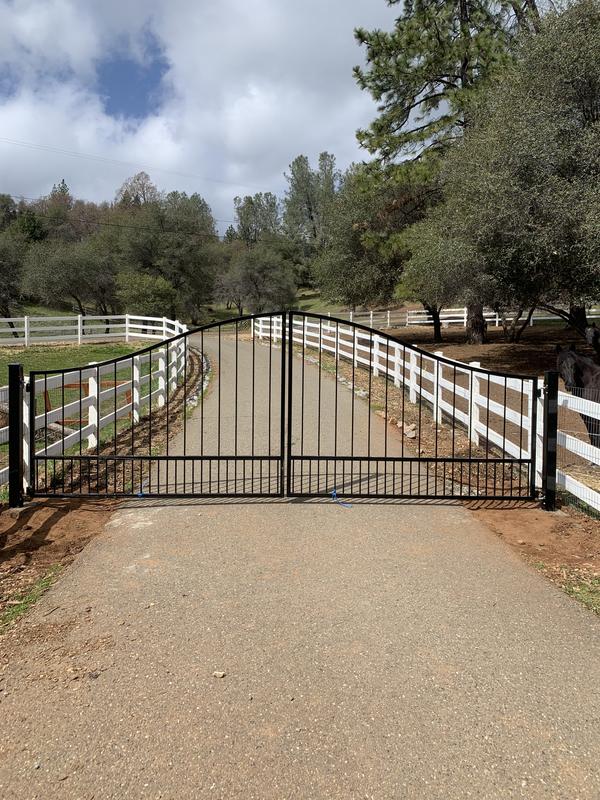

Reasonably straightforward to DIY this gate, delivered well wrapped in good condition.
Yes, I recommend this product.
