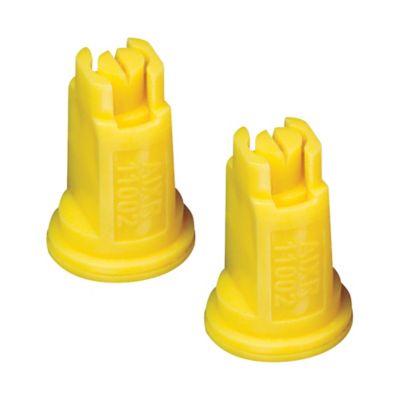

Fimco TeeJet AIXR Spray Nozzles, 2-Pack
Fimco TeeJet AIXR Spray Nozzles, 2-Pack
Item # 123426899
Neighbor’s Club Members earn points with purchases.
The Fimco TeeJet AIXR Spray Nozzles are made from a two-piece UHMWPE polymer construction with VisiFlo color-coding. With a 110 deg. wide, tapered flat spray angle, these replacement spray nozzles feature air induction technology for better drift management. The spray nozzles serve as replacement tips for 3, 4, 5 and 7-nozzle booms.
- 110 deg. wide, tapered flat spray angle with air induction technology offers better drift management
- Made of a two-piece UHMWPE polymer construction with VisiFlo color-coding
- Compact spray nozzle size prevents tip damage
- Depending on the chemical, it produces large air-filled drops through a Venturi air aspirator
- Replacement spray nozzle tips for 3, 4, 5 and 7-nozzle booms
- Automatic alignment when used with 25612 NYR Quick TeeJet cap and gasket
- UHMWPE provides excellent chemical-resistance, including acids, as well as exceptional wear life
- Comes in a pack of 2 spray nozzles
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | 114441-*-CELR Quick TeeJet Cap and Gasket |
| Connection Type | Nozzle Cap |
| End Type | None |
| Features | AIXR Air induction spray tip |
| Inlet Diameter | 0.04 in. |
| Maximum Operating Pressure | 90 PSI |
| Outlet Diameter | 0.023 in. |
| Package Quantity | 2 |
| Primary Material | Polymer |
| Product Height | 7/8 in. |
| Product Length | 5/8 in. |
| Product Weight | 0.01 oz. |
| Product Width | 5/8 in. |
| Manufacturer Part Number | 7772089 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: what is the width of spray?
10 days ago1 Answer
- A: The TeeJet AIXR11002VP nozzle tips feature a 110° spray angle, meaning the width of coverage depends on how high the nozzle is held/mounted above the target surface: Standard Boom Setup (20" height / 20" spacing): At the recommended 20-inch spray height, a single nozzle covers approximately 50 to 57 inches wide in total, with tapered edges designed to overlap evenly with neighboring nozzles spaced 20 inches apart on a boom. Single Nozzle Coverage at Various Heights: At 12" height: ~34 inches wide, at 18" height: ~51 inches wide, at 20" height: ~57 inches wide. If you are setting up a sprayer, maintaining a nozzle height around 20 inches ensures optimal pattern coverage and overlap!9 days agoHelpful?
Q: Will this make finer droplets.
a month ago1 Answer
- A: No, the AIXR nozzles are actually designed to produce coarser, air-filled droplets specifically to minimize drift. If you need finer droplets for your application, you may want to look for standard XR or Turbo TeeJet nozzles instead.a month agoHelpful?
Q: I have a 40 gallon/2.4 gpm/4nozzle sprayer. Spray nozzles are AIXR11002(VP?). The strainer # 5116019 on the parts list is not the 4193 PP that came in it. Is the strainer for that nozzle supposed to have a check valve and what lb. rating?
3 years ago1 Answer
- A: Hi, For such a specific question, please reach out to the manufacturer of your sprayer.3 years agoHelpful?
Q: I have a Fimco 65 gallon boom sprayer with 7 nozzles. I’ve completely lost one of the yellow boom nozzles. Do these replacements come with the washer and the filter that all of the other nozzles have ??
5 years ago1 Answer
- A: This is just the replacement tip.5 years agoHelpful?
Q: I have a Fimco 60 gallon boomless 3 head sprayer model LG-60-3PT-WP-309-BL-TSC. I use it to water plants and a large garden. What tip can I get (if any) to throw more water out of the nozzle ?
5 years ago1 Answer
- A: For other FIMCO sprayer options please contact the manufacture directly at 800-831-00275 years agoHelpful?
Q: I use the 60 gallon boomless tank with 3 sprayers. I use this to water a rather Argentina garden and grass. What tip can I use to get the most water out, without having to sit and wait for the ground to get wet ?
5 years ago1 Answer
- A: So that we can best address you question please include the model number for your tank with your inquiry.5 years agoHelpful?
Q: I have the 30 gallon trailer sprayer (model: lg-30-3n-trl 5302950) and I want to put out the maximum amount possible. Can I purchase different tips to increase output? If so, what kind. The boom has 3 tips.
5 years ago1 Answer
- A: By using the AIXR11003VP tip you would be increasing your output by 50%. You could go one step farther and use the AIXR11004VP and double your output from the AIXR11002VP(7772089) and still be in the realm of your pumps output…5 years agoHelpful?
Q: I have the 40 gal , 12 volt, 2.1 gpm -60 psi diaphragm pump 4 nozzle boom with AIXR11002VP What height should it be used to get good coverage and is there another spray tip I could change to be able to spray from a higher height like from back of gator
7 years ago1 Answer
- A: The optimum spray height for this boom and tip combination is 30 inches. TeeJet does not publish a maximum spray height. Also raising the spray height of the boom increases the risk of drift and off target damage.7 years agoHelpful?
Q: I have a 30 gallon tank with a 2.1 gallons per minute pump and two blue colored nozzles on my boom. I would like to put out mores product. What nozzles (color, item #) can I use to put out the most product?
7 years ago1 Answer
- A: You can use up to the AIXR11008VP.7 years agoHelpful?
Q: This tip does not have the output I need. What tip has the most output, gpm, that can be used as a replacement?
7 years ago1 Answer
- A: To recommend a replacement tip, I will need to know the size of your pump and the number of tips on your boom.7 years agoHelpful?
1 - 10 of 11 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: what is the width of spray?
10 days ago1 Answer
- A: The TeeJet AIXR11002VP nozzle tips feature a 110° spray angle, meaning the width of coverage depends on how high the nozzle is held/mounted above the target surface: Standard Boom Setup (20" height / 20" spacing): At the recommended 20-inch spray height, a single nozzle covers approximately 50 to 57 inches wide in total, with tapered edges designed to overlap evenly with neighboring nozzles spaced 20 inches apart on a boom. Single Nozzle Coverage at Various Heights: At 12" height: ~34 inches wide, at 18" height: ~51 inches wide, at 20" height: ~57 inches wide. If you are setting up a sprayer, maintaining a nozzle height around 20 inches ensures optimal pattern coverage and overlap!9 days agoHelpful?
Q: Will this make finer droplets.
a month ago1 Answer
- A: No, the AIXR nozzles are actually designed to produce coarser, air-filled droplets specifically to minimize drift. If you need finer droplets for your application, you may want to look for standard XR or Turbo TeeJet nozzles instead.a month agoHelpful?
Q: I have a 40 gallon/2.4 gpm/4nozzle sprayer. Spray nozzles are AIXR11002(VP?). The strainer # 5116019 on the parts list is not the 4193 PP that came in it. Is the strainer for that nozzle supposed to have a check valve and what lb. rating?
3 years ago1 Answer
- A: Hi, For such a specific question, please reach out to the manufacturer of your sprayer.3 years agoHelpful?
Q: I have a Fimco 65 gallon boom sprayer with 7 nozzles. I’ve completely lost one of the yellow boom nozzles. Do these replacements come with the washer and the filter that all of the other nozzles have ??
5 years ago1 Answer
- A: This is just the replacement tip.5 years agoHelpful?
Q: I have a Fimco 60 gallon boomless 3 head sprayer model LG-60-3PT-WP-309-BL-TSC. I use it to water plants and a large garden. What tip can I get (if any) to throw more water out of the nozzle ?
5 years ago1 Answer
- A: For other FIMCO sprayer options please contact the manufacture directly at 800-831-00275 years agoHelpful?
Q: I use the 60 gallon boomless tank with 3 sprayers. I use this to water a rather Argentina garden and grass. What tip can I use to get the most water out, without having to sit and wait for the ground to get wet ?
5 years ago1 Answer
- A: So that we can best address you question please include the model number for your tank with your inquiry.5 years agoHelpful?
Q: I have the 30 gallon trailer sprayer (model: lg-30-3n-trl 5302950) and I want to put out the maximum amount possible. Can I purchase different tips to increase output? If so, what kind. The boom has 3 tips.
5 years ago1 Answer
- A: By using the AIXR11003VP tip you would be increasing your output by 50%. You could go one step farther and use the AIXR11004VP and double your output from the AIXR11002VP(7772089) and still be in the realm of your pumps output…5 years agoHelpful?
Q: I have the 40 gal , 12 volt, 2.1 gpm -60 psi diaphragm pump 4 nozzle boom with AIXR11002VP What height should it be used to get good coverage and is there another spray tip I could change to be able to spray from a higher height like from back of gator
7 years ago1 Answer
- A: The optimum spray height for this boom and tip combination is 30 inches. TeeJet does not publish a maximum spray height. Also raising the spray height of the boom increases the risk of drift and off target damage.7 years agoHelpful?
Q: I have a 30 gallon tank with a 2.1 gallons per minute pump and two blue colored nozzles on my boom. I would like to put out mores product. What nozzles (color, item #) can I use to put out the most product?
7 years ago1 Answer
- A: You can use up to the AIXR11008VP.7 years agoHelpful?
Q: This tip does not have the output I need. What tip has the most output, gpm, that can be used as a replacement?
7 years ago1 Answer
- A: To recommend a replacement tip, I will need to know the size of your pump and the number of tips on your boom.7 years agoHelpful?
1 - 10 of 11 Questions
Similar Items
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Items You May Like
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
Customers Also Bought
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
Reviews
1 to 4 of 7 Reviews .
1 – 4 of 7 Reviews
Most Recent
Anonymous
Review 1
3 out of 5 stars.
Overpriced!!
a month ago
Works fine me but WAY overpriced!!!
Yes, I recommend this product.
Response from Fimco Industries:
a month ago
Fimco Industries
Thank you for your feedback. We’re glad to hear the nozzles are working well for you! Regarding the pricing, we want to clarify that as the manufacturer, we do not set the retail prices at Tractor Supply Co., nor do we control the pricing of components provided by third-party suppliers like TeeJet. Retailers set their own pricing based on their individual operational costs. We appreciate your honest input, as it helps us understand our customers' experience in the market.
Review 1
3 out of 5 stars.
Poor quality for the crazy price!
11 months ago
Nozzle spray pattern is blotchy at best. Very frustrating since they have doubled in price since the last time I purchased. Will be looking for a different alternative going forward.
No, I do not recommend this product.
Response from Fimco Industries:
11 months ago
Fimco Industries
Chris, not sure what is going on, as those tips should be spraying the same as your original ones. Please contact our customer service team at 800-831-0027 to help troubleshoot.
Georgia
Reviews 2
5 out of 5 stars.
Perfect Fit
2 years ago
Can always rely on TSC to have repair parts.
2023 Q4 SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
2 years ago
Fimco Industries
Thank you for your purchase of the AIXR spray nozzles from TSC and your review.
Goshen ohio
Review 1
4 out of 5 stars.
Delicate
6 years ago
The very tip of this is delicate. If the yellow plastic is nicked or deformed in any way the spray pattern is screwed and you cannot spray your crop/lawn. Buy extra ones so you don’t end up sitting with a full tank of product and
can’t spray. Ask me how I know!!!!
SweepstakesNo
Yes, I recommend this product.
