EMAX 10HP 3Phase 45CFM 100PSI 230Volt Industrial Rotary Screw Air Compressor, ERI0100003
Online Only
Item # 2343264
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2343264
This item is available online only
Out of stock delivering to
37027
This is a Big & Bulky item.
Neighbor’s Club Members earn points with purchases.
EMAX Compressors 10HP 3PH 208/230V new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer. Warranty: 1 Year Standard, extended 5 Year with maintenance kit
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Cabinet made in Italy
- Air end pump life expectancy: 60,000 hours
- 39.9 CFM @ 100 PSI, 30.01 CFM @ 145 PSI
- Start type: Wye/Delta
- Dimensions: 34.7" x 24" x 41" (LxWxH)
- Weight: 467 lbs
- Belt Drive
- Inlet Valve type: Poppet valve

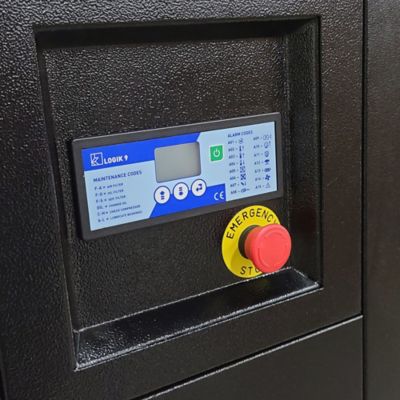

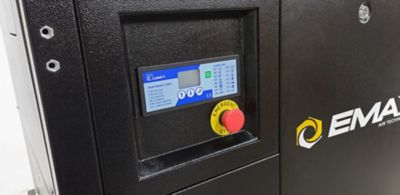

- Controller type: Logik 9
- 3/4" NPT
- Industrial electric Motor: 10HP
- 208/230V Set up
| Brand | EMAX |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 145 PSI |
| Air Outlet Size | 0.75 in. |
| Amperage | 28.8 FLA AMPS |
| Compressor Horsepower | 10 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 145 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | No Tank |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Drain System | N/A |
| Drive Type | Belt |
| Features | Controller type: Logik 9, Low Motor 1750 RPM, 60,000 hours pump life |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 41 in. |
| Product Length | 34.7 in. |
| Product Weight | 467 lb. |
| Product Width | 24 in. |
| Pump Life | 60,000 hr. |
| Pump Material | Steel |
| Tank Style | Vertical |
| Warranty | 1 Year Standard, extended 5 Year with maintenance kit |
| Manufacturer Part Number | ERI0100003 |
