Eastwood 5/16in Pneumatic Spotweld Drill
Item # 235778299
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

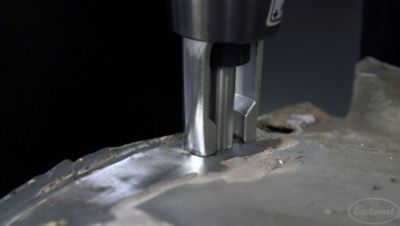

Get rid of old spot welds by drilling them out with this high-quality tool developed by our R&D guys. The Eastwood 5/16-inch (8-mm) Spot Weld Drill makes drilling out spot welds for panel removal a less tedious and much safer job. It features an automatic bit advance feature with positive spot-weld cutting depth adjustment and a removable backing hook. The set-screw drill bit retaining design provides convenient and secure cutting bit changes. Its high-torque motor requires just 4-CFM at 90-PSI, meaning you can connect it to pretty much any shop compressor. Using a spot weld drill cutter is the fastest and easiest way to strip body panels from classic cars during the restoration process. It comes with a quick connect air fitting, one bit, a screw wrench and instructions. We also sell replacement spot well drill bits if you have a big project ahead. Watch our product video below or call our experts seven days a week for technical advice.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Makes spot-weld drilling safer, faster and much easier
- Automatic bit advance feature with sturdy backing hook
- Precise cutting depth adjustment allows drilling through outer panel only with no damage to underlying panel
- Quick bit replacement. Uses Eastwood #31266 Replacement Spot Weld Bits
| Brand | Eastwood |
|---|---|
| Country of Origin | Imported |
| Air Inlet Size | 0.25 in FNPT. |
| Average Air Consumption | 4 cfm 114 lm |
| Chuck Size | 0.3125 in. 8 mm |
| Chuck Type | Keyed |
| Decibel Rating | 0 N/A |
| Drill Type | High-torque |
| Features | The Eastwood 5/16" 8mm Spot Weld Drill makes drilling out spot welds for panel removal a less tedious and much safer job! |
| Housing Material | Alloy |
| Inlet Type | NPT |
| Maximum Operating Pressure | 90 psi 6.3 bar |
| Maximum Speed | 1,600 free speed |
| Minimum Operating Pressure | 90 psi 6.3 bar |
| Orientation | Vertical/horizontal |
| Primary Color | Red |
| Product Height | 6 in. |
| Product Length | 3 in. |
| Product Weight | 3.1 lb. |
| Product Width | 14 in. |
| Recommended Hose Size | 14" FNPT. |
| Warranty | 1 year |
| Manufacturer Part Number | 31264 |
