DIG Button Drip Emitters, 1 GPH, Black, 25 pc.
Item # 319152599
Neighbor’s Club Members earn points with purchases.

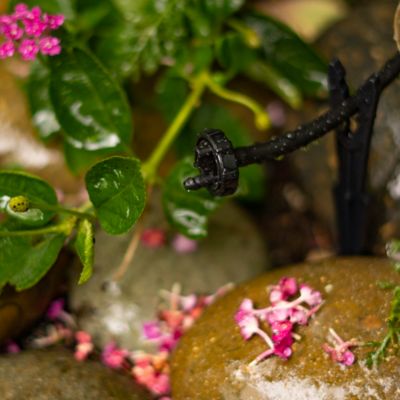

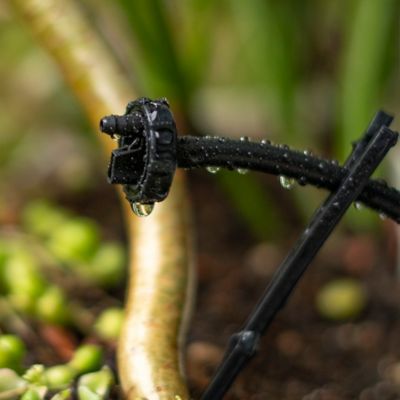

The DIG Button Drip Emitters utilize a labyrinth water flow path to provide a consistent flow rate from each dripper when subjected to an incoming pressure between 15 and 25 PSI, with higher discharge rates at higher pressures and lower discharge rates at lower pressures. These drippers are designed to be chemical and clog resistant, making them an economical option for systems with short lengths of drip tubing. To install a button drip emitter, simply punch a hole in the 1/2 in. drip tubing and snap the barbed side of the dripper into place, or use 1/4 in. micro tubing or distribution tubing to extend the drippers to the plants. However, it is not recommended to extend 1/4 in. micro tubing from the button drip emitter nipple to the plant area. To ensure optimal performance, it is highly recommended to use a 3/4 in. screen filter to prevent clogging and a 25 PSI pressure regulator to reduce the incoming pressure to the suggested operating pressure for a drip system. Drippers can be disassembled for cleaning if clogged.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 1 GPH flow rate
- Drippers operate at pressures up to 25 PSI
- Constructed of UV-resistant, durable polypropylene material to withstand the most adverse conditions
- Pack of 25 button drip emitters
- Color-coded to easily identify flow rate
- Turbulent flow through a unique labyrinth-water-passage design reduces likelihood of clogging
- Uniform flow rate
- Raised barbed outlet prevents water runoff along the drip lateral
- Inlet side: 1/4 in. barb
- Outlet side: raised nipple
- Filter requirement: minimum of 150 mesh
- Button drip emitters ensure years of consistent watering with less chance of clogging
- Recommended for residential and commercial applications, these drip emitters are a low-cost solution for an individual plant, planter boxes, small to large pots, groundcovers, shrubs and trees on short runs, level terrain or low-pressure gravity feed drip irrigation installations, and areas where conventional sprinkler systems are not practical
- Made of 2-piece construction
- Can be taken apart for cleaning, by twisting the top part of the drip emitter counter clockwise and pulling it apart
| Brand | DIG |
|---|---|
| Country of Origin | Made in USA |
| Drip Irrigation Product Type | Drip Irrigation Fittings |
| Maximum Operating Pressure | 25 PSI |
| Package Quantity | 25 |
| Primary Color | Black |
| Primary Material | Plastic |
| Product Height | 6.5 in. |
| Product Length | 0.75 in. |
| Product Weight | 0.124 lb. |
| Product Width/Diameter | 5 in. |
| Warranty | 3 Year Limited Warranty |
| Manufacturer Part Number | W221B |
