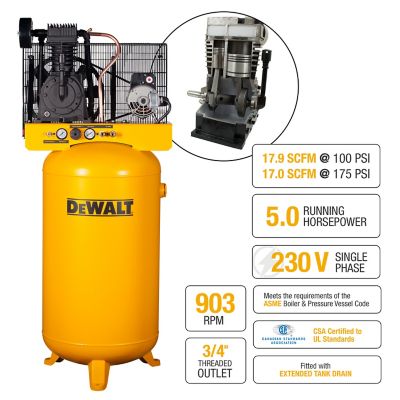

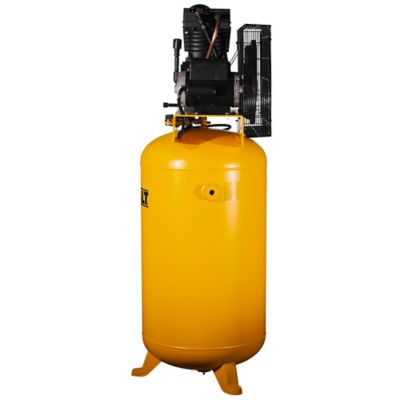

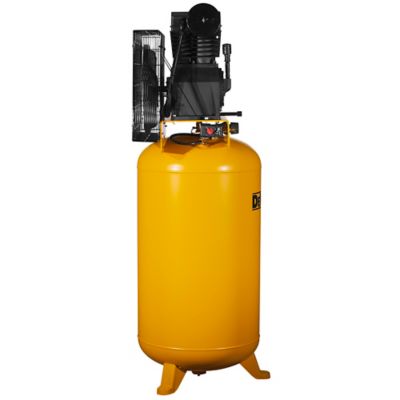

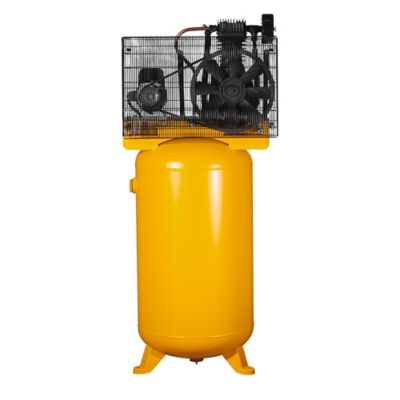

DeWALT 5.0 RHP 80 Gallon Vertical Stationary Air Compressor

SKU # 119634399
Product price

Save Up To
See Price at Check Out
No ratings found

Financing Available! Click here for more details...



Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

The two-stage DeWALT 80 Gallon ASME Vertical Stationary Air Compressor features a 5.0 RHP heavy-duty, industrial class 230V motor with a patented cast iron pump design providing a cooler running pump.

  • Delivers 175 (max.) PSI, 17.9 CFM @ 100 PSI and 17.0 CFM @ 175 PSI
  • 175 PSI (max.) pressure provides standards of dependability and reliability and longer run time on heavy consumption tools
  • Integrated control panel that includes tank and working pressure gauges, air flow regulator, two quick-connect air outlets and pressure relief valve
  • Shipped with high-performance quality compressor pump oil for optimum performance and long-life
  • 2 year limited pump warranty; 1 year all other components

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Product Type: Air Compressors
Air Outlet Size: 3/8 in.
CFM @ 90 PSI: 17 @175 PSI
Grade: Contractor
Portable or Stationary: Stationary
Product Length: 34-3/4 in.
Product Weight: 475 lb.
Power Type: Electric
Phase: Two
Brand: DeWALT
Product Width: 31-1/2 in.
Tank Type: Vertical
Amps: 25 A
CFM @ 40 PSI: 17.9 @ 100 PSI
Product Height: 80 in.
Warranty: 2-Year Limited
Tank Size: 80 gal.
Running HP: 5.0 HP
Drain System: Manual
Magnetic Starter: No
Pump Type: Cast Iron
Maximum Pressure: 175 PSI
Manufacturer Part Number DXCMV5048055

DeWALT 5.0 RHP 80 Gallon Vertical Stationary Air Compressor Is this single phase? will it work with 230 v what amp breaker

Asked by: dthd2006
Yes, this DeWalt air compressor is 230 Volt, Single Phase. It requires a 50 amp breaker.
Answered by: ProductExpert
Date published: 2017-07-31
