CURT 2 in. Receiver Adjustable Channel Mount with 2-5/16 in. Ball and Pintle, 13,000 lb. Capacity

Shop all CURT

Limited Time Deal
Online Only

Item # 2003483

$349.99

Sale

Was~~$349.99~~

Save $35.00

Neighbor’s Club Members earn points with purchases.

Shop all CURT

Limited Time Deal
Online Only

CURT 2 in. Receiver Adjustable Channel Mount with 2-5/16 in. Ball and Pintle, 13,000 lb. Capacity

Item # 2003483

$349.99

Sale

Was~~$349.99~~

Save $35.00

$53/mo.^† suggested payments with 6 Months Financing or earn $15 in Rewards⁺ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor’s Club Members earn points with purchases.

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2 x 2in. and features a ball and pintle combination to accommodate a 2-5/16 in. trailer coupler or a lunette ring with an inside diameter of 2-1/2 in. or 3 in. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. It can be raised to a maximum of 5-1/4 in. rise or lowered to a maximum of 6 in. drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 13,000 lb., allowing you to tow a variety of heavyweight trailers (limited to lowest-rated towing component). It also features two pin holes in the shank to be mounted at an 11 in. or 12 in. length. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on ball mounts and hitches? Check out our ball mount and hitch FAQs in the product documents section.

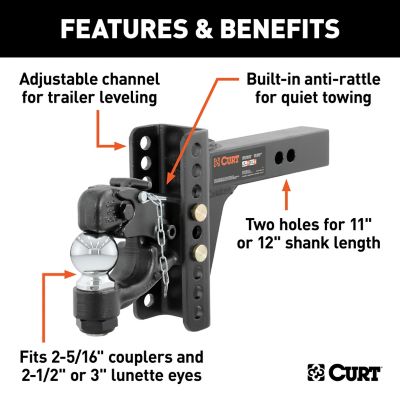

Mounts on trailer hitches with a 2 x 2in. receiver tube opening

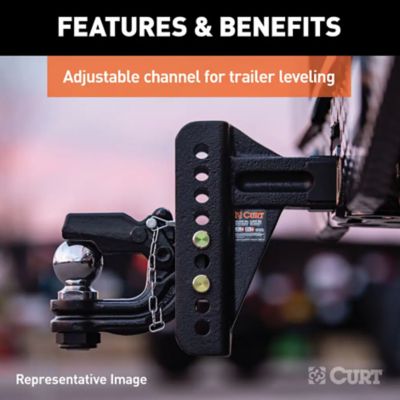

Adjustable channel mount allows for precise trailer leveling

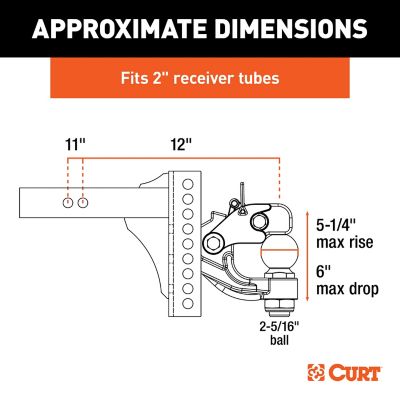

Shank can be flipped for a max rise of 5-1/4 in. and drop of 6 in.
Fits 2-5/16 in. couplers or lunette eyes with a 2-1/2 in. or 3 in. inside diameter
Spring-loaded locking arm for secure coupling
Two hitch pin holes provide shank lengths of 11 in. or 12 in.
Built-in anti-rattle helps promote quiet towing
Protected by a highly durable carbide powder coat finish

Brand	CURT
Country of Origin	Imported
Ball Mount Maximum Weight Capacity	13000 lb
Receiver Opening Size	N/A
Ball Diameter	2-5/16 in
Brand Compatibility	Other
Drop	6 in
Features	N/A
Finish	Powder-Coated
Class Rating	Other
Rise	5-1/4 in
Hitch Type	Other
Model Compatibility	Varies
Number Of Balls	1
Primary Color	Black
Primary Material	Metal
Product Height	4 in.
Product Length	12 in.
Product Weight	0 N/A
Product Width	10 in.
Tube Style	Other
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Manufacturer Part Number	45907
