Concentric 18.27 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
Concentric 18.27 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
Item # 130692199
$449.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Concentric 18.27 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
Item # 130692199
$449.99
or
or
$38/mo.† suggested payments with 12 Months Financing or earn $22 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

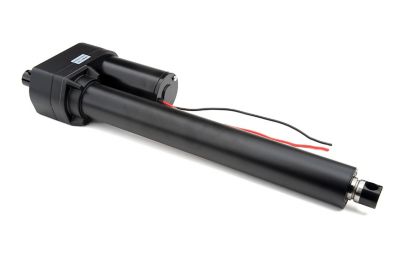

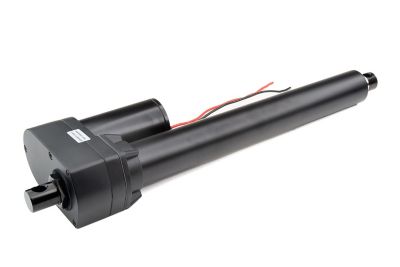

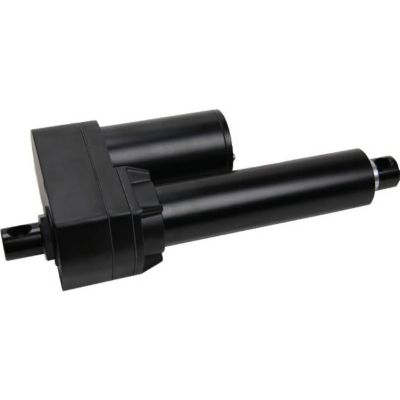

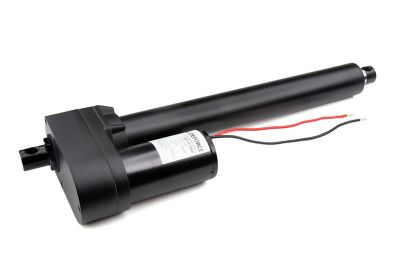

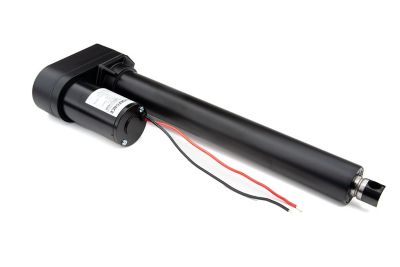

The Concentric 12VDC Linear Actuator is a gear-driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. With its compact design and numerous control and mounting options, this linear actuator is ideally suited for industrial, agricultural, automotive off-highway and other applications. The overload clutch stops the shaft when it reaches full extension.Note: This product may require up to 2 additional days for order processing prior to shipping
- Concentric linear actuator has a 110 lb. load capacity and a 550 lb. static capacity
- IP63 rated for dust protection and water resistance to guard against damage
- Linear actuator has a max load speed of .50 in./sec
- Overload clutch stops the shaft when the DC linear actuator reaches full extension
- Acme drive for optimal performance
- Potentiometer-equipped DC linear actuators can be used with the optional controller, offering the flexibility of up to 3 programmable pre-sets
- Features 6.03 in. stroke, 12.24 in. retract and 18.27 in. extend
- 28.6 mm rod diameter
- Weight: 10 lb.
- Backed by a 1-year warranty
| Brand | Concentric |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Compatibility | Industrial, agricultural, automotive off highway and other applications |
| Connector Type | N/A |
| Duty Cycle | 0 N/A |
| Dynamic Force | 0 N/A |
| Features | 0 N/A |
| Input Voltage | 0 N/A |
| Maximum Current | 0 N/A |
| Maximum Speed | 0 N/A |
| Maximum Stroke Length | 0 N/A |
| Minimum Stroke Length | 0 N/A |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Power Source | None |
| Primary Material | Metal |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 10 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Manufacturer Part Number | 139282 |
