Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity

Shop all Concentric
Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity

Item # 1306848

Concentric Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
Concentric Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
$319.99
Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity

Item # 1306848

Concentric Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
Concentric Concentric 27.75 in. 12VDC Acme Drive Linear Actuator, 110 lb. Load Capacity
$319.99

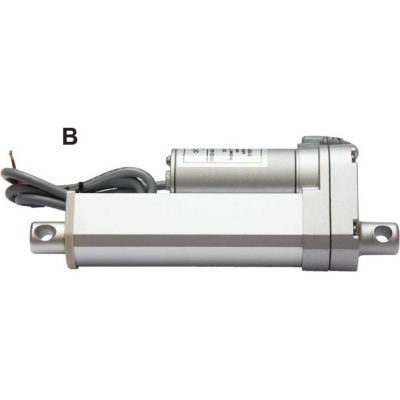

The Concentric 12V DC Linear Actuator is a gear-driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. Their compact design as well as numerous control and mounting options make these water-resistant linear actuators ideally suited for industrial, agricultural, automotive off highway and other applications. The linear actuator's overload clutch stops the shaft when it reaches full extension.Note: This product may require up to 2 additional days for order processing prior to shipping

  • 12VDC linear actuator with a 110 lb. load capacity and a 550 lb. static capacity
  • IP graded 63 total dust protection and water-resistance
  • Maximum linear actuator load speed of .50 in/sec
  • Overload clutch stops the shaft when the DC linear actuator reaches full extension
  • 11.81 in. stroke; 15.94 in. retract; 27.75 in. extended; rod diameter measures 20.0 mm; weighs 3.2 lb.
  • Acme linear actuator drive for powerful use
  • Extends a shaft used primarily to open and close devices in tight or hard-to-reach areas
  • Compact design for easy transport and storage
  • Numerous control and mounting options for versatility
  • Ideally suited for industrial, agricultural, automotive off highway and other applications
  • Potentiometer-equipped DC linear actuator
  • Optional controller offers the user the flexibility of up to 3 programmable pre-sets
