Canopia by Palram Sydney Wave Double Carport Wing Style
Item # 2439780

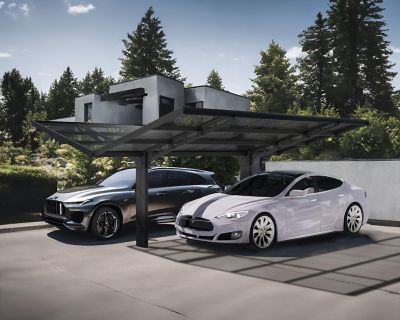

The Sydney Cantilever Carport gives you the freedom to park without extra posts. Ideal for turnaround areas or car charging stations, cantilever carports are a great way to protect your vehicle while taking up minimal space. The versatile carport kit boasts panels that transmit sunlight while still providing UV-protection and ample shade, allowing it to work as a flat top carport, patio cover, or outdoor covered lounge area. Measuring almost 10 feet wide x 20 feet long, this two-legged car shelter is engineered to withstand volatile weather conditions. The ultra resilient polycarbonate carport includes an internal gutter and is 4 in. wider than competitors. The advantage of the unique design is that the Sydney can be installed as a double carport in an apex or wing shape. Protect your vehicle from snow, hail, wind, and UV-rays in a modern and versatile parking carport. BEFORE ORDERING - Be sure to check your local building and zoning codes & guidelines and ensure that any/all appropriate permits have been acquired.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

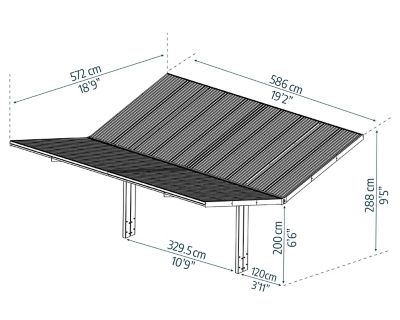

- Versatile Cantilever Carport: The flat top carport has two massive (3 x 6.5 in) posts to optimize space with overhead clearance of 6'6"-95".
- Durable Structure: Aluminum frame is a strong, rust-resistant grey-coated metal and includes integrated rain gutters to direct rainwater.
- Resilient Panels: Polycarbonate is 100% UV protected, virtually unbreakable and does not turn yellow or become brittle over time. No need to remove panels for Winter.
- UV Protection: The corrugated solar grey polycarbonate panels provide 10% light transmission, protecting your vehicles from strong sunlight exposure.
- Year-Round Weather Resistance: Wind, snow, and hail resistant. Tested to withstand winds up to 75 mph and 15 lb./ft of snow.
- Self-Assembly: Easy sliding panel system includes pre-drilled profiles and pre-cut panels making assembly as simple as possible. Concrete footing required for installation.
- Warranty: 10 Year Limited Warranty. Customers are responsible for ensuring a perfectly flat, level surface site for construction.
| Brand | Canopia by Palram |
|---|---|
| Country of Origin | Imported |
| Door Opening Height | 78.7 in. |
| Door Opening Width | 106.6 in. |
| Exterior Material | Aluminum |
| Features | Integrated rain gutters to direct rainwater |
| Frame Material | Aluminum |
| Highest Clearance | 113.4 in. |
| Maximum Roof Load | 13.31 lbsq ft |
| Maximum Wind Resistance | 75 mph |
| Number Of Cars Supported | 2 |
| Number Of Entrances | 4 |
| Number Of Windows | 0 |
| Product Height | 113.4 in. |
| Product Length | 231.1 in. |
| Product Weight | 957.5 lb. |
| Product Width | 225.2 in. |
| Roof Color | Gray |
| Roof Material | Polycarbonate |
| Storage Capacity | 361 sq ft |
| Door Type | None |
| Warranty | 10 Years |
| Manufacturer Part Number | HG9091 |
