Torin 12-Ton Big Red Hydraulic Welded Bottle Jack, Red

Shop all Torin

Limited Time Deal

Item # 11646199

$44.99

Sale

Was~~$49.99~~

Save $5.00 (10%)

Spend $49.99 to unlock free delivery!

Add a protection plan

Powersport plans are not available in CA & MD.

Get everything you need

4.1(22)

Torin 12-Ton Big Red Hydraulic Welded Bottle Jack, Red

$44

.99

$49.99

Save (10%)

4.2(75)

Torin 6-Ton Capacity Ratchet Action Jack Stand

$49

.99

4.4(32)

Torin 20-Ton Big Red Bottle Jack

$64

.99

4.7(11)

Traveller 20 in. Lug Wrench, Chrome, SAE

$24

.99

Neighbor’s Club Members earn points with purchases.

Shop all Torin

Limited Time Deal

Torin 12-Ton Big Red Hydraulic Welded Bottle Jack, Red

Item # 11646199

$44.99

Sale

Was~~$49.99~~

Save $5.00 (10%)

Spend $49.99 to unlock free delivery!

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Add a protection plan

Powersport plans are not available in CA & MD.

Get everything you need

4.1(22)

Torin 12-Ton Big Red Hydraulic Welded Bottle Jack, Red

$44

.99

$49.99

Save (10%)

4.2(75)

Torin 6-Ton Capacity Ratchet Action Jack Stand

$49

.99

4.4(32)

Torin 20-Ton Big Red Bottle Jack

$64

.99

4.7(11)

Traveller 20 in. Lug Wrench, Chrome, SAE

$24

.99

Neighbor’s Club Members earn points with purchases.

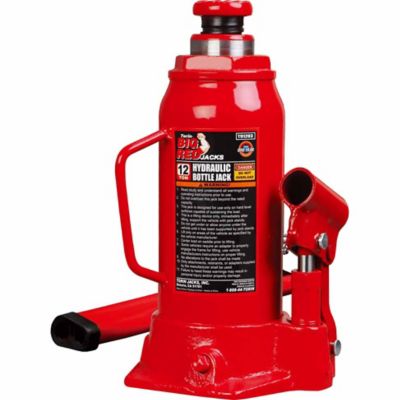

The Torin Big Red 12-Ton Hydraulic Welded Bottle Jack is engineered using a drop forged alloyed steel construction that will keep the fully welded structure leak free is designed for hard-hitting commercial use, making large loads easy to lift. The lightweight bottle jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. This powerful hydraulic welded jack has a high-quality glide-action pressure pump designed to lift with minimal muscle and effort. The robotically welded inner/outer structure and drop forged steel construction will keep your jack leak free and will give an overall stronger build. An integrated built-in oil-bypass and overload valve protects the hydraulic system from extending beyond its travel limits. The treated cylinder rams give this bottle jack a longer lasting seal life for increased performance. Great for military applications, agricultural and industrial atmospheres, where equipment receives heavier abuse. This unit is 100% factory tested for reliability and safety to meet ASME safety standards.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Great for use at home and in the shop
Lifting Capacity: 24,000 lb.
All critical stress points on the welded bottle jack are reinforced for added durability and dependability
Integrated bypass and overload valves
Lead-free paint is applied to the bottle jack after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life

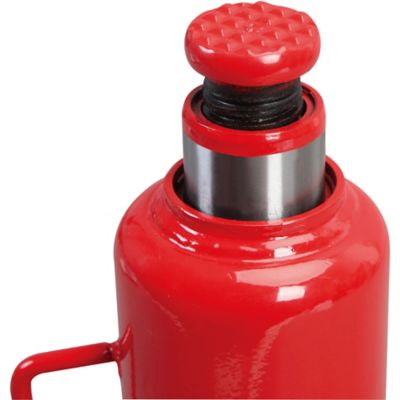

Piston-ram is treated, hardened, and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift

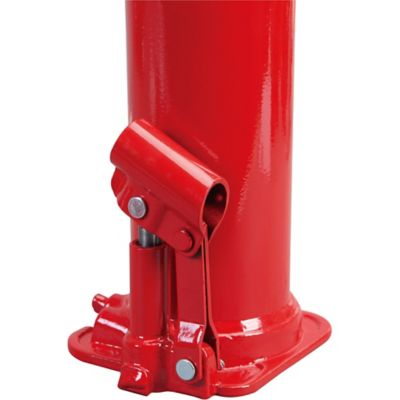

Hydraulic pump is constructed of drop forged steel which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Knurled heat-treated pad with extension screw height adjustment for versatility
Lifting handle is sectional and connects quickly making storage easier
Convenient steel carrying handle makes it easy to transport the hydraulic welded bottle jack
Wide, rugged base of the bottle jack adds stability and strength
Built-in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets and complies with ASME safety standards
What's Included: one jack, one handle and one manual
Heat treated extension screw allows low pickup height adjustment and maximum lift height
Serrated, heat treated saddle provides generous lifting area and secure grip
1 year limited warranty

Brand	Torin
Country of Origin	Imported
Base Length	6-1/2 in.
Base Width	10-7/16 in.
Features	Features a lifting range of 9 in. to 18 in. with a 12 ton (24,000 lb.) capacity; Adjustable screw top extension adds versatility
Hoist Lift Height	5.91 in
Hoist Weight Capacity	24000 lb
Length Of Stroke	9 in.
Mechanism Type	Hydraulic
Minimum Lift Height	9 in.
Package Quantity	1
Primary Color	Red
Primary Material	Steel
Product Height	9 in.
Product Length	6-1/2 in.
Product Weight	14.33 lb.
Product Width	10-7/16 in.
Warranty	1 Year Limited
Manufacturer Part Number	T91203B

Q&As

1 - 8 of 8 Questions

Q: Can this Jack be used horizontally?

a year ago

1 Answer

A: Hello, thank you for your question. Per the manual, "This Bottle Jack is designed for lifting. The jack can be used vertically or angled to 3 degrees from vertical position. After lifting, loads must be immediately supported by jack stands. Each model is suitable for use in lifting or positioning vehicles, machinery, houses and/or other building structures. These jacks comply with ASME PASE Standards."
a year ago
Helpful?

Q: Can I use it to change a tire on my car?

a year ago

1 Answer

A: Hello, thank you for your question. Per the vendor, "Yes, will work depending on how high their frame is to reach. It will be slow but will work."
a year ago
Helpful?

Q: Is it possible to unscrew the cap on the top of the jack? I have a puck to raise my EV and the diameter on top of the jack is too wide for the puck.

3 years ago

1 Answer

A: Hi, For such a specific question, please reach out to Torin directly at ****TORIN*** https://www.torin-usa.com/customer-support/contact-us.html OR Toll Free Number 1-888-44-Torin
3 years ago
Helpful?

Q: Where is it imported from?

4 years ago

1 Answer

A: 100% made in China
4 years ago
Helpful?

Q: the manual says this jack must be lubricated with hydraulic jack oil. Does the unit come already filled with jack oil - or must it be added to use for the first time?

5 years ago

3 Answers

A: Pre filled
5 years ago
Helpful?

Q: I ordered this - because the specs say base width 10 inches. The actual width of the bottom of the unit is 5 1/4 inches and the length (height)of the unit is more like 9 inches. Please expain the 10 inch spec?

5 years ago

1 Answer

A: Product Weight 14.33 lb. Product Length 6-1/2 in. Base Length 6-1/2 in. Base Width 10-7/16 in. Extended Height 18-1/8 in. Maximum Product Height 18-1/8 in. Maximum Weight Capacity 12 tons Minimum Product Height 9-1/16 in. Product Height 9-1/16 in. Product Width 10-7/16 in.
5 years ago
Helpful?

Q: What is the length of stroke>

6 years ago

1 Answer

A: The stroke of this Hydraulic Welded Bottle Jack can be divided into two parts. One is the piston, the stroke of this part is 150 mm. The other part is that top screw part, it can be lifted by 80 mm.
6 years ago
Helpful?

Q: What diameter is the ram?

8 years ago

1 Answer

A: The top of the ram is 1 and 1/8 inches. The cylinder raising that top is slightly wider at 1.25 inches. The base of the unit is roughly 3.5" x 4.5" and is approximately 9" tall before raising ram.
8 years ago
Helpful?

Reviews

Rating Snapshot

Select a row below to filter reviews.

15 reviews with 5 stars.

2 reviews with 4 stars.

1 review with 3 stars.

0 reviews with 2 stars.

4 reviews with 1 star.

Overall Rating

4.1

5 out of 7 (71%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

1 to 4 of 22 Reviews .

1 – 4 of 22 Reviews

Anonymous

Review 1

5 out of 5 stars.

Nice little botle jack

9 months ago

Does what it should, works well

Anonymous

Panama City Florida

Review 1

5 out of 5 stars.

Great product

a year ago

Great quality item

SweepstakesYes

Yes, I recommend this product.

Leavenworth, KS

Review 1

5 out of 5 stars.

Awesome 12T Bottle Jack

2 years ago

Compact size, but rated for 12T, much more than I actually need. Having said that, enabled me to change my travel tire in my driveway without any difficulty at all. I’m completely satisfied with the quality construction of the product, and the ease of use. Overall, a great product for the price and now, an indispensable part of my load plan for my camper.

Yes, I recommend this product.

Old Orchard beach maine

Review 1

1 out of 5 stars.

Does not work when needed

2 years ago

purchased the 12 ton jack for use in our RV obviously not heavily used. Purchased about a year ago. went to use it 2 days ago and once the load was on it it did not lift. went to the Scarborough Maine store to exchange it. The store clerk/ manager asked me if it was under 30 days, or we Purchased a extended warrantee. we did not. all they said was there was nothing they could do. not a big ticket item but to be used in an emergency only to not work. Disappointed in the Jack and Tractor supply

2023 Q4 SweepstakesYes

No, I do not recommend this product.
