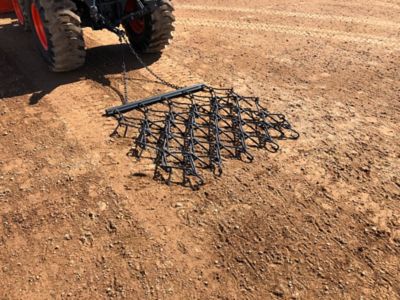

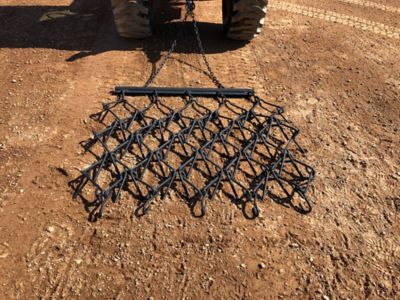

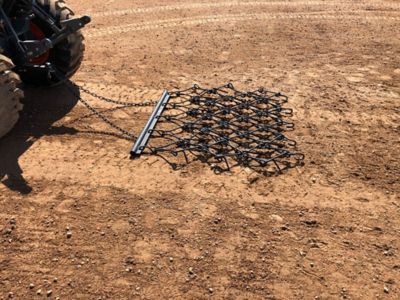

Loyal ATV 4 ft. x 4 ft. Chain Harrow with 4 ft. Drawbar, H4X4

Enter Zip Code for price More Info

Sale Save Up To

See price at checkout

Financing Available Learn More

Loyal H4X4 ATV Chain Harrow with 4 ft. Drawbar are ideal for resurfacing gravel roads and lots, grooming arenas, aerating lawns, working in fertilizer and seed into food plots, and so much more! Whether you're a landowner, groundskeeper, or contractor, these ATV Harrows will be your most versatile tool. The pasture drag harrow is designed to be used all year. In the Spring, stand matted grass up to stimulate rapid green up, pull leaves out of low spots, and aerate lawns before feed & seed. In summertime, break up soil crusts on new seed beds without damaging young plants, rake pastures to scatter manure droppings and stimulate grass growth, and rake & smooth dirt paths, gravel driveways and athletic fields. Fall is a great time to shred dry leaves, aerate and de-thatch a lawn, and do some minimum till work. In the winter you can break up ice crust, fluff/smooth snow on trails, and help to maintain corrals and indoor arenas.

  • Only requires 2 HP per foot of width
  • Pull forward for deep penetration, back for light, or turn over to drag
  • Stand matted grass up to stimulate rapid green-up
  • Pasture drag harrow can help you shred dry leaves
  • Loosen and smooth paths and driveways
  • Fluff, dry and level tracks, ball diamonds, etc.
  • Prepare nicer seed beds and work in fertilizer and seed
  • Unique construction allows tines to follow every contour of your ground for maximum coverage
  • Special design prevents tines from spreading apart in center, and heavy residue is quickly surfaced without clogging or bunching
  • Stronger 1/2 in. dia. tines (5 in. L) are cold-formed from high-carbon steel to eliminate breakage
  • 54 tines per drag harrow are offset to avoid ridges
  • 4 ft. to 14 ft. width & 3-point lifts
  • Includes a heavy-duty, reinforced steel drawbar with a 5/16 in. chain with a ring-type hitch
  • Compact storage lets you roll up sections or hang it on wall
  • Made in the USA
  • 1-year limited warranty

Additional Product Information
The quantity requested exceeds available inventory.
Store:  Change Store
Please lower quantity or check availability at nearby stores
Check availability at nearby stores
Call Store for availability or check availability at nearby stores
Curbside / Pickup In Store
Items Shipped to Store may incur freight charge.
 Available for Pickup Today
Check availability at nearby stores

Curbside / Pickup In Store

  Change Store Item is currently not available for Pickup at this store. Check availability at nearby stores

Standard Delivery

Item is not eligible for Standard Delivery.

Standard Delivery

Item is currently not available for Standard Delivery. Check other delivery options.

Same Day Delivery

Item is currently not available for Same Day Delivery. Check other delivery options.
Curbside / Pickup and Delivery Information Click here for more details...
Add to list

Product Details

Loyal H4X4 ATV Chain Harrow with 4 ft. Drawbar are ideal for resurfacing gravel roads and lots, grooming arenas, aerating lawns, working in fertilizer and seed into food plots, and so much more! Whether you're a landowner, groundskeeper, or contractor, these ATV Harrows will be your most versatile tool. The pasture drag harrow is designed to be used all year. In the Spring, stand matted grass up to stimulate rapid green up, pull leaves out of low spots, and aerate lawns before feed & seed. In summertime, break up soil crusts on new seed beds without damaging young plants, rake pastures to scatter manure droppings and stimulate grass growth, and rake & smooth dirt paths, gravel driveways and athletic fields. Fall is a great time to shred dry leaves, aerate and de-thatch a lawn, and do some minimum till work. In the winter you can break up ice crust, fluff/smooth snow on trails, and help to maintain corrals and indoor arenas.

  • Only requires 2 HP per foot of width
  • Pull forward for deep penetration, back for light, or turn over to drag
  • Stand matted grass up to stimulate rapid green-up
  • Pasture drag harrow can help you shred dry leaves
  • Loosen and smooth paths and driveways
  • Fluff, dry and level tracks, ball diamonds, etc.
  • Prepare nicer seed beds and work in fertilizer and seed
  • Unique construction allows tines to follow every contour of your ground for maximum coverage
  • Special design prevents tines from spreading apart in center, and heavy residue is quickly surfaced without clogging or bunching
  • Stronger 1/2 in. dia. tines (5 in. L) are cold-formed from high-carbon steel to eliminate breakage
  • 54 tines per drag harrow are offset to avoid ridges
  • 4 ft. to 14 ft. width & 3-point lifts
  • Includes a heavy-duty, reinforced steel drawbar with a 5/16 in. chain with a ring-type hitch
  • Compact storage lets you roll up sections or hang it on wall
  • Made in the USA
  • 1-year limited warranty

Specifications

Specification Description
Number of Blades N/A
Warranty 1-Year Limited
Country of Origin Made in USA
Number of Tines 54
Axle Diameter N/A
Application/Use To be pulled behind ATV or Tractor
Part Number H4X4
Material Steel
Blanket Width 4 ft.
Product Weight 89 lb.
Product Height 4 in.
Product Weight 89 lb.
Tine Material Steel
Product Width 48 in.
Brand Loyal
Product Length 88 in.
Tine Length 5 in.
Blanket Length 4 ft.
Tine Diameter .5 in.
Manufacturer Part Number H4X4

Reviews

Loyal ATV 4 ft. x 4 ft. Chain Harrow with 4 ft. Drawbar, H4X4 is rated 4.6 out of 5 by 453.
Rated 5 out of 5 by from Loyal chain harrow Awesome implement....after discing up a 1/4 acre hard packed food plot area we used the harrow and atv to get garden like fine soil in half an hour. We dragged with teeth down to break up large chunks then on smooth side break those pieces up, broadcast seed and fertlizer, dragged again for seed contact and was done for the day......plot germinated in 5 days and had oats and peas up to 4=5 inches in height......by the way if your atv breaks down like mine did you can drag it with your truck or riding lanwmower which we did for another half acre plot!!
Date published: 2020-09-23
Rated 5 out of 5 by from Heavy gauge steel, works well. I just picked one of these up to smooth out a newly excavated area in my back yard and get rid of many good size rocks. The ground is very hard and packed. After only about an hour of driving around back and forth, many large rocks have been removed and the surface is improving. I haven't finished yet due to it getting dark, but so far I'm very happy with the results. I tow this behind my Polaris 500 ATV. I plan to use this for some other areas of my property, including my gravel driveway.
Date published: 2020-09-23
Rated 5 out of 5 by from A must for food plots! Very well built. Does a great job breaking up clods/chunks when pulled shanks down. Removes furrows and smooths the seed be perfectly. Covers seed nicely when pulled shanks up. At 95 lbs. it's much easier to handle than my 6'x8' chain harrow (215lbs.) but does just as good of a job. I pulled it with a 520cc Honda Foreman and the bike doesn't even know it's back there. Great for food plots in difficult to reach locations where a tractor isn't so practical.
Date published: 2020-09-22
Rated 5 out of 5 by from Loyal 4X4 chain Harrow I like this chain harrow for dragging over my garden to remove loose grass once I have harrowed it with disk harrows. I also use it with the spikes up and smooth side down to cover broadcast seeds. Has worked well for me pulling it behind UTV and also compact tractor. It seems well build
Date published: 2020-09-21
  • y_2020, m_9, d_26, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_136, tr_317
  • loc_en_US, sid_212862699, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

Questions & Answers

In question #2 it was asked if this will work on gravel driveways and you replied "no." However, in the details section of your web page for this item, it advertises that this can be used to "Loosen and smooth paths and driveways." Please explain.

Asked by: DJSco
If the entire driveway is packed down with gravel, using this harrow will likely damage the unit or the vehicle. However, if the driveway is a dirt and lose gravel mix, yes, it will help to smooth the driveway out.
Answered by: DanielB
Date published: 2017-05-26

Can I pull this behind my 12hp lawn tractor?

Asked by: Any Canada
Yes. This product may be used with this application.
Answered by: CodyP
Date published: 2019-08-12

The 3-point hitch option -- what's that SKU?

Asked by: brick road joe
There isn’t a lift kit available for an H4X4, would have to go to an H4X8 SKU #212863499 or higher.
Answered by: CodyP
Date published: 2019-08-09

What product would you recommend for smoothing out 3/4 in crushed river rock for driveway use?

Asked by: Chillman
A drag harrow will be inefficient and will either get damaged or will displace the rock. If you have the convenience of a tractor with a 3-point hitch, we recommend using a 3-point hitch roller to smooth/even out the rock.
Answered by: DanielB
Date published: 2020-02-24

I am looking for something to knock down and level out both old hardened and new soft molehills on my country lawn (3-4 acres). Would you recommend this implement and if not, which implement that Tractor Supply sells would you recommend.

Asked by: Maitreya
Yes it will work
Answered by: Alicia M
Date published: 2019-01-30

what is the weight of this product?

Asked by: Mitch D
This drag harrow is 73 lbs.
Answered by: ToriN
Date published: 2016-02-29

Could you pull this behind a riding lawnmower. Says only 2HP per foot, right....so the smallest one should work?

Asked by: kim1566
This is for use with ATVs and Tractors. It does require 2HP per foot of width, a total of 8HP. If yout lawn tractor meets those requirements then, yes it should work. However, we recommend supplying more than just 8HP otherwise you will wear out your engine.
Answered by: DanielB
Date published: 2019-04-09

Can this be pulled by hand?

Asked by: petrini
We do not recommend pulling by hand. It's 89 lbs. and requires at least 2 HP per foot of width.
Answered by: NRoberts
Date published: 2019-06-12
