Arrow Carport, 20 ft. x 29 ft. x 9 ft. Charcoal, CPHC202909
Item # 206358799
Get everything you need
Neighbor’s Club Members earn points with purchases.
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.

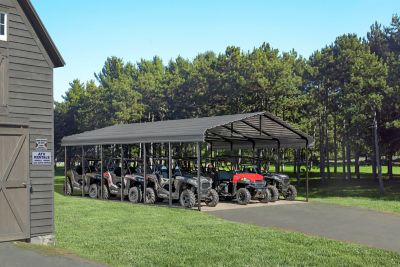

The all-steel Arrow Carport, all-weather shade and shelter solution that's versatile and practical. Use the Carport to shade your vehicle, truck, ATV, outdoor equipment, rest areas or picnic areas. Great for storing boats, picnic and outdoor furniture and summer toys in the off-season. Each Arrow Carport is wind and snow load rated, designed to take on tough weather conditions and stand up to accumulated snowfall. Its galvanized steel roof is made to protect against corrosion, rust, and the elements and features an attractive roof with a Charcoal finish. The Carport is assembled on a tough all-steel, 2 in. tube frame, made to reinforce stability and strength in the structure, and has a powder-coated finish that resists corrosion and rust. Easy to install, the Carport comes with slip-fit connections with pilot holes and self-drilling screws making this unit easy to build straight out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Featuring a 2 x 3 in. powder-coated steel tube frame, which provides stability and strength to the unit
- Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
- Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
- A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
- The roof and sidewall panels come in an attractive Charcoal finish
- Manufactured in the United States using globally-sourced materials
- Comes with a 10-year warranty
- Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
| Brand | Arrow |
|---|---|
| Country of Origin | Made in USA |
| Door Opening Height | 109 in. |
| Door Opening Width | 237.0 in. |
| Exterior Material | Steel |
| Features | Galvanized steel for corrosion resistance, Powder-coated to diminish those signs of wear and tear |
| Frame Material | Steel |
| Highest Clearance | 9 ft. |
| Maximum Roof Load | 19845 lb. |
| Maximum Wind Resistance | 100 mph |
| Number Of Cars Supported | 2 |
| Number Of Entrances | 2 |
| Number Of Windows | 0 |
| Product Height | 142.75 in. |
| Product Length | 344.5 in. |
| Product Weight | 1605.0 lb. |
| Product Width | 108.75 in. |
| Roof Color | Gray |
| Roof Material | Metal |
| Storage Capacity | 5894.0 sq. ft. |
| Door Type | None |
| Warranty | 10 Year Limited |
| Manufacturer Part Number | CPHC202909 |
Q: Is it possible to get this carport 12 feet tall?
3 months ago- A: The Arrow Carport (Model CPHC202909) has a maximum side leg height of 9 feet, though the center peak reaches approximately 12 feet.3 months agoHelpful?
Q: How do you order the sidewalk?
7 months ago- A: Hello, thank you for your question. You can find the compatible sidewall enclosure kit on the TSC website using the information below. Arrow 29 x 9 ft. Charcoal Two Sided Steel Enclosure (ECL2909CCX2) https://www.tractorsupply.com/tsc/product/arrow-29-x-9-ft-charcoal-two-sided-steel-enclosure?7 months agoHelpful?
Q: Any idea what the snow load psf is on this?
a year ago- A: Hello, thank you for your question. The Arrow Carport garage Snow rated at 35 pounds per sq. ft. ground Snow Load and Wind rated at 100 MPH. Although the Carport garage is snow load rated, we still recommend removing any accumulated snow off the structure.a year agoHelpful?
Q: Is this 9ft on the walls or to the center of the truss?
2 years ago- A: Hi, Both are 9ft. Please review the images we have a detailed image with the dimensions.2 years agoHelpful?
