This AIMS Power 5000W Modified Sine Inverter is packed with power but still small enough to fit in small spaces. This modified sine wave inverter is capable of providing up to 41.6 AC amps, which is perfect for larger pumps, tools, compressors and refrigerators/freezers. Includes V and amp meter, optional remote, AC direct connect terminal block and 4 AC receptacles. The aluminum case promotes optimal cooling. This is a great whole-house AIMS Power inverter or large RV or toy hauler inverter. Backed by a 1 year warranty.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Voltage meter on front panel of the AIMS Power inverter to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC direct connect terminal
- Over-temperature LED indicator
- Overload LED indicator
- Quadruple AC receptacle that can be used with any separate splitter to provide even more outlets
- On/off switch offers easy operation
- Over-temperature protection
- Overload protection
- AIMS Power inverter is internal fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual included
- Free 1 year tech support
- 1 year warranty parts and labor
- Single cooling fan operation is thermally controlled
- Modified sine wave inverter is capable of providing up to 41.6 AC amps
| Brand | AIMS Power |
|---|---|
| Country of Origin | Imported |
| Continuous Output Capacity | 5,000W |
| Control Type | Switches |
| Cord Length | N/A |
| Features | Low Battery Shutdown |
| Frequency Compatibility | 60 Hz |
| Inverter Power | 5,000W |
| Line Power | N/A |
| Nominal Output Voltage | 120VAC |
| Number Of Outlets | 4 |
| Outlet Type | AC |
| Output Frequency Regulation | 60 Hz |
| Peak Output Capacity | 10,000W |
| Power Source | Battery |
| Power Type | 12 Volt |
| Primary Color | Gray |
| Primary Material | Metal |
| Product Height | 6-1/8 in. |
| Product Length | 16-3/4 in. |
| Product Weight | 18 lb. |
| Product Width | 7-7/8 in. |
| Voltage | 12VDC to 120VAC |
| Warranty | 1 Year |
| Manufacturer Part Number | PWRINV500012W |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: will this work with a 12500btu roof mount air conditioner?
8 months ago1 Answer
- A: It is not recommended to use the AIMS Power Modified Sine Inverter on a roof-mounted air conditioner. While the inverter's power rating may be sufficient, the modified sine wave output can damage the air conditioner's motor over time.8 months agoHelpful?
Q: This 5000 inverter do it works with solar. What size battery do I need. I have a small shop and uses small power tools. Can you run more than one thing at a time with this converter.
4 years ago1 Answer
- A: For technical support, please contact techsupport@aimscorp.net.4 years agoHelpful?
Q: i am looking at this product providing back up power to my 1hp 220 well pump. how many batteries will i need how long will they last
4 years ago1 Answer
- A: This will NOT work with 220V power. It only provides 120V.4 years agoHelpful?
Q: Would like to run 1 or 2 1500 watt 110v oil filled space heaters like you heat a room in your home with! Was thinking of using a solar panel connected to a 12 volt battery and then to this inverter, then to the heater(s). Would this work?
4 years ago1 Answer
- A: Yes it should as long as there is enough power stored in the battery bank. If the heaters need 1500 watts each we recommend using the hard wire port on the inverter to get the full 5000 watts and account for the start up surge.4 years agoHelpful?
Q: Without the vehicle running how long could it push 5000 watts before leaving the vehicles battery dead? Also 5000 watts is a lot you can run most you house off this correct?
5 years ago1 Answer
- A: This inverter requires a minimum of 416.67 amp hours from battery. When sizing an inverter to be used in a vehicle we need to know the amp hour rating of the vehicle battery and amps of the alternator. The Alternator needs to be 1-1/2 times the DC amp draw of the inverter.5 years agoHelpful?
Q: Will this power a house a/c window unit 15000 btu
7 years ago1 Answer
- A: We size inverters based on the customer’s power needs in watts or amps and volts. We are unable to size by the BTU output.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: will this work with a 12500btu roof mount air conditioner?
8 months ago1 Answer
- A: It is not recommended to use the AIMS Power Modified Sine Inverter on a roof-mounted air conditioner. While the inverter's power rating may be sufficient, the modified sine wave output can damage the air conditioner's motor over time.8 months agoHelpful?
Q: This 5000 inverter do it works with solar. What size battery do I need. I have a small shop and uses small power tools. Can you run more than one thing at a time with this converter.
4 years ago1 Answer
- A: For technical support, please contact techsupport@aimscorp.net.4 years agoHelpful?
Q: i am looking at this product providing back up power to my 1hp 220 well pump. how many batteries will i need how long will they last
4 years ago1 Answer
- A: This will NOT work with 220V power. It only provides 120V.4 years agoHelpful?
Q: Would like to run 1 or 2 1500 watt 110v oil filled space heaters like you heat a room in your home with! Was thinking of using a solar panel connected to a 12 volt battery and then to this inverter, then to the heater(s). Would this work?
4 years ago1 Answer
- A: Yes it should as long as there is enough power stored in the battery bank. If the heaters need 1500 watts each we recommend using the hard wire port on the inverter to get the full 5000 watts and account for the start up surge.4 years agoHelpful?
Q: Without the vehicle running how long could it push 5000 watts before leaving the vehicles battery dead? Also 5000 watts is a lot you can run most you house off this correct?
5 years ago1 Answer
- A: This inverter requires a minimum of 416.67 amp hours from battery. When sizing an inverter to be used in a vehicle we need to know the amp hour rating of the vehicle battery and amps of the alternator. The Alternator needs to be 1-1/2 times the DC amp draw of the inverter.5 years agoHelpful?
Q: Will this power a house a/c window unit 15000 btu
7 years ago1 Answer
- A: We size inverters based on the customer’s power needs in watts or amps and volts. We are unable to size by the BTU output.7 years agoHelpful?
Similar Items
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
Customers Also Bought
-
-
-
-
-
Top Rated
-
-
-
-
-
-
-
Reviews
- satisfaction
- efficiency
- value
1 to 3 of 5 Reviews .
1 – 3 of 5 Reviews
Most Recent
Reviews 4
5 out of 5 stars.
Great product
5 years ago

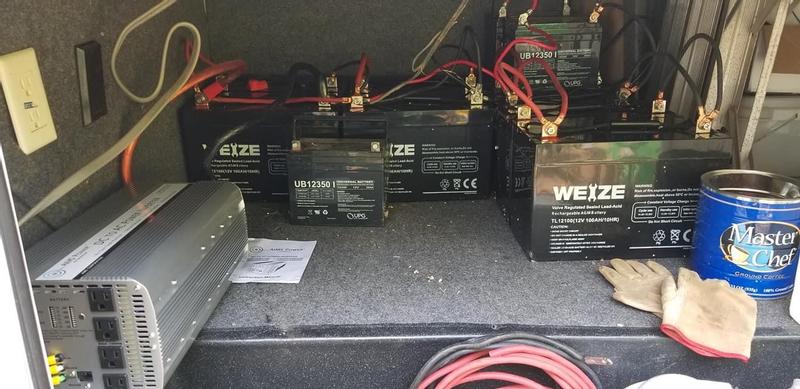

It’s great I hard wired it into the breaker box.
