Zeeline by Milton 1-60 Qt Mechanical Oil Meter with Flex Manual Tip, Premium Series
Zeeline by Milton 1-60 Qt Mechanical Oil Meter with Flex Manual Tip, Premium Series
Item # 6140888
$1359.99
Zeeline by Milton 1-60 Qt Mechanical Oil Meter with Flex Manual Tip, Premium Series
Item # 6140888
$1359.99
The ZE2560P Mechanical Quart Meter is a dependable, professional-grade fluid meter engineered for accurate dispensing of quarts with reliable totalization in gallons. Designed to stand up to frequent use, this preset meter provides clear readouts, intuitive preset functionality, and rugged construction to support demanding shop environments.

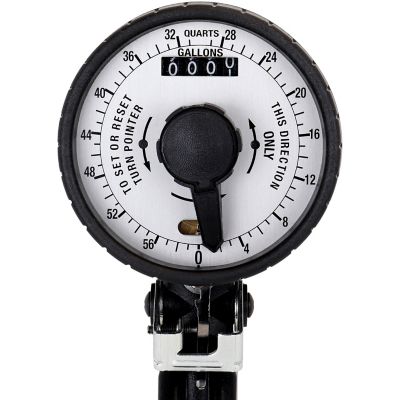

- Easy-to-Read Mechanical Dial: Large, clear dial for quick, accurate reading on every dispense.
- Non-Resettable Totalizer: Built-in totalizer displays cumulative gallons dispensed for tracking and accountability.
- Preset Dispensing: Simple preset adjustment lets you dispense specific quart quantities with confidence.

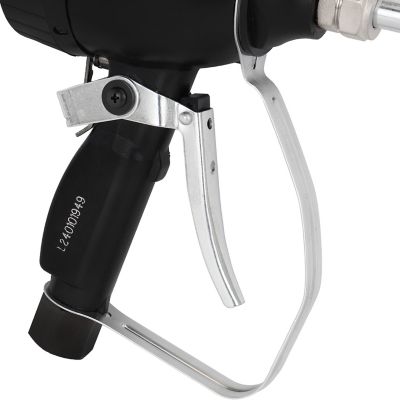

- Ergonomic Design: Comfortable grip and user-friendly trigger for efficient operation.
- Units: Graduation: 1-60 Quarts.
- Inlet/Outlet: 1/2 in. NPT.
- Minimum Flow Rate: 0.40 GPM.
- Maximum Flow Rate: 4.0 GPM
- Operating Temperature Range: -10 degrees F to 110 degrees F
- Operating Pressure Range: 5 psi to 1000 psi.
- Accuracy: + or - 0.3 %
- Dial Face Diameter / Width: 3-1/2 in.
- Nozzle: 1/2 in. Flex Hose with manual tip.
- Made in USA.
| Brand | Zeeline by Milton |
|---|---|
| Country of Origin | Made in USA |
| Compatible Fluids | Motor Oils, Heavy Oils, Gear Oil, Medium Oils, Oils, Transmission Fluid |
| Discharge Connection | None |
| Discharge Diameter | 0.5 in. |
| Features | Preset Dispensing: Simple preset adjustment lets you dispense specific quart quantities with confidence. |
| Hose Diameter | 0.5 in. |
| Inlet Connection | None |
| Inlet Diameter | 0.5 in. NPT |
| Maximum Flow Rate | 4 GPM |
| Maximum Operating Pressure | 1,000 PSI |
| Minimum Operating Pressure | 5 PSI |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 8 in. |
| Product Length | 14 in. |
| Product Weight | 5 lb. |
| Product Width | 10 in. |
| Motor Type | Mechanical Dial |
| Warranty | 2-year |
| Manufacturer Part Number | ZE2560P |
