Uniden 40-Channel 4W Compact CB Radio
Online Only
Item # 1788014
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

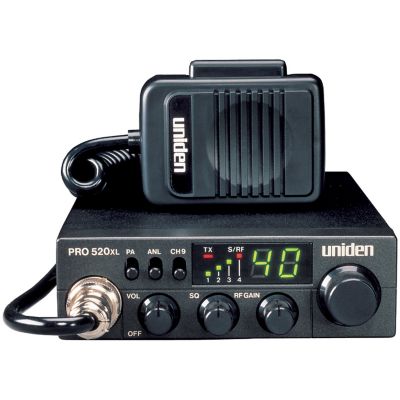

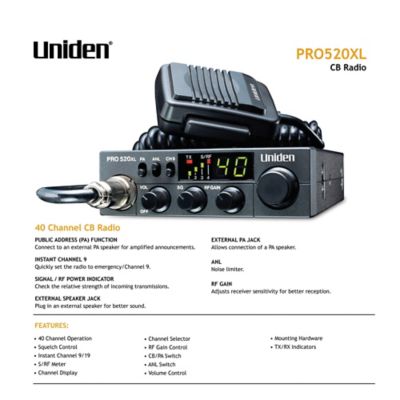

Uniden's Professional Series PRO520XL Heavy-Duty CB radio offers a full 4 watts transmit power, with RF gain control and 40-Channel operation in a compact, rugged-construction CB radio. A Signal/RF power indicator lets you check the relative strength of incoming transmissions. The 5W internal speaker provides good sound quality. The PRO520XL has a front mount 4-pin electret microphone with extra-long coiled cord, S/RF LED meter, instant emergency channel 9, transmit indicator lights, Automatic Noise Limiter switch, Public Address switch, Volume control, Squelch control, and more.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 40-channel access so you can navigate the complete range of channels for full coverage of CB stations
- Power output: 4 watts; audio output: 7 watts max. into 8 ohms
- Instant Channel 9 for quick access to emergency channels
- Frequency range: 26.965 MHz to 27.405 MHz; frequency control: Phase Locked Loop (PLL) synthesizer
- I.F. frequency: double-conversion superheterodyne
- Volume control and AGC (Automatic Gain Control) for a constant sound level; less than 10 dB change in audio output for inputs from 10 microV to 50,000 microV
- ANL noise limiter with ANL switch and squelch control fine-tune performance and eliminate noise
- Signal/RF power indicator lets you check the relative strength of incoming transmissions
- 5-watt internal speaker; external speaker jack so you can plug in an external speaker (sold separately) for better sound
- Operates on 12-volt power; antenna connector: UHF, SO-239; impedance: 50 ohms, unbalanced
- Includes front-mount microphone and hook, mounting hardware, mounting brackets and knobs, and owners manual
| Brand | Uniden |
|---|---|
| Country of Origin | Imported |
| Battery Size | None |
| Display Type | LCD |
| Frequency Band | UHF |
| Maximum Radio Range | 40 Channels |
| Number of Call Alerts | 0 |
| Number of Frequencies | 26.965 MHz to 27.405 MHz |
| Number of FRS Channels | 0 |
| Number of FRS/GMRS Channels | 0 |
| Number of GMRS Channels | 0 |
| Number of Privacy Codes | 0 |
| Package Quantity | 2 |
| Power Source | Electric |
| Primary Color | Black |
| Product Height | 7.1 in. |
| Product Length | 1.7 in. |
| Product Weight | 0.56 lb. |
| Product Width | 2.6 in. |
| Warranty | 1-year |
| Manufacturer Part Number | UNNPRO520XL |
