Reliance 36 gal. Vertical Pressurized Well Tank
Reliance 36 gal. Vertical Pressurized Well Tank
Item # 197298699
$419.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$419.99
or
or
$35/mo.† suggested payments with 12 Months Financing or earn $20 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Reliance 36 gal. Vertical Pressurized Well Tank is factory pre-charged for efficiency. The air charge valve is conveniently located for easy pressure adjustment. Butyl rubber parabolic diaphragm eliminates rubbing on the tank wall or rolling over on itself.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Fused interior water chamber, proven protection against internal corrosion
- Corrosion-resistant base, maximum life, base rotates for easy alignment to pipe connection
- Slotted and notched for maximum air flow, reduced condensation build-up
- Air charge valve is conveniently located for easy pressure adjustment
- Butyl rubber parabolic diaphragm eliminates rubbing on the tank wall or rolling over on itself
- Designer finish; high gloss exterior powder coat provides positive protection against corrosion and UV Rays
| Brand | Reliance |
|---|---|
| Country of Origin | Made in USA |
| Capacity | 36 gal. |
| Drawdown at 30 PSI | 11.2 gal. |
| Inlet Diameter | 0.75 in. |
| Maximum Water Temperature | 0 in. |
| Outlet Diameter | 0.75 in. |
| Precharge Pressure | 38 PSI |
| Primary Color | Blue |
| Primary Material | Steel |
| Product Height | 33.25 in. |
| Product Length | 20.75 in. |
| Product Weight | 45 lb. |
| Product Width | 20.75 in. |
| Tank Style | Vertical |
| Warranty | 5 Year |
| Manufacturer Part Number | 100130741 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: What is the draw down capacity of this 36 gal pressure tank?
6 months ago1 Answer
- A: Hi Neighbor- The Reliance 36-gallon well tank provides about 11.2 gallons of usable water (drawdown) when operating between 30-50 PSI, but this can vary slightly with different pressure settings (e.g., 13.3 gal at 20-40 PSI, 8.57 gal at 40-60 PSI)6 months agoHelpful?
Q: Work for 30/50 switch?
a year ago1 Answer
- A: Hi Neighbor! We would recommend a 40/60psi switch.a year agoHelpful?
Q: This is the pressure switch on this 110 Electric compatible with a 110 Electric well pump for a shallow well
a year ago1 Answer
- A: Hi Neet please work with an electrician to determine the correct tank for your wella year agoHelpful?
Q: Does this water tank work with a submersible water pump
a year ago1 Answer
- A: Hi maryannc this is recommended as a well tanka year agoHelpful?
Q: What pressure switch is recommended with the 36 gallon tank
a year ago1 Answer
- A: Hello Terry, We would recommend a 40/60psi switch.a year agoHelpful?
Q: Why is the inlet & outlet only 3/4 inch, shouldn't it be 1" to 1 1/4" ???
a year ago1 Answer
- A: Outlet Diameter 0.75 in. Inlet Diameter 0.75 in.a year agoHelpful?
Q: How many gallons on this tank?
2 years ago1 Answer
- A: Per the provided specifications: Capacity 36 gal. Drawdown at 30 PSI 11.2 gal.2 years agoHelpful?
Q: Can you mount pump on top of this tank? If do what mount do you need?
2 years ago1 Answer
- A: Please view page six of the manual for this information: https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/97/29/86/1972986_Man1.pdf2 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: What is the draw down capacity of this 36 gal pressure tank?
6 months ago1 Answer
- A: Hi Neighbor- The Reliance 36-gallon well tank provides about 11.2 gallons of usable water (drawdown) when operating between 30-50 PSI, but this can vary slightly with different pressure settings (e.g., 13.3 gal at 20-40 PSI, 8.57 gal at 40-60 PSI)6 months agoHelpful?
Q: Work for 30/50 switch?
a year ago1 Answer
- A: Hi Neighbor! We would recommend a 40/60psi switch.a year agoHelpful?
Q: This is the pressure switch on this 110 Electric compatible with a 110 Electric well pump for a shallow well
a year ago1 Answer
- A: Hi Neet please work with an electrician to determine the correct tank for your wella year agoHelpful?
Q: Does this water tank work with a submersible water pump
a year ago1 Answer
- A: Hi maryannc this is recommended as a well tanka year agoHelpful?
Q: What pressure switch is recommended with the 36 gallon tank
a year ago1 Answer
- A: Hello Terry, We would recommend a 40/60psi switch.a year agoHelpful?
Q: Why is the inlet & outlet only 3/4 inch, shouldn't it be 1" to 1 1/4" ???
a year ago1 Answer
- A: Outlet Diameter 0.75 in. Inlet Diameter 0.75 in.a year agoHelpful?
Q: How many gallons on this tank?
2 years ago1 Answer
- A: Per the provided specifications: Capacity 36 gal. Drawdown at 30 PSI 11.2 gal.2 years agoHelpful?
Q: Can you mount pump on top of this tank? If do what mount do you need?
2 years ago1 Answer
- A: Please view page six of the manual for this information: https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/97/29/86/1972986_Man1.pdf2 years agoHelpful?
Similar Items
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Items You May Like
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
-
Reviews
Summary of Reviews
The pressure tank is generally well-received, with customers finding it effective and easy to install. However, some report issues with the quality and durability of the plastic stand or base, which c...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Customer Images and Videos
- quality
- price
- returns
- staff
- value
- material
- warranty
- purchase
1 to 4 of 50 Reviews .
1 – 4 of 50 Reviews
Most Recent
Telephone Texas
Reviews 2
5 out of 5 stars.
Good tank
9 months ago
Good material, accurate description.
SweepstakesYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
great tank cheap plastic stand
11 months ago

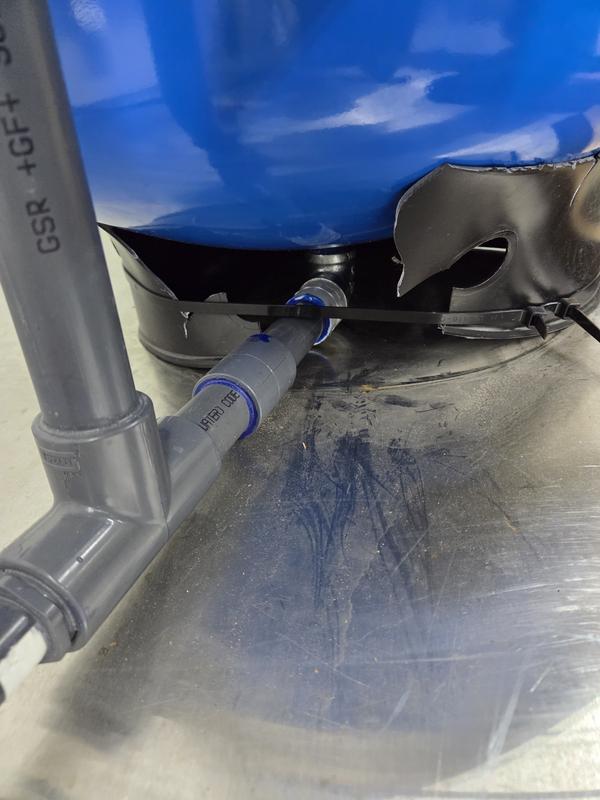

The tank is fine, but the plastic stand is junk cracks and falls apart have had to buy a new tank just to replace the bottom and it collapsed too
Review 1
1 out of 5 stars.
Tractor Supply has changed
a year ago
The tank itself is fine - serves the purpose well. My experience with Tractor Supply was not. These tanks are a necessary part of our well water system - so the need is urgent. Tractor Supply didn't stock them in any of the rural stores near me - but stocked them in a more suburban store where they charged $50 more. Not only did I need to travel further - but paid more. Tractor Supply doesn't offer the same value to rural customers that it used to.
Franconia PA
Review 1
4 out of 5 stars.
I've had it for a month, so gauge your response ac
a year ago

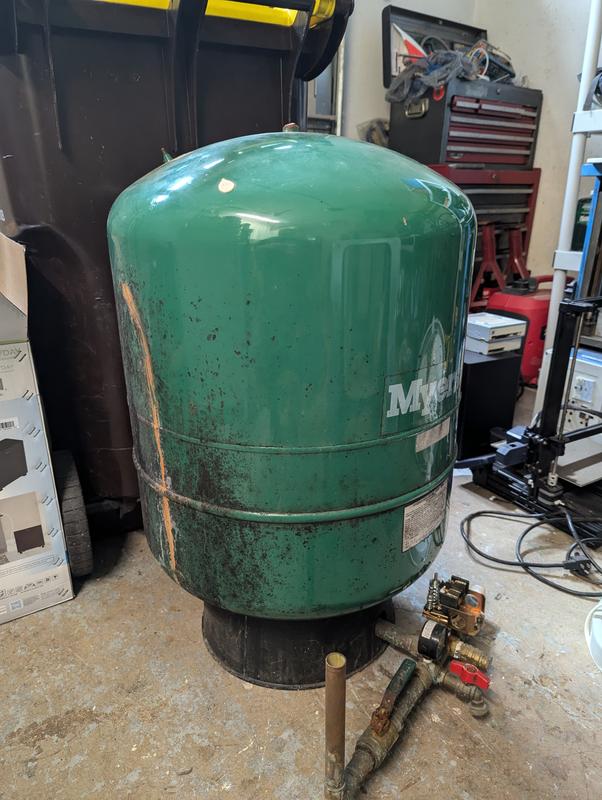

So far so good, but it's really premature to rate an expansion tank. My last one was a Myers that lasted almost 20 years. If this one blows out in less than 5, then I'd give it 2 stars at best.

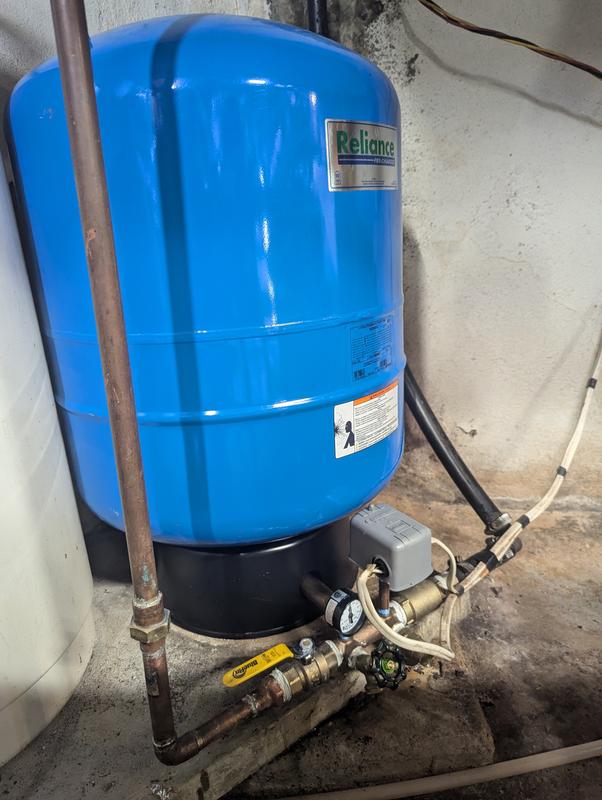

For now, it was easy to install and recharged to the perfect pressure for a 40/60 system
