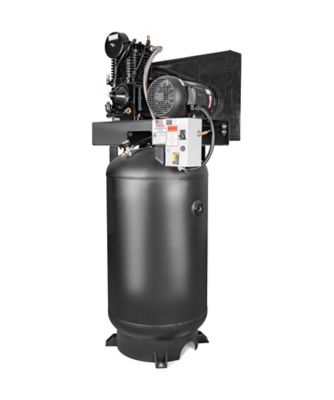

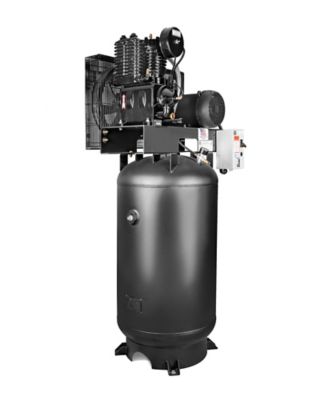

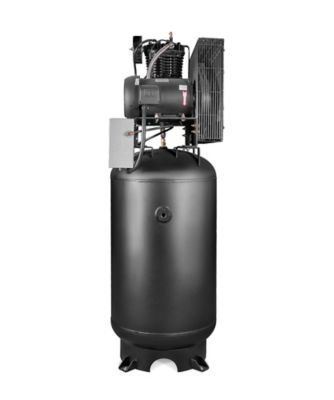

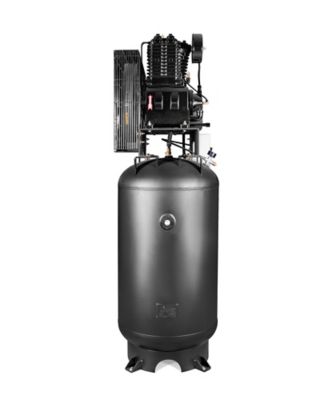

PTO Heavy Duty Equipment 7.5 hp, 220 V 80 gal. Air Compressor
New Arrival
Item # 612923699
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 612923699
This item is available online only
Out of stock delivering to
37027
This is a Big & Bulky item.
Neighbor’s Club Members earn points with purchases.
7.5 HP 23 CFM @ 175 PSI No Start-Up Kit Required Industrial Duty air compressor driven by a 7.5 HP electric motor, with a magnetic starter mounted and wired. Featuring the CA1 two-stage pump with disc and spring valves and a solid cast iron construction. 80- gallon ASME/CRN certified air receiver, and all UL/CSA electrical controls. PTO compressors are purpose built to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs and reduces long-term cost of ownership.PTO Heavy-Duty Equipment is based in Mansfield, TX. For over 45 years we've been manufacturing the most heavy-duty reciprocating compressors available. Our compressors are design to be easy to use and maintain and are built to last.
- Heavy-duty two-stage solid cast iron pump
- Disk and spring valves
- Centrifugal unloader
- Access to compressor valves without compressor head removal
- All UL electrical controls
- ASME/CRN certified air receiver
- Auto start/stop
- Bearings on both ends of the crank shaft
- Fully enclosed belt guard
- Heavy-duty air filter
- Industrial grade electric motor
- Magnetic starter mounted and wired
- Needle bearings, and inserts on rods
- Stainless steel flexible air lines
- Swedish steel valves
- TEFC drive motor (3 phase only)
- Torrington needle bearings
- 2-groove B width motor pulley
- 2-piece tank top plate design
| Brand | PTO Heavy Duty Equipment |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 23 CFM |
| Air Outlet Size | 0.75 in. |
| Amperage | 32 Amp |
| Compressor Horsepower | 7.5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Drain System | Manual |
| Drive Type | Belt |
| Features | 23 CFM @ 175 PSI |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 78 in. |
| Product Length | 21 in. |
| Product Weight | 615 lb. |
| Product Width | 26 in. |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Style | Vertical |
| Warranty | 1 Year |
| Manufacturer Part Number | ES75-80 |
