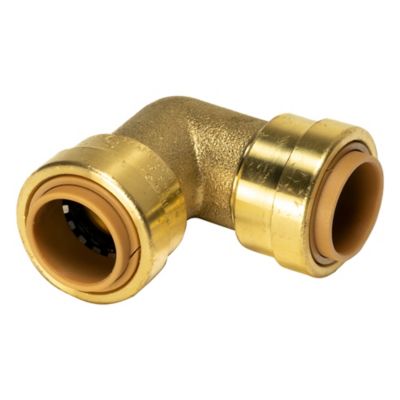

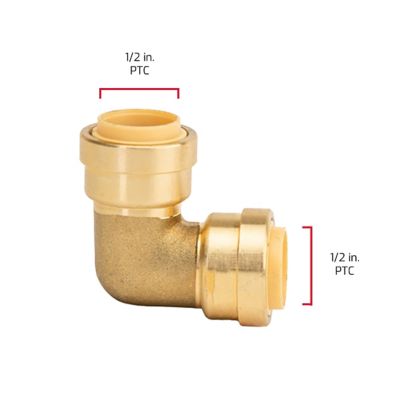

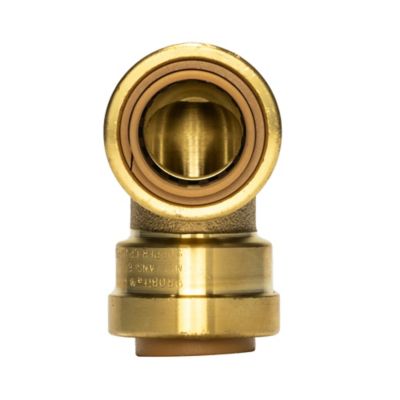

QuickFitting 1/2 in. Push-to-Connect Brass 90 deg. Elbow Fitting
Item # 1027260
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 1027260
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
QuickFitting's patented technologies offer a full range of high-quality plumbing fittings and valves that are quick and easy to install. Our push-on fittings are reusable, durable, permanent plumbing connections and get the job done 90% faster than traditional methods, including soldering. Our quick connection technology provides a simpler, safer and a more cost-effective solution for connecting Copper, PEX and CPVC piping in plumbing and heating applications. No open flames or sealants needed, just quickly clean and debur the end of the pipe, then push to connect the fitting. We raise the industry bar for push connect technology by continuing to develop and test our products to provide superior performance. Removal of our push fittings is effortless with our patented Slip Clip release tool. QUICKFITTING is a US-based company with a portfolio of over 100 patents and counting and our products are backed by a 75-year warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Professional grade lead-free brass construction

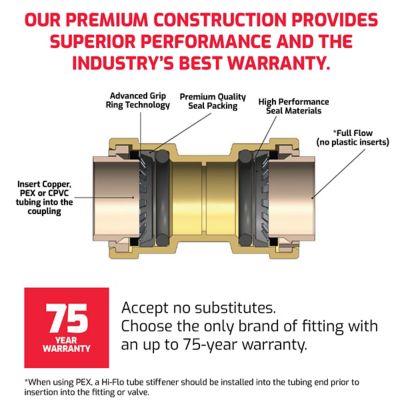

- Patented design which delivers superior sealing performance and lower insertion force
- No glues, solder, crimping, clamps or special tools required
- Maximum operating pressure 200 psi and maximum operating temperature of 200F
- Fast, trouble-free installation on copper, PEX or CPVC tubing
- Patented Slip Clip release tool (sold separately) allows for simple and quick disconnection
- Certified by IAPMO to meet ASSE 1061-2015, NSF/ANSI/CAN 61-2019 and NSF/ANSI/CAN 372-2020
- Approved for potable water applications and safe drinking water act compliant
- Tube stiffeners included in the package are intended for PEX connections only, and not needed for copper and CPVC applications
- Can be installed in wet or dry lines (system pressures should be relieved to avoid injury prior to installation)
- Fittings and valves permit 360 rotation of the pipe while the system is depressurized
- Tested and approved for underground and in-wall use (wrapping with waterproof tape recommended when burying underground)
- QUICKFITTING products withstand more than 2x the tensile strength and 3x the burst pressure of any other brand
- Save up to 90% of installation time over conventional soldering or solvent welding methods
- Ideal for indoor or outdoor plumbing, heating repair, marine repair, RV and mobile home repair and even irrigation
- 1/2 in. push fitting end = 1 in. pipe insertion depth
- 75-year warranty
| Brand | QuickFitting |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | CPVC, Copper type L hard temper, Copper type M hard temper, Copper type K soft temper, Copper, Copper type L soft temper, PEX, Copper type K hard temper, Copper type M soft temper |
| Connector 1 Size | 1/2 in. |
| Connector 1 Type | Push-to-connect/push-on |
| Connector 2 Size | 1/2 in. |
| Connector 2 Type | Push-to-connect/push-on |
| Features | Push To Connect |
| Maximum Operating Pressure | 200 PSI |
| Maximum Operating Temperature | 200 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Package Quantity | 1 |
| Pipe Elbow Angle | 90 Degree |
| Primary Color | Yellow |
| Primary Material | Brass |
| Product Length | 2 in. |
| Product Weight | 0.1375 lb. |
| Recommended Function | Water supply |
| Warranty | 75-year warranty |
| Manufacturer Part Number | LF813R |
