Prime-Line Brass Lock and Door Reinforcement Plate for 1-3/8 In. Thick Doors, Brass Finish (Single Pack), U 9537
Item # 2099503
Item # 2099503

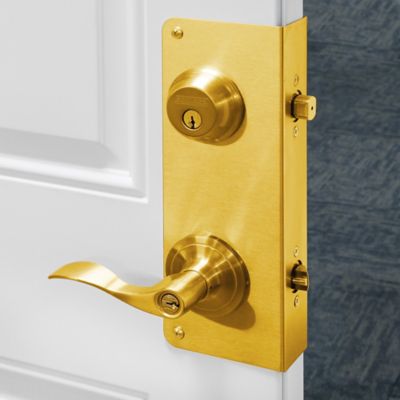

Defender Security U 9537 Brass Lock and Door Reinforcer assists in preventing forced entry by reinforcing the weak spot of an entry door. It can be used to reinforce and repair both metal and wood doors. Made of solid brass construction, the lock reinforcer plate comes finished in brass. All the necessary mounting hardware is included for a quick and easy installation. The lock reinforcement plate is pre-punched for mounting. The reinforcer is designed for 1-3/8 inch thick doors that have mortise or drive-in latches. It features two 2-1/8 inch bores that are 5-1/2 inch on center, with 2-3/8 inch backsets. The door reinforcer is non-recessed. Please refer to the line art drawing for dimensions and compare to your needs before purchasing (Not Universal).
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- ADDED SECURITY Prevent forced entry by reinforcing the weak spot of an entry door with the non-recessed door lock reinforcer; use to reinforce and repair both metal and wood doors
- BUILT TO LAST Made of solid brass construction, the door lock reinforcement plate comes in a brass finish to fit over a two bore holes on your door
- EASY INSTALLATION All the necessary mounting hardware is included with the lock reinforcement plate for a quick and easy installation; the door reinforcer plate is pre-punched for mounting
- DIMENSIONS The door lock reinforcement plate is designed for 1-3/8 inch thick doors; it features two 2-1/8 inch bores that are 5-1/2 inch on center with 2-3/8 inch backsets

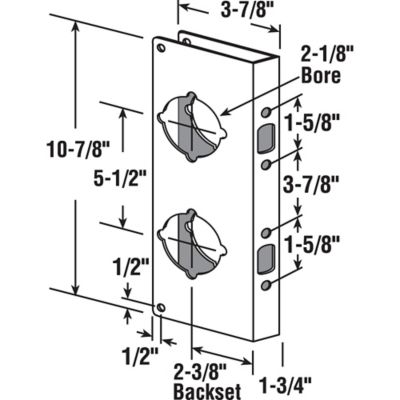

- NOTE - Please refer to the line art drawing for dimensions and compare to your needs before purchasing (Not Universal)
| Brand | Prime-Line |
|---|---|
| Country of Origin | Imported |
| ANSI Security Grade | No grade |
| Door Handing | Reversible |
| Features | None |
| Finish | Polished |
| Indoor/Outdoor | Indoor and Outdoor |
| Knob Bore Hole Diameter | 2.125 in. |
| Knob Cross Bore Diameter | 0 in. |
| Knob Diameter | 0 in. |
| Knob Housing Height | 0 in. |
| Knob Housing Width | 0 in. |
| Knob Strike Height | 0 in. |
| Knob Strike Style | Other |
| Knob Strike Width | 1.75 in. |
| Knob Throw Length | 0 in. |
| Knob Type | Knob and Deadbolt Combo |
| Knob Usage | Other |
| Maximum Door Thickness | 1.75 in. |
| Minimum Door Thickness | 1.75 in. |
| Number of Keys Included | 0 |
| Number Of Pins | 0 |
| Package Quantity | 1 |
| Primary Color | Yellow |
| Primary Material | Brass |
| Product Height | 10.875 in. |
| Product Length | 10.875 in. |
| Product Weight | 0.96 lb. |
| Product Width | 1.75 in. |
| Projection | 0.0625 in. |
| Warranty | 1 year limited |
| Manufacturer Part Number | U 9537 |
