Prime-Line Steel and Plastic Self-Closing Drawer Slide Kit for Drawer Systems, 17-3/4 in. Tracks, White, 1 Pair, MP7211
Item # 210057299
Spend $49.99 to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 210057299
Spend $49.99 to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

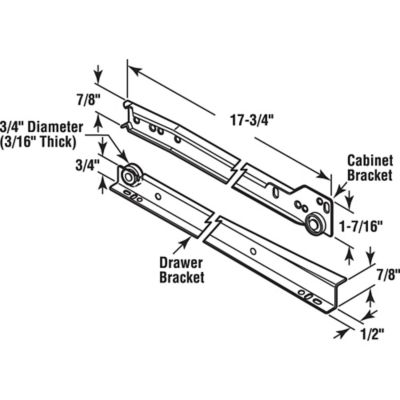

Prime-Line MP7211 Drawer Hardware Kit is perfect for installing or replacing replacement drawer track hardware on most bottom/side-mounted drawer systems for smooth functionality. This drawer slide hardware kit features a self-closing mechanism that engages during the last 2-1/2 inches of drawer closure, ensuring seamless and secure closing every time. Made of steel tracks with a white powder-coated finish and self-lubricating plastic rollers, this replacement drawer track kit is built to last and can support up to 75 lbs. Comes with all necessary fasteners and detailed instructions for simple installation. Ideal for DIY enthusiasts looking for reliable replacement drawer slide solutions. The 17-3/4 inch tracks fit 16-inch deep drawer cabinets and require specific clearances: 1/2 inch on sides, 1/4 inch at the bottom, and 5/8 inch at the top. For further dimensional information, please see the line drawing.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on screws? Check out our guide on screws in the product documents section.
- INSTALL OR REPLACE DRAWER TRACK HARDWARE Whether you are installing new drawers or repairing one that don't work properly, this fits most bottom/side-mounted drawer systems 18 inch deep. The drawer slides are constructed of steel tracks in a white finish and self-lubricating plastic rollers.
- SELF-CLOSING DESIGN The smooth-gliding tracks in the Prime-Line R 7211 kit features a self-closing design that commences at the final 2-1/2 inch from the end of the 17-3/4 inch long tracks when closing.

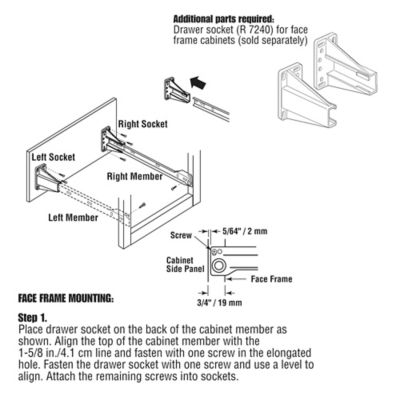

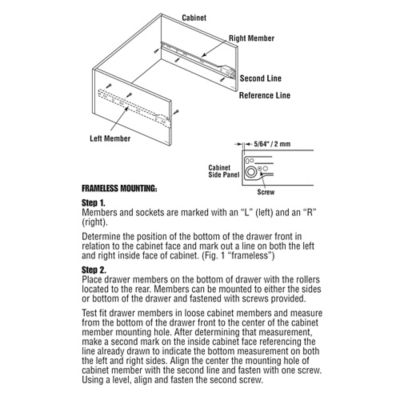

- EASY TO INSTALL Installation is quick and easy, and the kit contains all necessary fasteners. Installation instructions are included and also available on Prime-Lines website.
- 75 LBS MAXIMUM SAFE LOAD CAPACITY The maximum safe load capacity for the drawer slide kit is 75 lbs and is for use in 18 inch deep drawers. It features a positive stop in the closed position and a double stop in the open position, so it doesn't pull too far out and fall off the tracks.

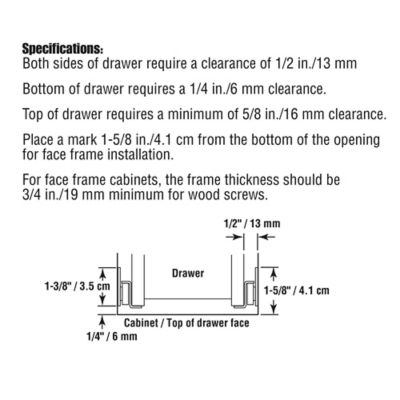

- INSTALLATION TIP The clearance required between the drawer and the drawer opening for these slides is: 1/2 inch on left and right sides, 1/4 inch at the bottom and 5/8 inch at the top.
- SPECIAL NOTE - (Not Universal) Be sure to consider installing part number R 7240 as the back bracket if your drawer does not currently have one, or is damaged
| Brand | Prime-Line |
|---|---|
| Country of Origin | Imported |
| Drive Style | Phillips |
| Head Style | None |
| Fastener Length | 1 in |
| Features | Universal |
| Finish | Powder-Coated |
| Head Diameter | None |
| Indoor/Outdoor | Indoor |
| Measurement Standard | SAE |
| Package Quantity | 1 |
| Package Weight | 1.01 lb. |
| Primary Material | Steel |
| Screw Size/Gauge | 3/4 in |
| Thread Length | 0 N/A |
| Thread Type | None |
| Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Manufacturer Part Number | MP7211 |
