Prime-Line 1 x 2in. Stamped Steel Antique Brass Plated Finish Window Flip Lock, U 9929
Item # 2100819
Item # 2100819

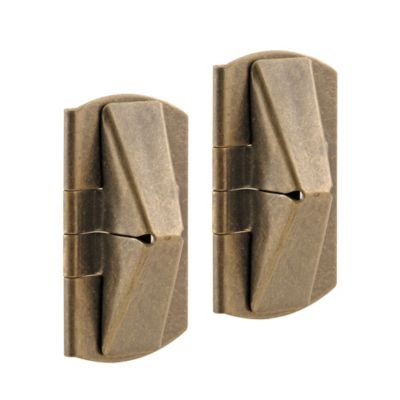

This window flip lock is constructed of stamped steel and comes in an antique brass finish. Features a simple to install, and simple to operate design for use on vertical sliding (single and double hung) wood windows. Upon mounting this lock on the stile face, towards the bottom of the upper sash, it creates a wedge between the top and bottom sash preventing the bottom sash to be lifted. The hinged wedge design can be swung opened to allow for opening of lower sash. Designed for use on single glazed/single pane vertical sliding wood windows for ventilation, or secondary locking purposes.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Double hung flip locks like these are most commonly used on wood-constructed single and double hung vertical sliding windows
- This lock features a wedge-shaped hinged flaps which are designed to stop the sash from sliding
- Universal design allows this lock to be used on windows by multiple manufacturers
- Constructed of stamped steel
- Please refer to the line art drawing for dimensions and compare with your needs before ordering
| Brand | Prime-Line |
|---|---|
| Country of Origin | Imported |
| Bore Hole Diameter | 0 in. |
| Cross Bore Diameter | 0 in. |
| Cylinder Style | N/A |
| Features | Flip design |
| Finish | Antique |
| Indoor/Outdoor | Indoor |
| Maximum Door Thickness | 2 in. |
| Minimum Door Thickness | 0.5 in. |
| Number of Keys Included | 0 |
| Number Of Pins | 0 |
| Package Quantity | 1 |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 2 in. |
| Product Length | 1 in. |
| Product Weight | 0.09 lb. |
| Product Width | 1 in. |
| Projection | 0.4375 in. |
| Strike Height | 2 in. |
| Strike Style | Other |
| Strike Width | 1 in. |
| Throw Length | 0.4375 in. |
| Warranty | 1 year limited |
| Manufacturer Part Number | U 9929 |
