Palmgren 6 in. Cross Slide Vise
Item # 118084799
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

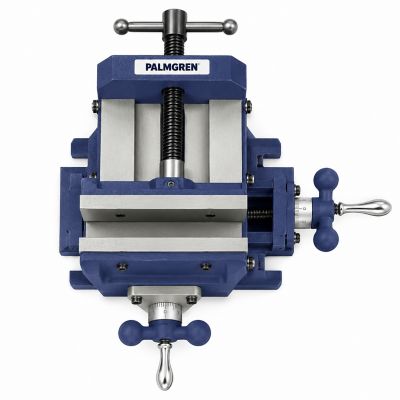

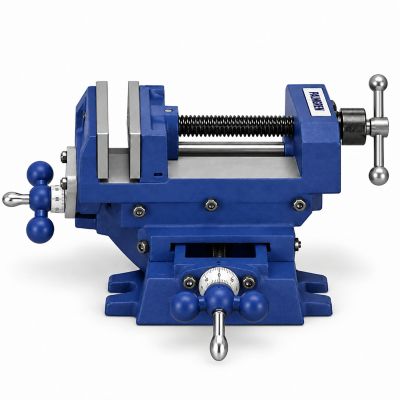

The Palmgren 6 in. Cross Slide Vise is a combination cross slide table and vise built into one that accurately moves the work two directions. The Cross Slide Vise combines a precision work-holding vise and a two-axis cross-slide table into a single heavy-duty tool. It enables rapid, accurate positioning of workpieces across both X and Y axes without repeatedly unclamping the stock. This Palmgren Vise is built from fine-grain cast iron with an open base center for holding work through the body of the vise.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Two-Axis Positioning: Features integrated feed screws allowing smooth travel along both X and Y directions to maintain squareness and alignment during operations.
- Precision Feed Dials: Dials are graduated in 0.1 mm increments for fine-tuned alignment.
- Cross Slide Travel Range: Cross slide travel is 3-1/2 in. x 4 in.
- Jaw Capacity: Features a 6 in. jaw width, a 6 in. jaw opening, and a 2 in. throat depth.
- Mounting Lugs: Built with multiple bolt lugs on the base for secure attachment to machine tables.
- Warranty: Supported by a lifetime limited warranty.
| Brand | Palmgren |
|---|---|
| Country of Origin | Imported |
| Bar Length | 6 in. |
| Clamping Strength | 0 lb. |
| Jaw Type | Non-Marring |
| Clamp Pressure | 2,000 lb. |
| Features | 6 in. Cross Slide Vise |
| Handle Length | 6 in. |
| Handle Material | Cast iron |
| Handle Shape | Straight |
| Jaw Width | 6 in. |
| Maximum Jaw Opening | 6 in. |
| Package Quantity | 1 |
| Primary Color | Gray |
| Primary Material | Cast Iron |
| Product Height | 8.5 in. |
| Product Length | 14.4 in. |
| Product Weight | 60 lb. |
| Product Width | 14.7 in. |
| Single or Double Ended | Single |
| Throat Depth | 2 in. |
| Warranty | Lifetime Limited Warranty |
| Manufacturer Part Number | 9630601 |
