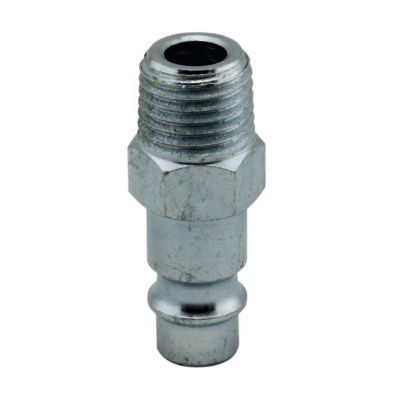

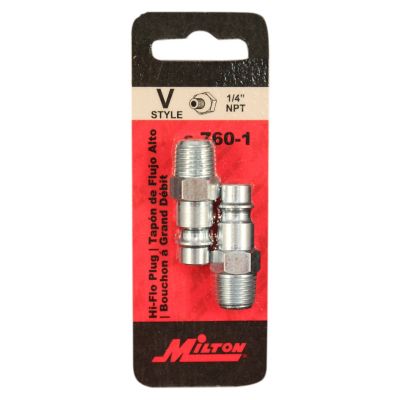

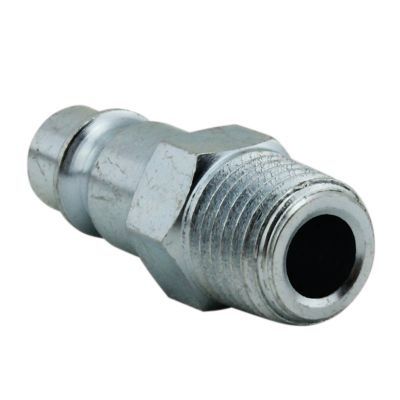

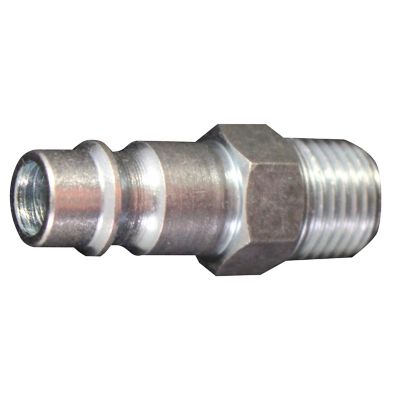

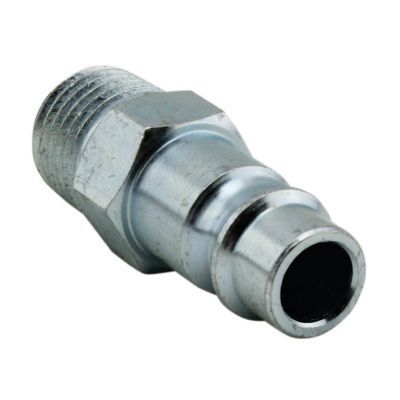

Milton HI-Flo V-Style 1/4 in. MNPT Steel Plug 2/cd
Stop starving your tools of the air they need to perform. More torque and greater speed are just a couple of the benefits possible with Milton Industries' V-Style HIGHFLOWPRO Plug. 1/4 in. NPT HIGHFLOWPRO V-Style plugs are used in applications that require high volume, low pressure. Will accept M-Style and A-Style plugs, however, to retain maximum flow use with V-Style couplers. MORE POWER WHEN YOU NEED IT: HIGHFLOWPRO couplers and plugs deliver up to 70% more flow to deliver more power to your air tools. Great for paint spray applications, sandblasting, high CFM blow guns, and more. COMPATIBILITY: ColorFit V-style couplers and plugs are compatible with traditional Milton V-style couplers and plugs, and competitor V-style couplers and plugs. All threaded connections are 1/4 in. NPT. SPECIFICATIONS: Do not exceed 300 PSI. For use with compressed air only. 1/4 in. basic flow size Air flow of up to 74 SCFM Warranty: 1 year
- HIGHFLOWPRO: V-Style couplers and plugs deliver up to 75% more air flow.
- HIGH FLOW: 1/4-in Male NPT. 1/4-in Basic Flow Size. 300 PSI Max Inlet Pressure. 74 SCFM. 250 Degree F Max Temp.
- AVAILABLE: In either Brass or Steel. (Milton S-760 for V-Style 1/4-in MNPT Steel Plug)
- IDEAL: For High Volume, Low Pressure pneumatic applications.
- COMPATIBLE: Will also accept both M-Style and A-Style plugs. V-style is recommended to retain maximum flow
| Brand | Milton |
|---|---|
| Country of Origin | Imported |
| Compatibility | Universal |
| Connector 1 Size | 0.25 in. |
| Connector 1 Type | Male |
| Connector 2 Size | 0.25 in. |
| Connector 2 Type | NPT |
| Maximum Operating Pressure | 300 PSI |
| Package Quantity | 2 |
| Primary Material | Steel |
| Product Height | 0.5 in. |
| Product Length | 4.75 in. |
| Product Weight | 0.111 lb. |
| Product Width | 3.75 in. |
| Warranty | 1-year |
| Manufacturer Part Number | S-760-1 |
