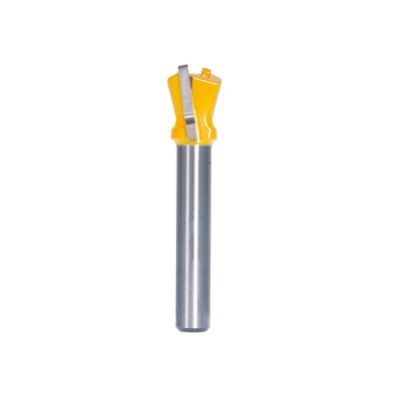

MICROJIG MATCHFIT Dovetail Router Bit (1/4 in. Shank)

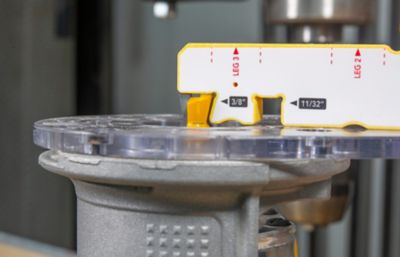

Create cleaner, stronger dovetail grooves with less sanding using the MATCHFIT Dovetail Router Bit. Its innovative rounded corners, down shear design, and precision depth control deliver unmatched performance. Built for safety, durability, and compatibility with all MATCHFIT hardware. Precision-Cut Dovetail Grooves with Minimal Effort The MATCHFIT Dovetail Router Bit features a standard 14°, 1/2" profile with enhanced rounded corners for faster, cleaner cuts. Designed specifically for MATCHFIT Dovetail Clamps and hardware, it delivers smooth grooves that require little to no sandingmaking your workflow more efficient than ever. Engineered for Strength and Cleanliness With an 8° down shear angle, this bit effectively channels chips and dust away, reducing friction and heat for cleaner results. A 1/32" bottom round over reinforces the groove's basecritical in plywood applications to prevent ply separation under clamping pressure. The 1/16" top round over eliminates tear-out while offering precision depth tolerance between .365" and .385". Smart Design for Safer, Smoother Operation A laser-cut " depth guide ensures accurate cuts with visual alignment. The wide base minimizes vibration and noise, enhancing control and cut quality. The router collet safety line indicates optimal insertion depth, and the extended shank maximizes grip, reducing vibration and the risk of ejection fitting all major routers with ease.
