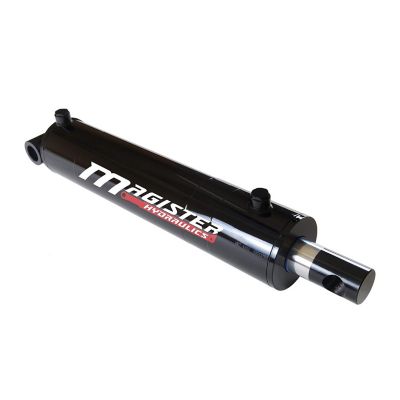

Magister Hydraulics 3 in. Bore x 20 in. Stroke Pin Eye Hydraulic Cylinder
Magister Hydraulics 3 in. Bore x 20 in. Stroke Pin Eye Hydraulic Cylinder
Item # 6015860
$309.99
Magister Hydraulics 3 in. Bore x 20 in. Stroke Pin Eye Hydraulic Cylinder
Item # 6015860
$309.99
Engineered for durability and high performance, the Magister Hydraulics Welded Pin Eye Hydraulic Cylinder has a 3-inch bore, a 20-inch stroke, and is rated to 3500 PSI. It includes a welded cross tube base end and a through-hole rod end for easy pin eye mounting, ensuring stable attachment in demanding environments. This ram is ideal for use in agriculture, construction, material handling, and lifting and pushing applications - offering a reliable, cost-effective alternative to OEM cylinders and built to withstand tough working conditions.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- - Extreme Load Capacity: Welded cross-tube base end, 3.37" honed cold-drawn tubing, 1.5" chrome-plated rod (steel 1045) with through-hole rod end for easy pin eye mounting and top-quality piston seals make it capable of handling heavy loads with a 20" stroke.
- - High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- - Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- 2-year warranty
- Same Day Free Shipping
- Made in Europe
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 48 in. |
| Hydraulic Cylinder Type | Welded Double Acting |
| Maximum Operating Pressure | 3500 PSI |
| Maximum Weight Capacity | 21200 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 8 SAE |
| Primary Material | Steel |
| Product Height | 5 in. |
| Product Length | 32 in. |
| Product Weight | 35 lb. |
| Product Width | 5 in. |
| Retracted Length | 28 in. |
| Rod Diameter | 1.5 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 20 in. |
| Warranty | 2 Years |
| Manufacturer Part Number | WPE 3x20 |
