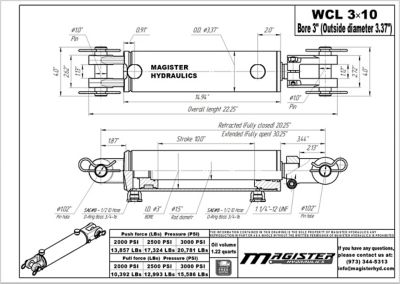

Magister Hydraulics 3 in. Bore x 10 in. Stroke Clevis Hydraulic Cylinder
Magister Hydraulics 3 in. Bore x 10 in. Stroke Clevis Hydraulic Cylinder
Item # 6015887
$274.99
Magister Hydraulics 3 in. Bore x 10 in. Stroke Clevis Hydraulic Cylinder
Item # 6015887
$274.99
Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3-inch bore and 10-inch stroke with clevis ends and 3500 PSI. This cylinder is a best option for heavy-duty hydraulics. Perfect fit to automotive hydraulic applications (vehicle lifts, dump trucks, towing and recovery), construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, combine harvesters, sprayers), forestry (tree harvesters, skidders), and mining equipment (drilling rigs, haul trucks).
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- - Extreme load capacity: Screw-on ductile iron clevis adjustable rod end, 3.37" honed cold-drawn tubing, 1.5" chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 10" stroke.
- - High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- - Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- 2-year warranty
- Same Day Free Shipping
- Made in Europe
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 30.25 in. |
| Hydraulic Cylinder Type | Welded Double Acting |
| Maximum Operating Pressure | 3500 PSI |
| Maximum Weight Capacity | 21200 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 8 SAE |
| Primary Material | Steel |
| Product Height | 5 in. |
| Product Length | 24 in. |
| Product Weight | 30 lb. |
| Product Width | 5 in. |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1.5 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 10 in. |
| Warranty | 2 Years |
| Manufacturer Part Number | WCL 3x10 |
