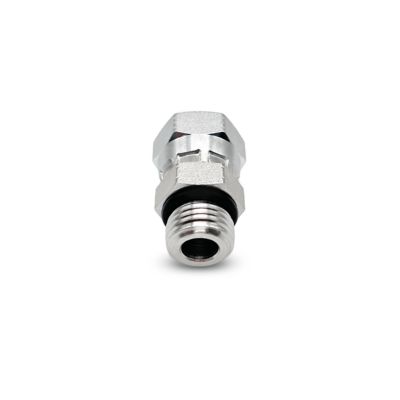

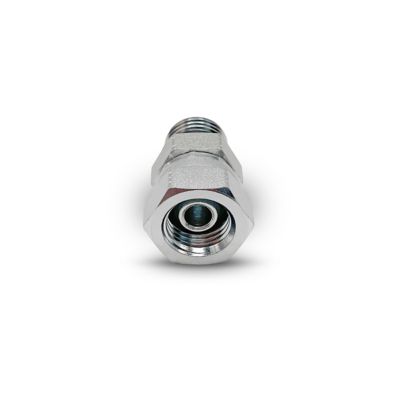

Magister Hydraulics 3/8 in. ORB Male x 1/4 in. NPT Female Straight SAE Hydraulic Adapter Swivel
Magister Hydraulics 3/8 in. ORB Male x 1/4 in. NPT Female Straight SAE Hydraulic Adapter Swivel
Item # 6111309
$5.99
Magister Hydraulics 3/8 in. ORB Male x 1/4 in. NPT Female Straight SAE Hydraulic Adapter Swivel
Item # 6111309
$5.99
3/8" ORB Male (9/16"-18) x 1/4" NPT Female (1/4"-18 NPT) Straight Hydraulic Adapter Swivel. SAE O-Ring Boss (ORB) Male x NPT Female Swivel hydraulic adapter designed for reliable connections in high-pressure hydraulic systems. This fitting allows secure conversion between ORB and NPT threaded components commonly used in industrial and mobile hydraulic applications.High-strength hydraulic adapter made from forged carbon steel with trivalent zinc plating for corrosion resistance. Suitable for SAE ORB, JIC and NPT hydraulic systems.
- - Maximum Pressure: 5000 PSI
- - Port A: 3/8" ORB Male
- - Port B: 1/4" NPT Female
- - Adapter Type: Straight
- - Plating: Zinc
- - Brand: Magister Hydraulics
- - Same-Day Shipping
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| End 1 Diameter | 3/8" ORB Male |
| End 2 Diameter | 1/4" NPT Female |
| Features | 3/8" ORB Male to 1/4" NPT Female; Straight; 5000 PSI max pressure; Zinc-plated steel |
| Hose Type | Hydraulic Hose |
| Maximum Operating Pressure | 5000 PSI |
| Maximum Temperature | 250 deg. F |
| Minimum Temperature | -40 deg. F |
| Model Compatibility | Universal |
| Primary Material | Carbon Steel |
| Product Height | 2 in. |
| Product Length | 8 in. |
| Product Weight | 2 lb. |
| Product Width | 2 in. |
| Manufacturer Part Number | HAS-06M-ORB-NPT-04F-S |
